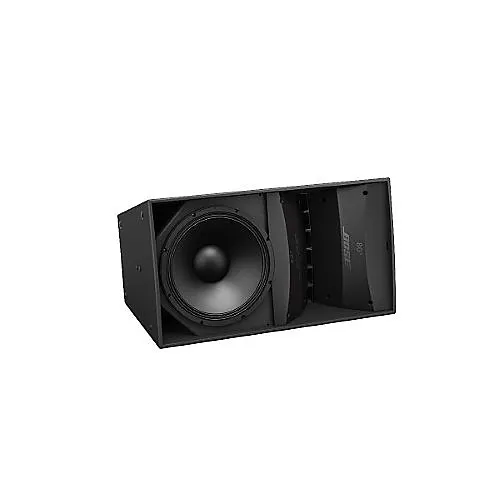

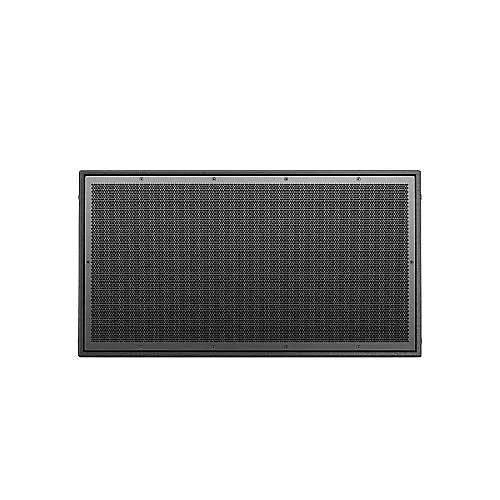

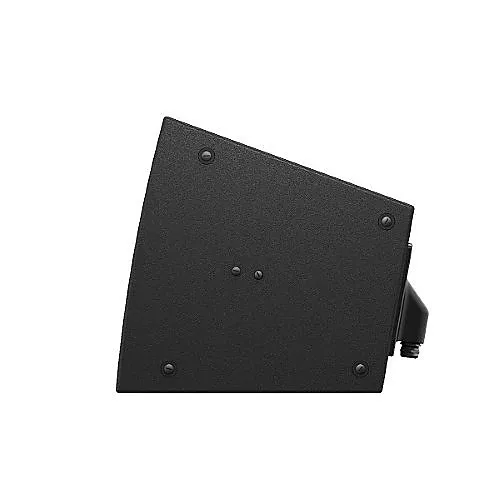

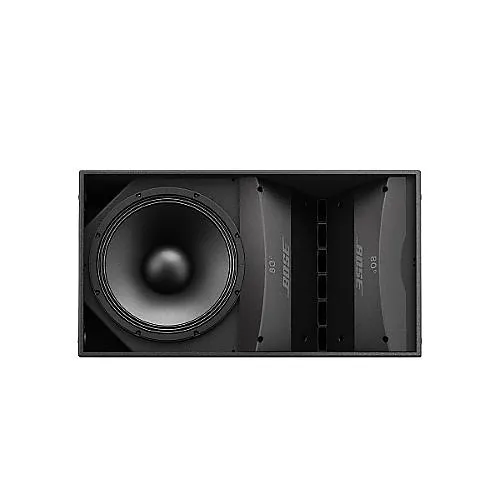

Bose Professional 794042-6660 Speaker, Arenamatch AM20/80 Outdoor Loudspeaker
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 5
Key Features
- Deliver consistent, intelligible coverage across large outdoor venues with DeltaQ array technology, improving announcements for security, monitoring, and crowd management teams.
- Reduce system weight and installation time by achieving full coverage with fewer modules using 10°, 20° and 40° vertical modules and interchangeable 60/80/100° waveguides.
- Weatherproof, direct-exposure construction (stainless-steel grille, urethane coating, water-resistant woofer) ensures reliable outdoor operation for stadiums, arenas, and surveillance/PA installations.
- High-SPL performance driven by a 14" neodymium woofer and six EMB2S titanium compression drivers with 750W RMS capability for long-throw music and crystal-clear speech up to 16 kHz.
- EN54-24 certified and flexible connectivity (bi-amp, passive crossover, 70/100V transformer) streamlines integration into fire alarm, voice-alarm and security public-address systems.
Quick Specifications
- Product Model
- AM20/80
- Brand Name
- Bose Professional
- Product Line
- ArenaMatch
- Product Name
- ArenaMatch AM20 DeltaQ Array Loudspeaker
Product Information Tabs
Overview
Bring clear, reliable sound to stadiums, arenas and outdoor security/PA applications with the Bose Professional ArenaMatch AM20/80 outdoor loudspeaker. Designed for long-throw music and mission-critical voice announcements, this pro speaker delivers precise coverage and improved vocal intelligibility so security, monitoring and crowd-control teams can communicate effectively across large audiences. The AM20/80 combines DeltaQ array technology with a 14" neodymium woofer and six EMB2S titanium-diaphragm drivers, offering 750W RMS capability and a usable frequency range from roughly 65 Hz to 16 kHz for punchy lows and articulate highs. Replaceable horizontal waveguides and multiple vertical modules let system designers shape coverage to venue geometry—reducing the number of cabinets required and lowering overall project cost. Built for direct-exposure outdoor use, the enclosure features a three-layer stainless-steel grille, water-resistant woofer coating and industrial polyurethane finish; it’s also EN54-24 certified for voice-alarm integration. Ideal for pro audio, security public-address, surveillance monitoring and emergency notification systems, the ArenaMatch AM20/80 integrates with PowerMatch amplifiers and ControlSpace DSP for turnkey deployments. Contact your sales rep to spec the AM20/80 for your next stadium, arena or outdoor security PA project.
Features
- Deliver consistent, intelligible coverage across large outdoor venues with DeltaQ array technology, improving announcements for security, monitoring, and crowd management teams.
- Reduce system weight and installation time by achieving full coverage with fewer modules using 10°, 20° and 40° vertical modules and interchangeable 60/80/100° waveguides.
- Weatherproof, direct-exposure construction (stainless-steel grille, urethane coating, water-resistant woofer) ensures reliable outdoor operation for stadiums, arenas, and surveillance/PA installations.
- High-SPL performance driven by a 14" neodymium woofer and six EMB2S titanium compression drivers with 750W RMS capability for long-throw music and crystal-clear speech up to 16 kHz.
- EN54-24 certified and flexible connectivity (bi-amp, passive crossover, 70/100V transformer) streamlines integration into fire alarm, voice-alarm and security public-address systems.
| General Information | |
|---|---|
| Brand Name | Bose Professional |
| Manufacturer | Bose Corporation |
| Product Line | ArenaMatch |
| Product Name | ArenaMatch AM20 DeltaQ Array Loudspeaker |
| Product Type | Speaker |
| Product Model | AM20/80 |
| Product Series | AM |
| Manufacturer Part Number | 794042-6660 |
| Technical Information | |
| Material | Neodymium |
| Impedance | 8 ohms |
| Sensitivity | 98dB |
| Crossover Type | 2-way |
| Application/Usage | Alarm, Arena, Entertainment Center, Fire Alarm, Stadium |
| Audio | |
| RMS Output Power | 750W |
| Maximum Frequency Response | 16 kHz |
| Minimum Frequency Response | 65Hz |
| Physical Characteristics | |
| Size | 14" |
| Color | Black |
| Depth | 16.38" |
| Width | 30.8" |
| Height | 17.2" |
| Weight | 79.81lb |
| Durability | Water Resistant |
| Miscellaneous | |
| Features | Adapt to a variety of configurations � all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs, Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers, Easily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays, EN 54-24 certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics, Improve sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or Q, to vary in each module to more precisely match coverage to audience area, Provide full coverage with fewer modules � 10 deg, 20 deg, and 40 deg modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays, Rated for direct-exposure outdoor installations, three-layer stainless steel grille, woofer cone coating, industrial polyurethane exterior coating, and molded input cover, Reduce commissioning time by using 40 deg modules for point-source applications and 10 deg, 20 deg and 40 deg modules for line arrays all with the same transducers for consistent tonal balance, Save time during installation using Bose Professional accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames, Streamline the design process by combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSP |
| Indoor/Outdoor | Outdoor |
