Bose Professional DesignMax DM8C In-Ceiling Speaker, 150W, White
Key Features
- High output for demanding spaces: 150W RMS delivers clear, high-SPL audio for ballrooms, concourses, and large retail or hospitality areas.

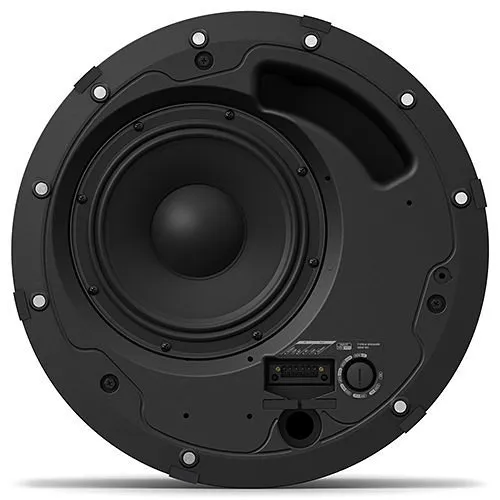

- Superior clarity and speech intelligibility: coaxial two-way design (8-inch woofer with a center 1-inch compression driver) produces balanced lows and articulate highs without heavy DSP.

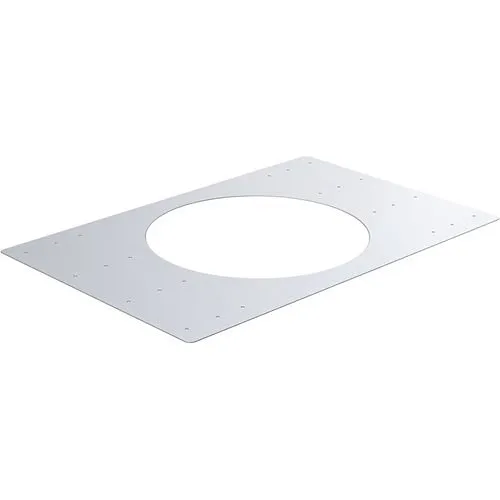

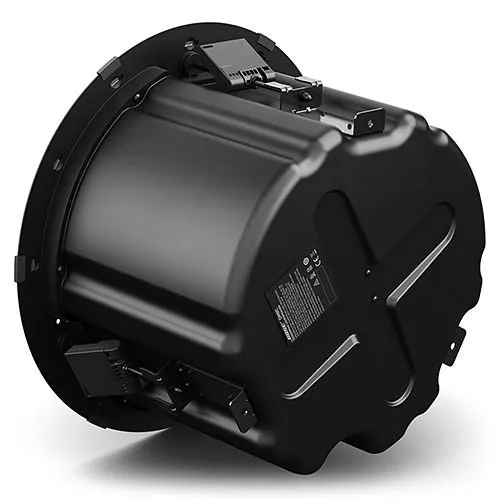

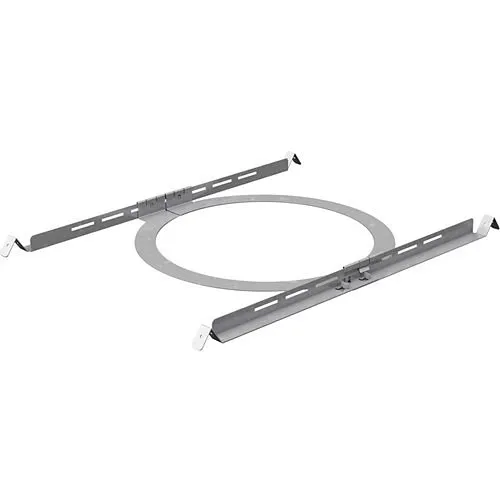

- Faster, safer installations: patented QuickHold mounting, plenum-rated backcan and included tile bridges reduce labor time and on-site troubleshooting.
- System-ready flexibility: works with Bose DSPs and amplifiers to enable loudspeaker EQ and SmartBass for consistent performance at any volume.
- Discreet, commercial aesthetics: minimal-bezel grille, removable logo and white or black options blend with modern interiors and security/AV installations.
- Installer-friendly connections: Euroblock terminals and front-access wiring simplify integration into paging, monitoring, and security audio systems.
Quick Specifications
- Product Model
- DM8C
- Brand Name
- Bose Professional
- Product Line
- DesignMax
- Product Name
- DesignMax DM8C In-ceiling Loudspeaker
Product Information Tabs
Overview
Built for reliable, high-impact audio in commercial and security-conscious environments, the Bose Professional DesignMax DM8C in-ceiling speaker delivers room-filling sound and clear speech for foreground music, paging and monitoring applications. The DM8C pairs a powerful 150W RMS amplifier capacity with an 8-inch woofer and a center-mounted 1-inch compression driver to reproduce a broad frequency range (down to the low 50s Hz up to 20 kHz) with 91 dB sensitivity — ensuring intelligible announcements and musical detail in large venues. Installers benefit from the patented QuickHold mounting system, plenum-rated backcan, Euroblock connectors and tile bridges that cut installation time and simplify service. For projects that demand tuned performance, integrate with Bose DSPs and amplifiers to apply loudspeaker EQ and SmartBass processing. The low-profile grille and removable logo keep aesthetics clean for hotels, retail, convention centers, and combined AV/security or surveillance systems. Specify the Bose DesignMax DM8C for dependable, professional in-ceiling audio — ideal for paging, background music, and security monitoring; order or request a site quote today.
Features
- High output for demanding spaces: 150W RMS delivers clear, high-SPL audio for ballrooms, concourses, and large retail or hospitality areas.
- Superior clarity and speech intelligibility: coaxial two-way design (8-inch woofer with a center 1-inch compression driver) produces balanced lows and articulate highs without heavy DSP.
- Faster, safer installations: patented QuickHold mounting, plenum-rated backcan and included tile bridges reduce labor time and on-site troubleshooting.
- System-ready flexibility: works with Bose DSPs and amplifiers to enable loudspeaker EQ and SmartBass for consistent performance at any volume.
- Discreet, commercial aesthetics: minimal-bezel grille, removable logo and white or black options blend with modern interiors and security/AV installations.
- Installer-friendly connections: Euroblock terminals and front-access wiring simplify integration into paging, monitoring, and security audio systems.
| General Information | |
|---|---|
| Brand Name | Bose Professional |
| Manufacturer | Bose Corporation |
| Product Line | DesignMax |
| Product Name | DesignMax DM8C In-ceiling Loudspeaker |
| Product Type | Speaker |
| Product Model | DM8C |
| Product Series | DM |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 802080-0210 |
| Technical Information | |
| Impedance | 8 ohms |
| Sensitivity | 91dB |
| Speaker Size | 8" |
| Crossover Type | 2-way |
| Application/Usage | Ballroom, Concourse, Convention Center, Indoor |
| Audio | |
| RMS Output Power | 150W |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 60Hz |
| Physical Characteristics | |
| Size | 8" |
| Color | White |
| Depth | 10.04" |
| Width | 17.64" |
| Height | 15.35" |
| Weight | 21.16lb |
| Product Information | |
| Length | 17.63" |
| Diameter | 16.1" |
| Mount Type | In-ceiling Mount |
| Miscellaneous | |
| Features | Blend with any room design, Deliver rich lows and clear, intelligible highs with coaxial two-way drivers, Reduce installation time |
| Indoor/Outdoor | Indoor |
| Country of Origin | CN |
