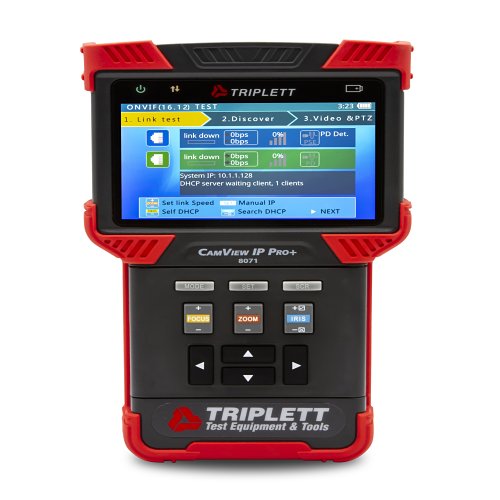

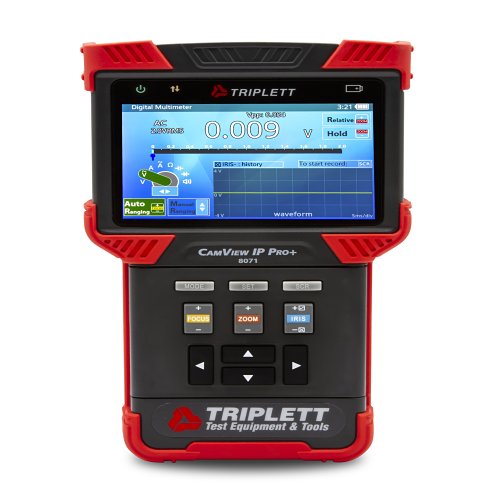

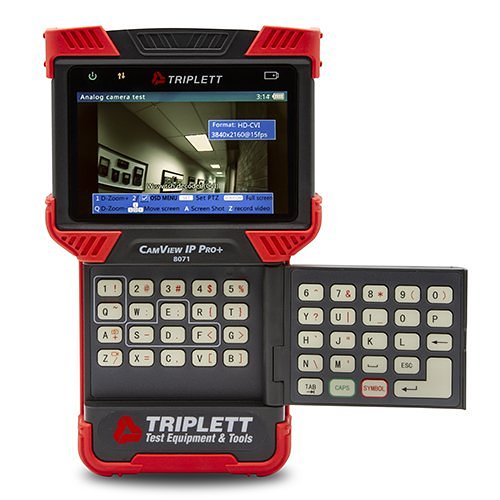

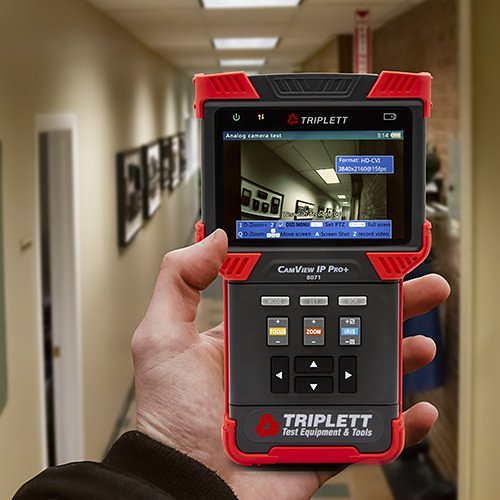

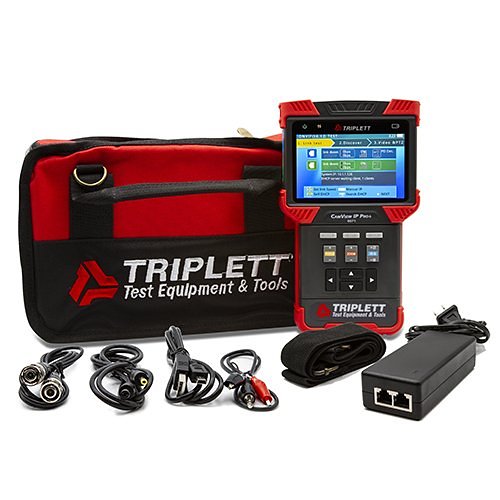

Triplett 8071 Camview IP Pro+ IP and Analog CCTV Tester Meter
Image of 9
Key Features
- Speeds on-site camera deployment by powering IP cameras with PoE or analog cameras with 12V DC, enabling instant verification and configuration
- Works with both H.265 IP and HD/analog formats (AHD, HD-TVI, HD-CVI, NTSC/PAL) so you can test mixed surveillance systems with one tool
- Built-in RS485 PTZ control and video test patterns let technicians position, focus and validate cameras quickly for reliable monitoring
- Capture snapshots and record video locally for documentation and evidence transfer via USB — ideal for job reporting and troubleshooting
- Gigabit Ethernet with 2 RJ-45 ports and network/loopback testing tools simplify IP network diagnostics and PoE verification on-site
- Portable Li‑Ion powered design keeps technicians working longer in the field and reduces trips back to the shop
Quick Specifications
- Product Model
- 8071
- Brand Name
- Triplett
- Product Line
- CamView IP Pro+
- Product Name
- CamView IP Pro+ CCTV Test Meter
Explore the details
Product information
8071
Overview
Designed for security installers and system integrators, the Triplett CamView IP Pro+ CCTV Test Meter streamlines installation, troubleshooting and maintenance of both IP and analog surveillance systems. This handheld IP and analog camera tester supports H.265 IP cameras and HD/analog formats (AHD, HD-TVI, HD-CVI, NTSC/PAL) while providing PoE output or 12V DC (up to 2A) to power devices on the fly. Two Gigabit Ethernet (RJ-45) ports and network/loopback testing tools let you verify cabling, switches and PoE delivery before finalizing deployments.

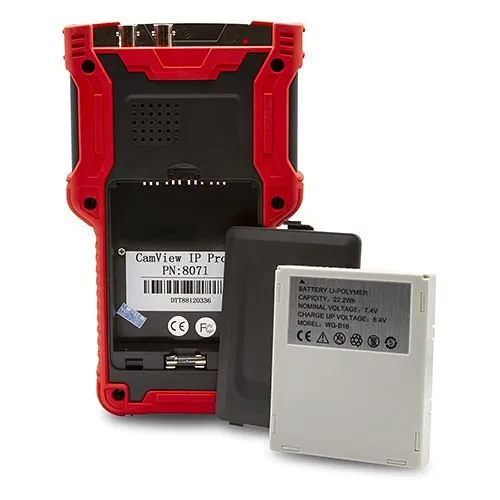

Field-focused features include RS485 PTZ control, on-device snapshot and video recording for evidence capture, video test patterns for monitor calibration, and a rechargeable 7.4V Li‑Ion battery for extended use. The CamView IP Pro+ reduces truck rolls and speeds up commissioning of CCTV and monitoring systems by consolidating camera, audio and network diagnostics into one portable meter. Backed by Triplett quality and a 1-year limited warranty, it’s built to handle real-world surveillance installs. Add the Triplett CamView IP Pro+ to your toolkit today.
Features
- Speeds on-site camera deployment by powering IP cameras with PoE or analog cameras with 12V DC, enabling instant verification and configuration
- Works with both H.265 IP and HD/analog formats (AHD, HD-TVI, HD-CVI, NTSC/PAL) so you can test mixed surveillance systems with one tool
- Built-in RS485 PTZ control and video test patterns let technicians position, focus and validate cameras quickly for reliable monitoring
- Capture snapshots and record video locally for documentation and evidence transfer via USB — ideal for job reporting and troubleshooting
- Gigabit Ethernet with 2 RJ-45 ports and network/loopback testing tools simplify IP network diagnostics and PoE verification on-site
- Portable Li‑Ion powered design keeps technicians working longer in the field and reduces trips back to the shop
| General Information | |
|---|---|
| Brand Name | Triplett |
| Manufacturer | Jewell Instruments |
| Product Line | CamView IP Pro+ |
| Product Name | CamView IP Pro+ CCTV Test Meter |
| Product Type | CCTV Test Meter |
| Product Model | 8071 |
| Application/Usage | Analog Camera Testing, Audio Signal Testing, Cable Testing, Camera Testing, IP Camera Testing, Loopback Testing, Network Testing, Network Troubleshoot, PoE Testing, PTZ Control, TDR Cable Testing, Test Pattern, Video Testing |
| Country of Origin | CN |
| Manufacturer Part Number | 8071 |
| Technical Information | |
| Media Type Supported | Twisted Pair |
| Battery Information | |
| Battery Chemistry | Lithium-Ion (Li-ion) |
| Battery Rechargeable | Yes |
| Battery Size Supported | Proprietary Battery Pack |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Network & Communication | |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Physical Characteristics | |
| Depth | 1.5" |
| Width | 4.4" |
| Height | 7.5" |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | 8070 |
| Remote Control | |
| Battery Included | Yes |
| Warranty | |
| Limited Warranty | 1-Year |
