Bose Professional 829679-0220 DesignMax DM6C Ceiling Mount 2-Way Coaxial Loudspeakers, 6.5", Pair, White

SKU: 829679-0220 Bose Professional
Image of 1B-829679022

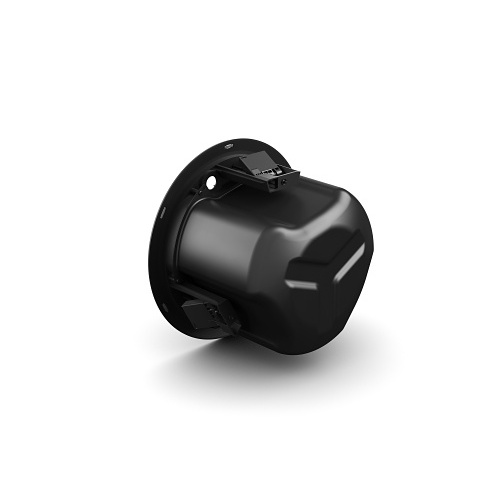

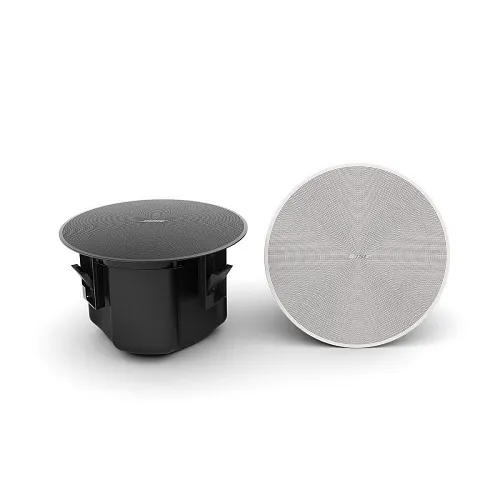

Product images for Bose Professional 829679-0220 DesignMax DM6C Ceiling Mount 2-Way Coaxial Loudspeakers, 6.5", Pair, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Consistent, intelligible coverage for paging and background music thanks to Dispersion Alignment that matches woofer and tweeter patterns
  • Powerful, balanced sound from coaxial two-way drivers with a 6.5-inch woofer and 1.25-inch tweeter—125W RMS for clear speech and full-range music
  • QuickHold in-ceiling mounting and included plenum-rated backcan reduce install time and risk of damage on commercial or security installs
  • Low-profile aesthetic with removable logo and white grille to blend into corporate, retail, or hospitality environments
  • Robust integration options: Euroblock connectors and compatibility with Bose Professional DSPs and amps for advanced EQ, SmartBass, and monitoring applications

Quick Specifications

Brand Name
Bose Professional
Product Line
DesignMax
Product Name
DesignMax DM6C loudspeakers (1 pair)
Product Type
Loudspeaker
View Full Technical Specifications

Product Information Tabs

Overview

Deliver clear, reliable audio for commercial, retail and security environments with the Bose Professional DesignMax DM6C in-ceiling loudspeaker pair. Engineered for intelligible voice paging, background music and AV/monitoring applications, the DM6C combines a 6.5-inch woofer and 1.25-inch coaxial tweeter in a Dispersion Alignment system to provide consistent coverage across the room. With 125W RMS power and a 59 Hz–20 kHz frequency range, it reproduces full-bodied lows and detailed highs without the need for heavy DSP, yet it integrates seamlessly with Bose Professional DSPs and amplifiers for advanced EQ and SmartBass control. Install faster and safer using the patented QuickHold mounting arms, plenum-rated backcan, and front-access audio wiring—features that save labour on large deployments and simplify troubleshooting for security, surveillance or facility monitoring systems. The subtle white, minimum-bezel grille and removable logo keep the aesthetic clean in corporate, retail or hospitality spaces. Specify the DM6C pair for your next pro audio, security paging, or AV installation and experience dependable, room-filling sound—order or request a quote today.

Features

  • Consistent, intelligible coverage for paging and background music thanks to Dispersion Alignment that matches woofer and tweeter patterns
  • Powerful, balanced sound from coaxial two-way drivers with a 6.5-inch woofer and 1.25-inch tweeter—125W RMS for clear speech and full-range music
  • QuickHold in-ceiling mounting and included plenum-rated backcan reduce install time and risk of damage on commercial or security installs
  • Low-profile aesthetic with removable logo and white grille to blend into corporate, retail, or hospitality environments
  • Robust integration options: Euroblock connectors and compatibility with Bose Professional DSPs and amps for advanced EQ, SmartBass, and monitoring applications
General Information
Brand Name Bose Professional
Product Line DesignMax
Product Name DesignMax DM6C loudspeakers (1 pair)
Product Type Loudspeaker
Product Model DM6C
Product Series DM
Manufacturer Part Number 829679-0220
Audio
RMS Output Power 125W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 59Hz
Others
Model Number Replaces 829679-0210
Physical Characteristics
Color White
Depth 9.4"
Miscellaneous
Indoor/Outdoor Indoor
