Bose Professional Sub2 L1 PRO Series Powered Portable Bass Module

SKU: 840917-1100 Bose Professional
Bose Professional 840917-1100 Sub2 L1 PRO Series Powered Portable Bass Module
Product images for Bose Professional Sub2 L1 PRO Series Powered Portable Bass Module. 8 image(s) available. Click on image to view full size.

Key Features

  • Adds deep, controlled bass down to 37 Hz with 1000W RMS, giving audiences body‑shaking low end without overpowering the venue
  • Ultra‑slim RaceTrack driver delivers 15"-class performance in a compact enclosure for easy transport and more stage/vehicle space

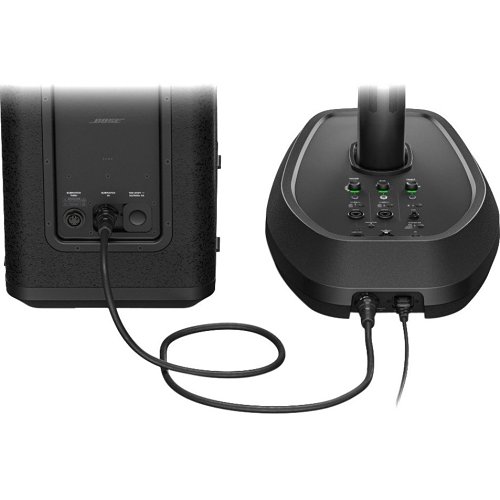

  • SubMatch single‑cable connectivity powers and delivers audio to Bose L1 Pro systems for faster, cleaner setup

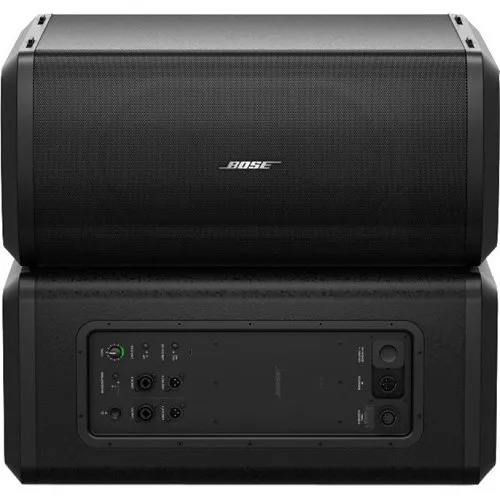

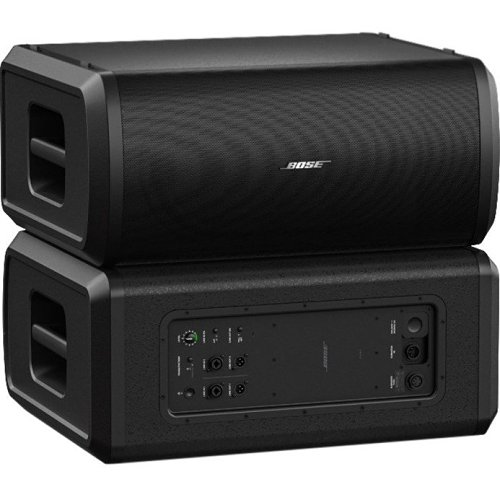

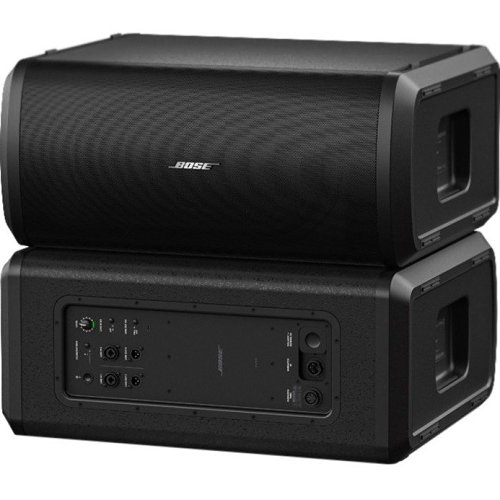

  • Stackable design and Cardioid Mode let you focus bass to the front of the stage and reduce rear-stage rumble and feedback
  • Versatile line I/O and integrated pole mount let you pair with other powered loudspeakers or use as a portable fill for AV, security, surveillance, and monitoring environments
  • Robust portable build and 2‑year limited warranty provide reliable pro performance show after show

Quick Specifications

Product Model
SUB2
Brand Name
Bose Professional
Product Line
Portable
Product Name
SUB2 Powered Bass Module
View Full Technical Specifications

Explore the details

Product information

840917-1100

Overview

Deliver powerful, tight low end wherever you need it — onstage, in a club, or in a control room. The Bose Professional Sub2 L1 PRO Series Powered Portable Bass Module puts 1000W RMS of punchy, controlled bass into a slim, road‑ready enclosure that extends low frequency response down to 37 Hz. Its unique 10" × 18" neodymium RaceTrack driver produces 15"-class output from a smaller footprint, freeing up vehicle and stage space while maintaining impact. SubMatch single‑cable connectivity lets Sub2 combine seamlessly with Bose L1 Pro32 systems, simplifying setup by carrying power and audio over one cable, while selectable line I/O and stacked operation give you flexible system integration. Engage Cardioid Mode to steer bass forward and reduce rear-stage energy — ideal for live sound, corporate AV, and even security, surveillance and monitoring control rooms where directional low end and intelligibility matter. Rugged, portable and easy to configure, the Sub2 is designed to fill dance floors and tighten low end for pro installations. Add a Sub2 to your system for immediate low‑frequency authority and streamlined setup.

Features

  • Adds deep, controlled bass down to 37 Hz with 1000W RMS, giving audiences body‑shaking low end without overpowering the venue
  • Ultra‑slim RaceTrack driver delivers 15"-class performance in a compact enclosure for easy transport and more stage/vehicle space
  • SubMatch single‑cable connectivity powers and delivers audio to Bose L1 Pro systems for faster, cleaner setup
  • Stackable design and Cardioid Mode let you focus bass to the front of the stage and reduce rear-stage rumble and feedback
  • Versatile line I/O and integrated pole mount let you pair with other powered loudspeakers or use as a portable fill for AV, security, surveillance, and monitoring environments
  • Robust portable build and 2‑year limited warranty provide reliable pro performance show after show
24 of 24 specifications
Technical specifications for Bose Professional Sub2 L1 PRO Series Powered Portable Bass Module
General Information
Brand Name Bose Professional
Manufacturer Bose Corporation
Product Line Portable
Product Name SUB2 Powered Bass Module
Product Type Woofer
Product Model SUB2
Product Series L1
Manufacturer Part Number 840917-1100
Technical Information
Sensitivity 130dB
Application/Usage Stage
Audio
Subwoofer Type Active
RMS Output Power 1000W
Maximum Frequency Response 180 Hz
Minimum Frequency Response 37Hz
Physical Characteristics
Color Black
Depth 21.7"
Width 12.5"
Height 27.3"
Weight 50.71lb
Form Factor Pole Mount
Product Information
Length 15.35"
Mount Type Pole Mount
Warranty
Limited Warranty 2-Year
Miscellaneous
Country of Origin CN
