Bose Professional 843161-0110 AMM112 Multipurpose Loudspeaker

SKU: 843161-0110 Bose Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of 1B-843161011

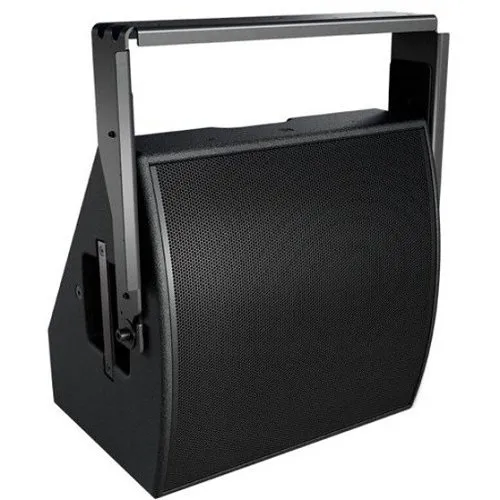

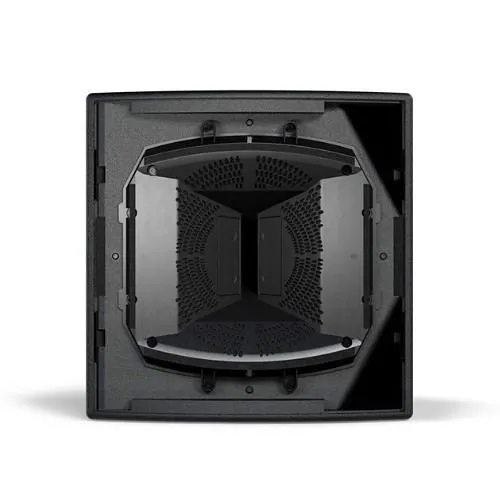

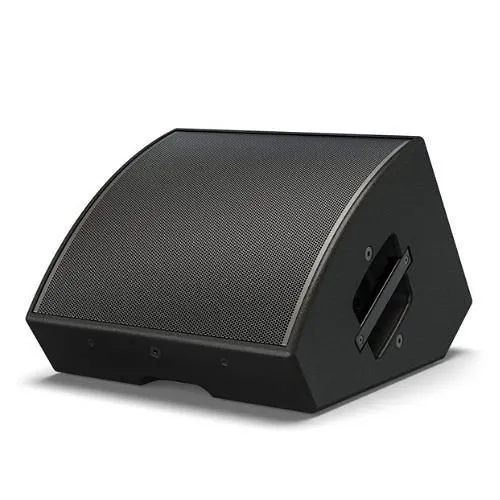

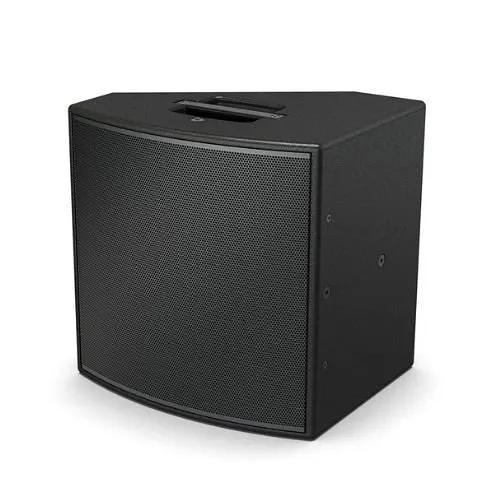

Product images for Bose Professional 843161-0110 AMM112 Multipurpose Loudspeaker. 5 image(s) available. Click on image to view full size.

Key Features

  • High-output, consistent coverage for clear vocals and music across medium-throw venues — 131 dB peak ensures reliable front-of-house and monitor performance.
  • Coaxial two-way design with 12-inch low-frequency transducer and 3-inch compression driver delivers tight bass and articulate highs for superior speech intelligibility in PA, security paging and monitoring.
  • Multi-position cabinet with 110° x 60° coverage lets integrators quickly switch horizontal/vertical coverage without tools, reducing setup time and complexity.
  • Lightweight Baltic birch enclosure with ergonomic handles and 35 mm pole adapter simplifies transport, rigging and temporary installations.
  • System-ready voicing for Bose AM arrays plus compatibility with PowerMatch amplifiers and ControlSpace DSP speeds commissioning and ensures protection under demanding loads.

Quick Specifications

Product Model
AMM112
Brand Name
Bose Professional
Product Line
Utility
Product Name
AMM112 Multipurpose Loudspeaker
View Full Technical Specifications

Product Information Tabs

Overview

For pro AV integrators and event teams that need reliable, punchy sound with excellent clarity, the Bose Professional AMM112 multipurpose loudspeaker delivers studio-quality projection and speech intelligibility across a variety of applications. This compact, passive coaxial two-way speaker combines a 12-inch low-frequency transducer and a 3-inch compression driver to produce up to 131 dB peak output and 300 W RMS power handling — ideal for front-of-house, stage monitor, fill and delay uses. Proprietary Beamwidth Matching Waveguide maintains consistent tonal balance across the 110° x 60° coverage area so vocals and announcements remain clear in conference, retail, and security paging environments. The rugged Baltic birch enclosure is lightweight for its output, includes ergonomic handles, a 35 mm pole adapter and multiple M10 suspension points for fast permanent or portable installs. Integrators will appreciate consistent voicing with other Bose AM modules and seamless integration with PowerMatch amps and ControlSpace DSP for system tuning and loudspeaker protection. Use the AMM112 for live sound, public address, security and surveillance command centers, or any monitoring application requiring predictable, high-impact audio performance — contact us to spec it into your next project.

Features

  • High-output, consistent coverage for clear vocals and music across medium-throw venues — 131 dB peak ensures reliable front-of-house and monitor performance.
  • Coaxial two-way design with 12-inch low-frequency transducer and 3-inch compression driver delivers tight bass and articulate highs for superior speech intelligibility in PA, security paging and monitoring.
  • Multi-position cabinet with 110° x 60° coverage lets integrators quickly switch horizontal/vertical coverage without tools, reducing setup time and complexity.
  • Lightweight Baltic birch enclosure with ergonomic handles and 35 mm pole adapter simplifies transport, rigging and temporary installations.
  • System-ready voicing for Bose AM arrays plus compatibility with PowerMatch amplifiers and ControlSpace DSP speeds commissioning and ensures protection under demanding loads.
General Information
Brand Name Bose Professional
Manufacturer Bose Corporation
Product Line Utility
Product Name AMM112 Multipurpose Loudspeaker
Product Type Speaker
Product Model AMM112
Product Series AMM
Manufacturer Part Number 843161-0110
Technical Information
Material Baltic Birch Plywood
Impedance 8 ohms
Sensitivity 96dB
Crossover Type 2-way
Wireless Speaker No
Audio
RMS Output Power 300W
Maximum Frequency Response 18 kHz
Minimum Frequency Response 70Hz
Environmental Conditions
Sound Emission 130 dB, 131 dB
Physical Characteristics
Size 12.01"
Color Black
Depth 15.08"
Width 18"
Height 18"
Weight 48.59lb
Product Information
Mount Type Pole Mount
Miscellaneous
Features Lightweight
