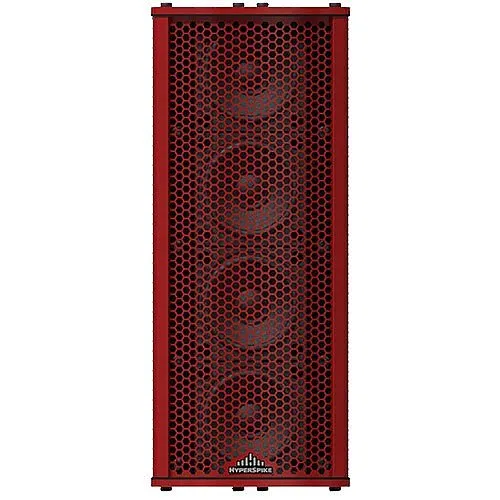

System Sensor 90243A-802-05-L HyperSpike LineWave 4-Speaker Array, UL1480, 40W, Red
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Clear, intelligible voice alerts that cut through high ambient noise to improve emergency response and routine paging
- Focused beam-forming audio directs sound where it’s needed, reducing echoes and false alarms in large or reflective spaces
- UL1480-rated 4-speaker line array built for indoor/outdoor security and surveillance installations with weather-resistant reliability
- Flexible integration with 40W output and configurable line/low-impedance options for easy connection to common fire, voice evac, and paging systems
- Compact, lightweight design simplifies mounting and deployment across monitoring sites, perimeters, and public areas
Quick Specifications
- Product Model
- 90243A-802
- Brand Name
- System Sensor
- Product Line
- HyperSpike
- Product Name
- LineWave UL1480 Full-Range Line Array Loudspeaker
Product Information Tabs
Overview
Designed to deliver unmistakable voice communication where it matters most, the System Sensor HyperSpike LineWave 4-Speaker Array enhances security, surveillance and monitoring systems with industry-leading clarity. This UL1480-rated speaker array produces up to 123 dB SPL and a dependable 40W RMS output, ensuring evacuation announcements and live paging are heard and understood in noisy, crowded, or reverberant environments. Advanced beam-forming technology concentrates sound toward target zones to minimize reflections and background interference, improving voice intelligibility for guards, operators, and occupants. Built for both indoor and outdoor deployments, the weather-resistant HyperSpike LineWave integrates easily with fire alarm, public address, and security networks using configurable power options and low-impedance compatibility. Its compact footprint and rugged construction reduce installation time while maintaining long-term performance in harsh conditions. Ideal for campuses, transit hubs, industrial sites, and critical infrastructure, this System Sensor speaker array upgrades your monitoring and alerting capabilities. Contact sales or add to your next security specification to ensure clear, actionable audio across your facility.
Features
- Clear, intelligible voice alerts that cut through high ambient noise to improve emergency response and routine paging
- Focused beam-forming audio directs sound where it’s needed, reducing echoes and false alarms in large or reflective spaces
- UL1480-rated 4-speaker line array built for indoor/outdoor security and surveillance installations with weather-resistant reliability
- Flexible integration with 40W output and configurable line/low-impedance options for easy connection to common fire, voice evac, and paging systems
- Compact, lightweight design simplifies mounting and deployment across monitoring sites, perimeters, and public areas
| General Information | |
|---|---|
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Product Line | HyperSpike |
| Product Name | LineWave UL1480 Full-Range Line Array Loudspeaker |
| Product Type | Speaker |
| Product Model | 90243A-802 |
| Product Series | LineWave |
| Manufacturer Part Number | 90243A-802-05-L |
| Technical Information | |
| Impedance | 16 ohms |
| Sensitivity | 91dB |
| Application/Usage | Paging, Voice |
| Audio | |
| RMS Output Power | 40W |
| Maximum Frequency Response | 15 kHz |
| Minimum Frequency Response | 250Hz |
| Environmental Conditions | |
| Sound Emission | 123 dB |
| Physical Characteristics | |
| Color | Red |
| Depth | 2.9" |
| Width | 4.9" |
| Height | 12.3" |
| Weight | 4.30 lb |
| Durability | Weather Resistant |
| Power Description | |
| Input Voltage | 100V DC |
| Miscellaneous | |
| Indoor/Outdoor | Indoor, Outdoor |
| Country of Origin | US |
