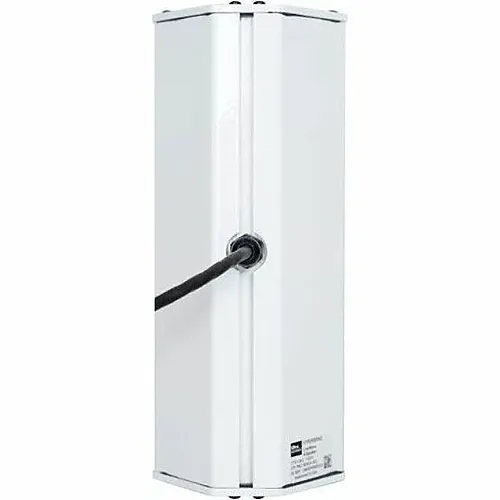

System Sensor 90243A-802-06-L HyperSpike LineWave 4-Speaker Array, UL1480, 40W, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Delivers clear, intelligible voice paging for security and surveillance environments, ensuring critical messages are heard over background noise
- Beam‑forming design provides consistent coverage and reduced reflections for uniform audio across large areas
- 40W RMS power and up to 123 dB SPL for reliable reach in both indoor and outdoor applications
- UL1480 compliance and rugged, weather‑resistant construction for dependable performance in monitored sites
- Flexible integration with 25V / 70V / 100V systems and 16Ω compatibility for easy retrofit into existing sound infrastructure
- Compact, lightweight form factor simplifies mounting and deployment in perimeter, facility, and public‑address systems
Quick Specifications
- Product Model
- 90243A-802
- Brand Name
- System Sensor
- Product Line
- HyperSpike
- Product Name
- LineWave UL1480 Full-Range Line Array Loudspeaker
Product Information Tabs
Overview
Optimize site communications with the System Sensor HyperSpike LineWave 4‑Speaker Array — a purpose‑built speaker for security, surveillance and monitoring applications. This full‑range System Sensor speaker delivers 40W RMS power and a maximum 123 dB SPL to ensure voice announcements and alerts cut through high ambient noise for fast, actionable response. Advanced beam‑forming technology produces even coverage and minimizes echo and reflections, improving intelligibility for paging, voice evacuation and remote monitoring. Built to UL1480 standards and engineered with weather‑resistant materials, the LineWave array offers reliable performance in indoor and outdoor deployments, from parking garages and transit hubs to perimeter security and industrial sites. Integration is straightforward with multi‑tap support for 25V, 70V and 100V systems and a compact profile that eases installation. Specify the System Sensor LineWave speaker array to upgrade your facility’s audio clarity and compliance — contact our sales team to discuss deployment or add it to your next security project.
Features
- Delivers clear, intelligible voice paging for security and surveillance environments, ensuring critical messages are heard over background noise
- Beam‑forming design provides consistent coverage and reduced reflections for uniform audio across large areas
- 40W RMS power and up to 123 dB SPL for reliable reach in both indoor and outdoor applications
- UL1480 compliance and rugged, weather‑resistant construction for dependable performance in monitored sites
- Flexible integration with 25V / 70V / 100V systems and 16Ω compatibility for easy retrofit into existing sound infrastructure
- Compact, lightweight form factor simplifies mounting and deployment in perimeter, facility, and public‑address systems
| General Information | |
|---|---|
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Product Line | HyperSpike |
| Product Name | LineWave UL1480 Full-Range Line Array Loudspeaker |
| Product Type | Speaker |
| Product Model | 90243A-802 |
| Product Series | LineWave |
| Manufacturer Part Number | 90243A-802-06-L |
| Technical Information | |
| Impedance | 16 ohms |
| Sensitivity | 91dB |
| Application/Usage | Paging, Voice |
| Audio | |
| RMS Output Power | 40W |
| Maximum Frequency Response | 15 kHz |
| Minimum Frequency Response | 250Hz |
| Environmental Conditions | |
| Sound Emission | 123 dB |
| Physical Characteristics | |
| Color | White |
| Depth | 2.9" |
| Width | 4.9" |
| Height | 12.3" |
| Weight | 4.30 lb |
| Durability | Weather Resistant |
| Power Description | |
| Input Voltage | 100V DC |
| Miscellaneous | |
| Indoor/Outdoor | Indoor, Outdoor |
| Country of Origin | US |
