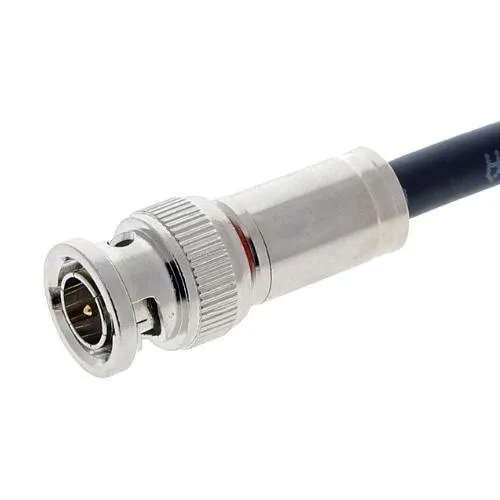

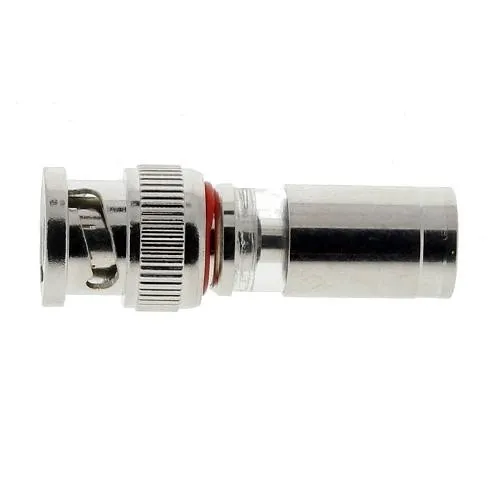

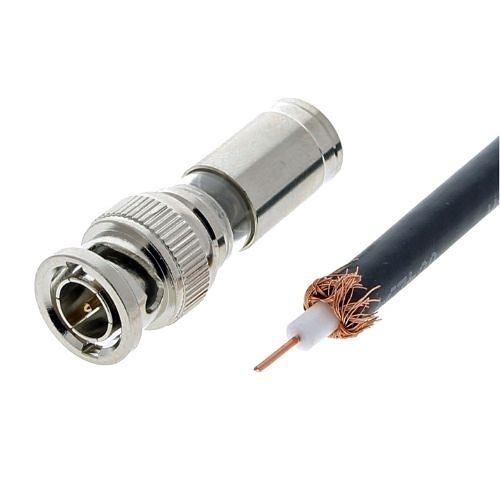

IDEAL 92-810P BNC RG59 Insite CCTV Broadband Compression Connector, 25-Pack
Image of 5
Key Features
- Faster, error-free terminations with InSITE 360° window that lets installers verify full cable insertion before compression
- Reduces rework and wasted parts by preventing collapsed center pins and misaligned terminations
- Optimized funnel pin entry and lower insertion force for quicker blind-entry installs on RG-59 coax
- Reliable signal performance for security and surveillance systems with 75 ohm impedance and up to 3 GHz frequency range
- Value 25-pack for consistent, on-site supply—ideal for CCTV, monitoring and video network projects
Quick Specifications
- Product Model
- 92-810P
- Brand Name
- IDEAL Industries
- Product Line
- DataCom
- Product Name
- Video Connector
Explore the details
Product information
92-810P
Overview

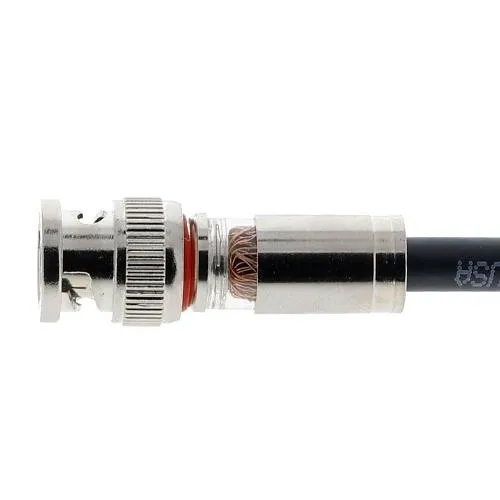

Speed up CCTV and security terminations with the IDEAL Industries 92-810P BNC RG59 InSITE compression connector. Designed for professional installers, this BNC video connector removes guesswork from blind-entry terminations using the patented InSITE 360° clear window to confirm proper cable insertion before compression. That visibility — plus a funneled pin entry and lower insertion force — cuts installation time and eliminates costly rework on RG-59 coax.
Built for high-performance video and surveillance applications, the connector delivers 75 ohm impedance and broadband capability to 3 GHz, supporting CCTV, HD video and monitoring networks. Nickel-plated brass construction and acceptance of 23–18 AWG solid center conductors ensure durable, consistent connections in both indoor and commercial installations. Packaged in a 25-count kit, these compression connectors keep crews moving and projects on schedule.
Choose the IDEAL 92-810P to improve first-time-right terminations for security, surveillance and video monitoring systems. Order the 25-pack today to streamline your next installation.
Features
- Faster, error-free terminations with InSITE 360° window that lets installers verify full cable insertion before compression
- Reduces rework and wasted parts by preventing collapsed center pins and misaligned terminations
- Optimized funnel pin entry and lower insertion force for quicker blind-entry installs on RG-59 coax
- Reliable signal performance for security and surveillance systems with 75 ohm impedance and up to 3 GHz frequency range
- Value 25-pack for consistent, on-site supply—ideal for CCTV, monitoring and video network projects
| General Information | |
|---|---|
| Brand Name | IDEAL Industries |
| Manufacturer | IDEAL Industries, Inc |
| Product Line | DataCom |
| Product Name | Video Connector |
| Product Type | Video Connector |
| Package Length | 4.9 |
| Packaged Quantity | 25 |
| Manufacturer Part Number | 92-810P |
| Technical Information | |
| Impedance | 75 ohms |
| Interfaces/Ports | |
| Connector Type | BNC |
| Others | |
| Model Number Replaces | 302-N2CSTP |
| Physical Characteristics | |
| Color | Silver |
| Miscellaneous | |
| Features | 75 ohms Impedance, RG-59 |
| Country of Origin | CN |
