Planar PCT2235 22" Helium Full HD LCD Touch Screen Desktop Monitor

SKU: 997-8286-00 Planar

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Planar PCT2235 22" LCD Touchscreen Monitor - 16:9 - 14 ms

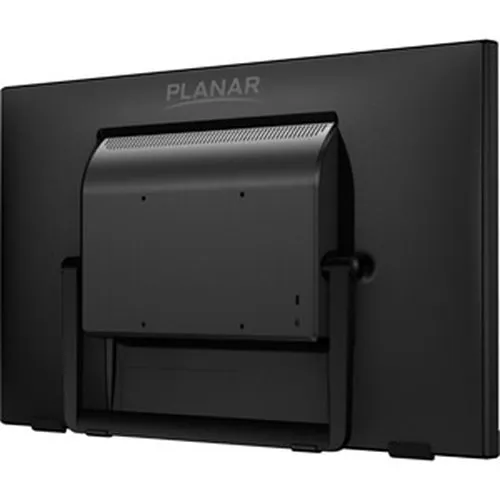

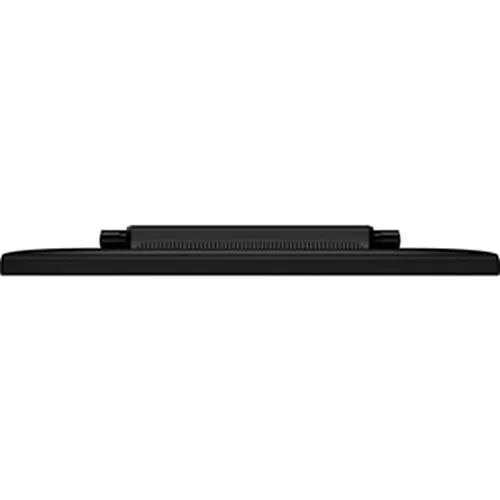

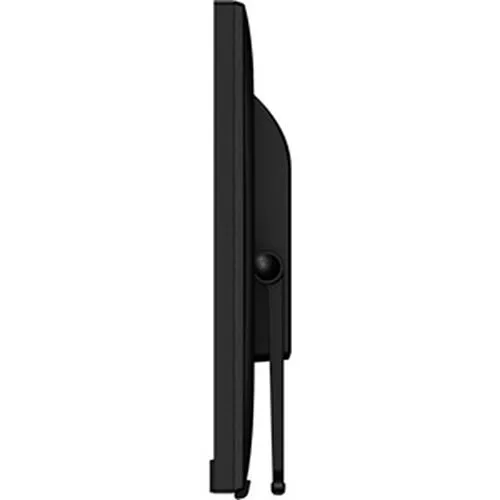

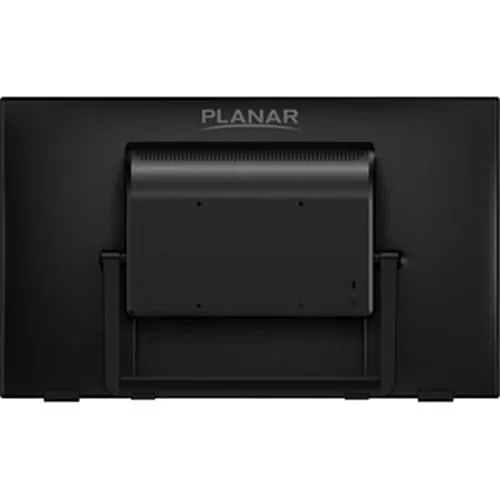

Product images for Planar PCT2235 22" Helium Full HD LCD Touch Screen Desktop Monitor. 5 image(s) available. Click on image to view full size.

Key Features

  • Responsive 10-point projected capacitive touch enables fast, accurate operator interaction for quicker incident assessment and control.
  • Full HD 22in display delivers crisp, detailed video so security teams can monitor critical areas with greater clarity.
  • Helium Desk Stand adjusts from flat to 70° for ergonomic touch use and flexible desktop placement in control rooms and kiosks.
  • Multiple inputs (HDMI, VGA, DisplayPort) plus a built-in USB hub simplify integration with NVRs, DVRs and client PCs for rapid deployment.
  • VESA compatibility and durable design make the monitor easy to mount or service in surveillance racks and security consoles.

Quick Specifications

Product Model
PCT2235
Brand Name
Planar
Product Line
Planar Helium Series
Product Name
PCT2235 22" Touch Screen Monitor
View Full Technical Specifications

Product Information Tabs

Overview

Designed for security and surveillance environments, the Planar PCT2235 22in Helium Full HD LCD touchscreen monitor puts responsive control and clear video where operators need it most. The 1920 x 1080 Full HD panel provides sharp, true-to-life footage for accurate monitoring, while 10-point projected capacitive touch lets multiple users interact simultaneously with video management systems and analytics dashboards. The unique Helium Desk Stand tilts from flat up to 70° for comfortable touch operation, reducing operator fatigue during long shifts and enabling versatile desktop workflows.

Built with real-world deployment in mind, the monitor includes HDMI, VGA and DisplayPort inputs plus a USB hub for easy connection to NVRs, DVRs and client workstations. At 250 nits brightness and a 100 mm VESA mount, the PCT2235 fits neatly into control rooms, reception kiosks and video surveillance consoles. Backed by a 3-year limited warranty, this Planar touchscreen monitor delivers reliable performance for continuous monitoring and security applications. Upgrade your surveillance stations with a touch display engineered for clarity, responsiveness and seamless integration.

Features

  • Responsive 10-point projected capacitive touch enables fast, accurate operator interaction for quicker incident assessment and control.
  • Full HD 22in display delivers crisp, detailed video so security teams can monitor critical areas with greater clarity.
  • Helium Desk Stand adjusts from flat to 70° for ergonomic touch use and flexible desktop placement in control rooms and kiosks.
  • Multiple inputs (HDMI, VGA, DisplayPort) plus a built-in USB hub simplify integration with NVRs, DVRs and client PCs for rapid deployment.
  • VESA compatibility and durable design make the monitor easy to mount or service in surveillance racks and security consoles.
General Information
Brand Name Planar
Manufacturer Leyard
Product Line Planar Helium Series
Product Name PCT2235 22" Touch Screen Monitor
Product Type LCD Touchscreen Monitor
Product Model PCT2235
Product Series PCT
Manufacturer Part Number 997-8286-00
Technical Information
Response Time 14 ms
Viewable Screen Size 22"
Audio
Speakers Yes
Display & Graphics
Screen Size 22"
Backlight Technology Edge LED
Energy & Performance
Operating Power Consumption 27W
Aspect Ratio 16:9
Interfaces/Ports
VGA Yes
HDMI Yes
DisplayPort Yes
Number of USB Ports 1
Others
Model Number Replaces 997-7251-01
Physical Characteristics
Color Black
Depth 1.9"
Width 19.3"
Height 11.8"
Weight 7.90 lb
VESA Mount Compatible Yes
Product Information
Mount Type Desktop Mount
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Video
Contrast Ratio 1,000:1
Brightness (Nit) 250
Maximum Resolution 1920 x 1080
Warranty
Limited Warranty 3-Year
Protection Plan by Guardsman Eligible Yes
Miscellaneous
Country of Origin CN
Environmentally Friendly Yes
Environmental Certification RoHS 2
