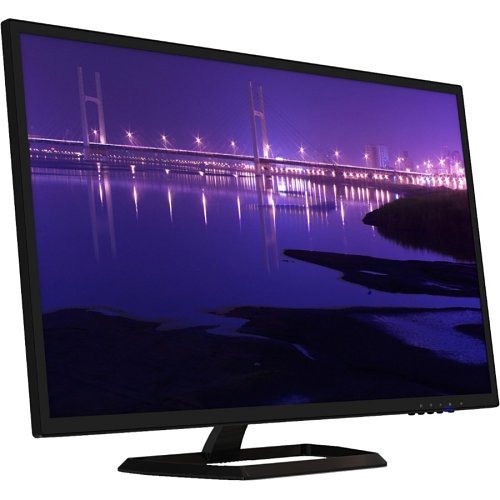

Planar PXL3280W 32" LCD Desktop Monitor
Image of 3
Key Features
- Maximize situational awareness with a 31.5in WQHD display (2560 x 1440) that shows more detail and reduces scrolling for faster incident review
- Accurate, consistent color and wide 178° IPS viewing enable reliable video surveillance and collaborative monitoring from multiple angles
- 10-bit (8-bit + FRC) panel reproduces 1.07 billion colors and smooth gradients for clearer forensic review and evidence analysis
- Flexible connectivity (HDMI, DisplayPort, DVI) and 100 x 100mm VESA mounting simplify integration into control rooms, NVR workstations, and desktop monitoring rigs
- Energy-efficient LED backlight with flicker-free and blue-light reduction settings reduces operator eye fatigue during long shifts
Quick Specifications
- Product Model
- PXL3280W
- Brand Name
- Planar
- Product Name
- PXL3280W Widescreen LCD Monitor
- Product Type
- LCD Monitor
Explore the details
Product information
997-8425-01
Overview
Optimize your security operations with the Planar PXL3280W desktop monitor — engineered for surveillance and monitoring environments that demand clarity and reliability. This Planar 32in LCD monitor delivers WQHD resolution (2560 x 1440) across a large 31.5in IPS panel, giving operators 77% more resolution than Full HD and ample screen real estate for multi-window monitoring, NVR playback, and live camera walls. The 10-bit (8-bit + FRC) panel reproduces 1.07 billion colors and smooth gradients, improving forensic image review and making subtle details easier to spot. With wide 178°/178° viewing, 300 nits brightness, and multiple inputs (DisplayPort, HDMI, DVI), the PXL3280W integrates seamlessly into control rooms, desktop workstations, and command centers. Built-in VESA mounting and energy-efficient LED backlighting reduce installation time and long-term operating costs, while flicker-free performance and blue-light reduction help lower operator fatigue. Backed by a 3-year limited warranty, the Planar PXL3280W is a dependable choice for security professionals. Add this monitor to your surveillance toolkit or contact us to specify it for your control room deployment.
Features
- Maximize situational awareness with a 31.5in WQHD display (2560 x 1440) that shows more detail and reduces scrolling for faster incident review
- Accurate, consistent color and wide 178° IPS viewing enable reliable video surveillance and collaborative monitoring from multiple angles
- 10-bit (8-bit + FRC) panel reproduces 1.07 billion colors and smooth gradients for clearer forensic review and evidence analysis
- Flexible connectivity (HDMI, DisplayPort, DVI) and 100 x 100mm VESA mounting simplify integration into control rooms, NVR workstations, and desktop monitoring rigs
- Energy-efficient LED backlight with flicker-free and blue-light reduction settings reduces operator eye fatigue during long shifts
| General Information | |
|---|---|
| Brand Name | Planar |
| Manufacturer | Leyard |
| Product Name | PXL3280W Widescreen LCD Monitor |
| Product Type | LCD Monitor |
| Product Model | PXL3280W |
| Product Series | PXL |
| Country of Origin | CN |
| Manufacturer Part Number | 997-8425-01 |
| Technical Information | |
| Aspect Ratio | 16:9 |
| Response Time | 8.0ms |
| Panel Technology | IPS |
| Backlight Technology | LED |
| Display & Graphics | |
| Pixel Pitch | 10.7mil |
| Screen Size | 32" |
| Number of Screens | 1 |
| Energy & Performance | |
| Operating Power Consumption | 50.00W |
| Interfaces/Ports | |
| HDMI | Yes |
| DisplayPort | Yes |
| Physical Characteristics | |
| Color | Black |
| Depth | 1.90" |
| Width | 28.60" |
| Height | 16.70" |
| VESA Mount Standard | 100 x 100 |
| VESA Mount Compatible | Yes |
| Product Information | |
| Mount Type | Desktop Mount, Wall Mount |
| Display Screen Type | LCD |
| Video | |
| Graphics Mode | QHD |
| Brightness (Nit) | 300 |
| Maximum Resolution | 2560 x 1440 |
| Native Contrast Ratio | 1,200:1 |
| Standard Refresh Rate | 60Hz |
| Warranty | |
| Limited Warranty | 3-Year |
| Protection Plan by Guardsman Eligible | Yes |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- 997-8425-01
- Manufacturer part:
- 997-8425-01
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
