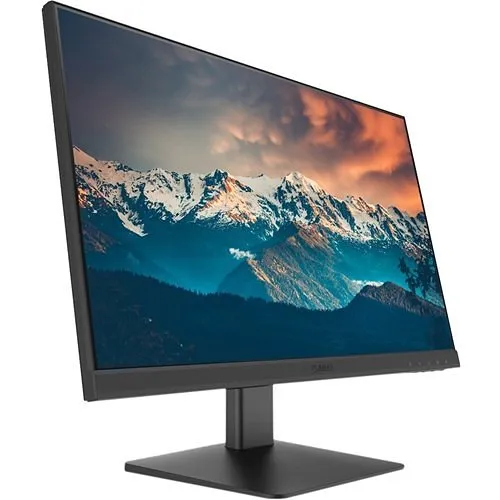

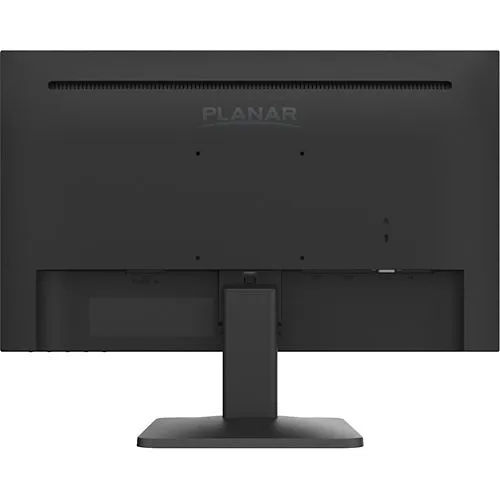

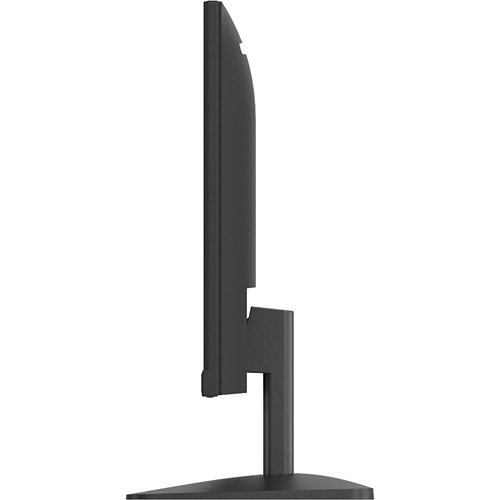

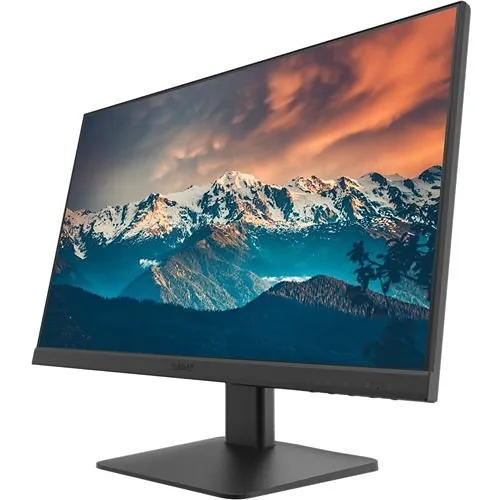

Planar PXN2200 21.5" Full HD LED LCD Monitor 16:9, Black
Key Features
- Delivers clear identification and situational awareness with a 21.5in Full HD IPS panel, improving accuracy for security and surveillance workflows
- Wide 178° viewing angles and a frameless bezel let multiple operators view the same feed without color shift, ideal for control rooms and multi-monitor arrays
- Triple inputs (DisplayPort, HDMI, VGA) and integrated TrueMedia speakers simplify connectivity and alert playback across mixed surveillance systems
- Flicker-free design and blue-light reduction presets reduce operator eye fatigue during long monitoring shifts
- Slim profile with 100 x 100 VESA mounting and energy-efficient LED backlight enables flexible deployment and compact multi-screen installations
Quick Specifications
- Brand Name
- Planar
- Manufacturer
- Leyard
- Product Name
- PXN2200 22" LCD Monitor
- Product Type
- LCD Monitor
Product Information Tabs
Overview
Engineered for reliable, long-shift monitoring, the Planar PXN2200 video surveillance monitor delivers the clarity and connectivity security teams need to act quickly. The 21.5in Full HD (1920 x 1080) IPS display produces crisp, true-to-life images and wide 178° viewing angles so operators and supervisors see consistent detail across the screen. Triple inputs (DisplayPort, HDMI, VGA) and integrated TrueMedia speakers make integration into mixed CCTV, NVR and VMS environments straightforward, while a flicker-free panel and blue-light reduction presets help reduce eye strain during extended use. At 75 Hz with a 5 ms gray-to-gray response and an energy-efficient LED backlight, the PXN2200 balances smooth motion, low power consumption and reliable performance for continuous surveillance duties. The slim, frameless design and 100 x 100 VESA compatibility support dense multi-monitor layouts in command centers, retail loss-prevention stations, and corporate security rooms. Backed by Planar’s 3-year CustomerFirst warranty and advance replacement service, this monitor is built for mission-critical monitoring. Specify the PXN2200 for dependable security monitoring — order now to upgrade your surveillance workstation.
Features
- Delivers clear identification and situational awareness with a 21.5in Full HD IPS panel, improving accuracy for security and surveillance workflows
- Wide 178° viewing angles and a frameless bezel let multiple operators view the same feed without color shift, ideal for control rooms and multi-monitor arrays
- Triple inputs (DisplayPort, HDMI, VGA) and integrated TrueMedia speakers simplify connectivity and alert playback across mixed surveillance systems
- Flicker-free design and blue-light reduction presets reduce operator eye fatigue during long monitoring shifts
- Slim profile with 100 x 100 VESA mounting and energy-efficient LED backlight enables flexible deployment and compact multi-screen installations
| General Information | |
|---|---|
| Brand Name | Planar |
| Manufacturer | Leyard |
| Product Name | PXN2200 22" LCD Monitor |
| Product Type | LCD Monitor |
| Product Model | PXN2200 |
| Product Series | PX |
| Manufacturer Part Number | 998-2120-00 |
| Technical Information | |
| Response Time | 5 ms GTG |
| HDCP Supported | Yes |
| Panel Technology | IPS |
| Stand Adjustments | Tilt |
| Viewable Screen Size | 21.5" |
| Audio | |
| Speakers | Yes |
| Certifications | |
| TAA Compliant | Yes |
| Display & Graphics | |
| Pixel Pitch | 9.8mil |
| Screen Size | 22" |
| Number of Screens | 1 |
| Backlight Technology | LED |
| Vertical Viewing Angle | 178° |
| Energy & Performance | |
| Operating Power Consumption | 22W |
| Image | |
| Aspect Ratio | 16:9 |
| Interfaces/Ports | |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Others | |
| Model Number Replaces | 997-8001-00 |
| Physical Characteristics | |
| Color | Black |
| Depth | 1.5" |
| Width | 19.3" |
| Height | 11.6" |
| Weight | 5.29lb |
| VESA Mount Standard | 100 x 100 |
| VESA Mount Compatible | Yes |
| Product Information | |
| Mount Type | Desktop Mount |
| Display Screen Type | LCD |
| Video | |
| Graphics Modes | Full HD |
| Brightness (Nit) | 250 |
| Maximum Resolution | 1920 x 1080 |
| Native Contrast Ratio | 41.667361111111113 |
| Standard Refresh Rate | 75 Hz |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Anti Blue Light Technology, Anti-glare, Cable Lock Slot, Flicker-free, On-screen Display (OSD) |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
