Planar PT3270Q 32" IPS LCD Touch Screen Monitor with Quad HD Resolution

SKU: 998-2949-00 Planar

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Image of 8Q-998294900

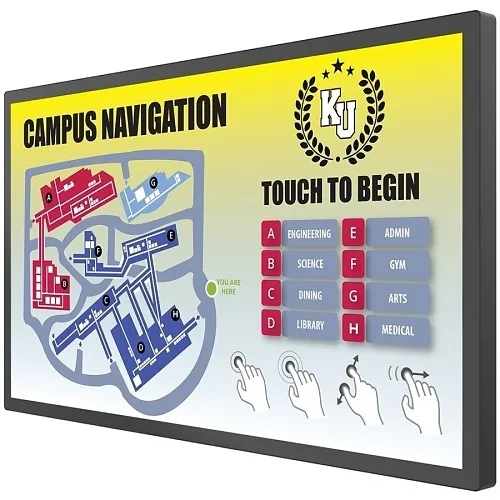

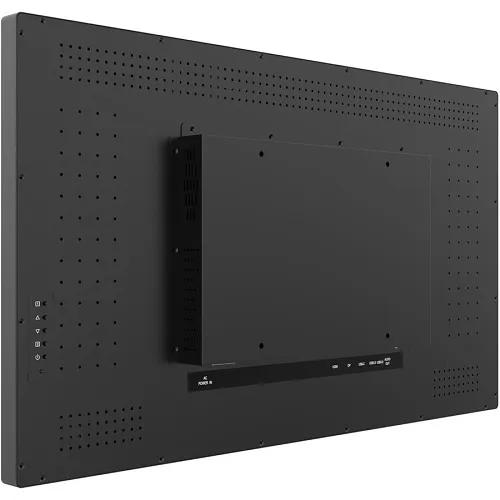

Product images for Planar PT3270Q 32" IPS LCD Touch Screen Monitor with Quad HD Resolution. 3 image(s) available. Click on image to view full size.

Key Features

  • Immersive Quad HD clarity (2560 x 1440) for sharper surveillance, monitoring and digital signage visuals
  • Responsive 10-point projected-capacitive touch that supports glove, waterproof and behind-glass modes for reliable public use
  • IP65 front and anti-glare all-glass surface to reduce reflections and protect against dust and moisture in busy environments
  • Single USB-C connectivity for streamlined video, audio and touch over one cable—simplifies installation and maintenance
  • VESA 200 x 200 mounting and rugged 32-inch IPS panel for flexible deployments in kiosks, control rooms and security stations

Quick Specifications

Product Model
PT3270Q
Brand Name
Planar
Product Line
Planar
Product Name
PT3270Q 32" Touch Screen Monitor
View Full Technical Specifications

Explore the details

Product information

998-2949-00

Overview

Deliver consistent, professional touch performance in kiosks, control rooms and security deployments with the Planar PT3270Q 32-inch IPS LCD touchscreen monitor. Built for demanding commercial environments, this Planar LCD touchscreen monitor combines Quad HD 2560 x 1440 resolution and a wide 178° viewing angle to present clearer, more accurate visuals for surveillance, monitoring and digital signage. The 10-point projected-capacitive touch supports glove and waterproof modes and can operate behind cover glass, ensuring dependable multi-touch interaction in retail, industrial and public-facing applications. An IP65-rated front, anti-glare coating and durable all-glass surface keep the display protected from dust, spills and reflections while preserving image quality. Installation is simplified with VESA 200 x 200 compatibility and a single USB-C connection that carries video, audio and touch signals. With 350 nits of brightness and a three-year limited warranty, the PT3270Q is engineered for continuous operation in security, monitoring and enterprise IT settings. Upgrade your touch deployments with a display designed for real-world use—contact your reseller or order the Planar PT3270Q for kiosks, surveillance stations and monitoring hubs today.

Features

  • Immersive Quad HD clarity (2560 x 1440) for sharper surveillance, monitoring and digital signage visuals
  • Responsive 10-point projected-capacitive touch that supports glove, waterproof and behind-glass modes for reliable public use
  • IP65 front and anti-glare all-glass surface to reduce reflections and protect against dust and moisture in busy environments
  • Single USB-C connectivity for streamlined video, audio and touch over one cable—simplifies installation and maintenance
  • VESA 200 x 200 mounting and rugged 32-inch IPS panel for flexible deployments in kiosks, control rooms and security stations
36 of 36 specifications
Technical specifications for Planar PT3270Q 32" IPS LCD Touch Screen Monitor with Quad HD Resolution
General Information
Brand Name Planar
Manufacturer Leyard
Product Line Planar
Product Name PT3270Q 32" Touch Screen Monitor
Product Type LCD Touchscreen Monitor
Product Model PT3270Q
Product Series PT
Country of Origin CN
Manufacturer Part Number 998-2949-00
Technical Information
Aspect Ratio 16:9
Response Time 14.0ms
HDCP Supported Yes
Panel Technology IPS
Backlight Technology Edge LED
Certifications
Energy Star No
Display & Graphics
Screen Size 32"
Energy & Performance
Operating Power Consumption 26.00W
Interfaces/Ports
HDMI Yes
DisplayPort Yes
Physical Characteristics
Depth 2.40"
Width 28.90"
Height 16.90"
Weight 28.00lb
VESA Mount Standard 200 x 200
VESA Mount Compatible Yes
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Video
Graphics Mode QHD
Contrast Ratio 41.667361111111113
Brightness (Nit) 350
Maximum Resolution 2560 x 1440
Native Contrast Ratio 41.667361111111113
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Anti-glare, Anti-reflective
Environmentally Friendly Yes
Environmental Certification RoHS
