Vaddio 999-5660-000 AV Bridge MatrixMIX A/V Switcher
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 6
Key Features
- Simplify multi-room production: combine switching, graphics keying and camera control in one appliance to streamline live events, lecture capture and unified conferencing.
- Deliver reliable streaming and monitoring: built-in RTSP IP and USB 3.0 output let you stream to UCC platforms or security monitoring systems with minimal setup.

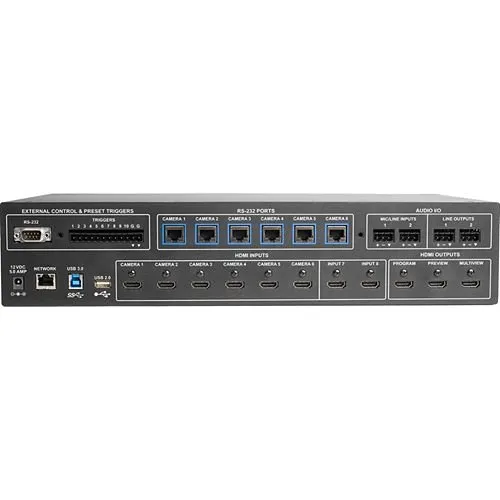

- Flexible I/O for AV and security workflows: 8 HDMI inputs, 3 HDMI outputs and an 11x7 audio mixer support mixed sources including cameras, PCs and IP audio.
- Operator-friendly control: touchscreen Multiviewer and remote control capability enable centralized operation for enterprise, education and command center deployments.
- Professional production features: two graphic key layers per output, motion graphics, PIP and transitions let non-technical staff create polished presentations and surveillance layouts quickly.
Quick Specifications
- Product Model
- 999-5660-000
- Brand Name
- Vaddio by Legrand
- Product Name
- AV Bridge MatrixMIX
- Product Type
- Video Switchbox
Explore the details
Product information
999-5660-000
Overview
Optimize live production and secure monitoring with the Vaddio by Legrand AV Bridge MatrixMIX A/V switcher — a versatile video conference interface unit designed for conferencing, lecture capture, live events and security command centers. This video switchbox consolidates switching, advanced camera control and graphics mixing so IT and AV teams can produce polished streams and on-premise displays without stitching multiple devices together. With 8 HDMI inputs and 3 HDMI outputs, plus an 11x7 audio mixer that supports analog, HDMI, USB and IP channels, MatrixMIX adapts to mixed AV and surveillance workflows. Built-in RTSP IP and USB 3.0 streaming make integration into monitoring, security and UCC platforms fast and reliable, while two graphic keying layers and multiviewer output enable clear on-screen overlays and camera layouts for surveillance or presentation monitoring. TAA-compliant and rack-friendly, it supports centralized control for enterprise and higher-education deployments. For production-level video, conferencing and security monitoring in one appliance, evaluate the AV Bridge MatrixMIX for your next integration or contact us to configure a solution for your facility.
Features
- Simplify multi-room production: combine switching, graphics keying and camera control in one appliance to streamline live events, lecture capture and unified conferencing.
- Deliver reliable streaming and monitoring: built-in RTSP IP and USB 3.0 output let you stream to UCC platforms or security monitoring systems with minimal setup.
- Flexible I/O for AV and security workflows: 8 HDMI inputs, 3 HDMI outputs and an 11x7 audio mixer support mixed sources including cameras, PCs and IP audio.
- Operator-friendly control: touchscreen Multiviewer and remote control capability enable centralized operation for enterprise, education and command center deployments.
- Professional production features: two graphic key layers per output, motion graphics, PIP and transitions let non-technical staff create polished presentations and surveillance layouts quickly.
| General Information | |
|---|---|
| Brand Name | Vaddio by Legrand |
| Manufacturer | Legrand Group |
| Product Name | AV Bridge MatrixMIX |
| Product Type | Video Switchbox |
| Product Model | 999-5660-000 |
| Manufacturer Part Number | 999-5660-000 |
| Technical Information | |
| Device Supported | Display |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 8 |
| Certifications | |
| TAA Compliant | Yes |
| Environmental Conditions | |
| Operating Temperature (T-T) | 32-104°F |
| Interfaces/Ports | |
| Number of USB Ports | 3 |
| Number of HDMI Inputs | 8 |
| Number of HDMI Outputs | 3 |
| Number of Connectivity (RJ-45) Ports | 7 |
| Physical Characteristics | |
| Color | Black |
| Dimensions | 28 x 14 x 10" |
| Product Information | |
| Number of Displays Supported | 2 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | AEC, Audio IO, Camera Control, IP Streaming, Keying, Motion Graphics, PIP, Transitions |
| Certifications | CE, FCC, TAA |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | TAA |
