AtlasIED AA120G 6-Input, 120W Mixer Amplifier

SKU: AA120G AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

AtlasIED AA120G Amplifier - 120 W RMS - 6 Channel

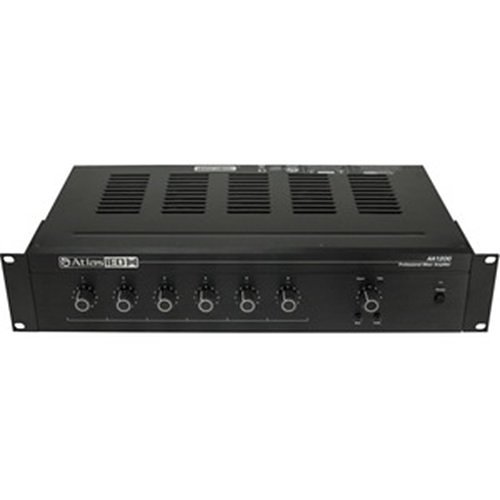

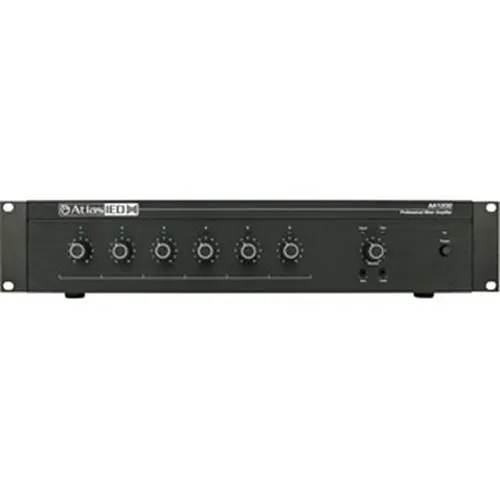

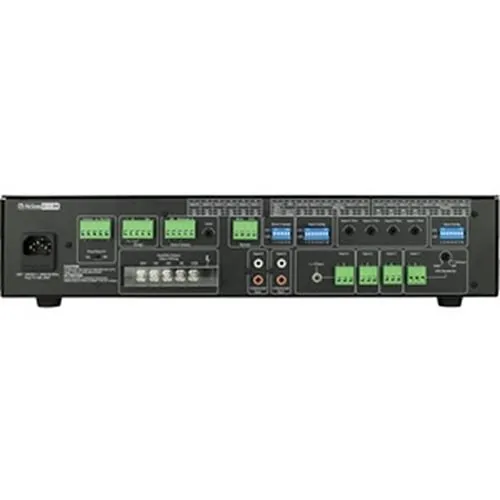

Product images for AtlasIED AA120G 6-Input, 120W Mixer Amplifier. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Simplifies distributed paging and BGM: six-input mixer with 120W output handles microphones, CD/streaming sources and music-on-hold without extra gear
  • Reliable live paging and monitoring: VOX and contact-closure mute plus a low-cut filter ensure clear speech for security, surveillance and monitoring applications
  • Scales for larger spaces: Bridge In/Out lets you combine amps for ballrooms or multi-zone installations without external relays
  • Remote level control and Zone 2 MOH: VCA assignable control for BGM or global level, plus a dedicated MOH output for on-hold systems
  • Contractor-friendly integration: Pre Out/Power Amp In, balanced links, UL60065 listing and compact 1U rack size simplify installs and compliance

Quick Specifications

Product Model
AA120G
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
6-Input, 120-Watt Mixer Amplifier
View Full Technical Specifications

Explore the details

Product information

AA120G

Overview

Engineered for fast, reliable installation in commercial paging, BGM and security environments, the AtlasIED AA120G 6-input, 120W mixer amplifier delivers clear voice and music playback for offices, retail, education and surveillance control rooms. This AtlasIED pro amplifier combines four mic/line inputs plus two stereo aux inputs to support paging microphones, digital sources and music-on-hold while producing 120 watts into 8 ohms and a full 50 Hz–20 kHz response for fidelity and intelligibility. Built-in VOX and contact-closure muting protect live paging and monitoring paths, while the unique Bridge In/Out circuit lets integrators combine amps for ballroom and multi-zone systems without external relays. Installers will also appreciate the pre-out/power-amp-in patch points, VCA remote level control assignable to BGM or the whole unit, and a Zone 2 MOH output for phone systems. UL60065 listing and efficient 240V operation ensure code-friendly deployments. Ideal for security, surveillance and monitoring applications that require dependable paging and background music, the AA120G streamlines installs and improves audio control—contact your rep or order now to specify it in your next project.

Features

  • Simplifies distributed paging and BGM: six-input mixer with 120W output handles microphones, CD/streaming sources and music-on-hold without extra gear
  • Reliable live paging and monitoring: VOX and contact-closure mute plus a low-cut filter ensure clear speech for security, surveillance and monitoring applications
  • Scales for larger spaces: Bridge In/Out lets you combine amps for ballrooms or multi-zone installations without external relays
  • Remote level control and Zone 2 MOH: VCA assignable control for BGM or global level, plus a dedicated MOH output for on-hold systems
  • Contractor-friendly integration: Pre Out/Power Amp In, balanced links, UL60065 listing and compact 1U rack size simplify installs and compliance
22 of 22 specifications
Technical specifications for AtlasIED AA120G 6-Input, 120W Mixer Amplifier
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Amps/Attenuator
Product Name 6-Input, 120-Watt Mixer Amplifier
Product Type Amplifier
Product Model AA120G
Product Series AA
Manufacturer Part Number AA120G
Technical Information
Impedance 8 ohms
Audio Channels 6
Audio
RMS Output Power 120W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 50Hz
Certifications
Energy Star Yes
TAA Compliant No
NDAA Compliant Yes
Energy & Performance
Operating Power Consumption 250W
Physical Characteristics
Depth 9.5"
Width 17"
Height 3.5"
Power Description
Input Voltage 240V AC
Miscellaneous
Country of Origin CN
