AtlasIED AA30PHD 3-Input, 30W Mixer Amplifier with Automatic System Test (PHD)

SKU: AA30PHD AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Atlas Sound AA30PHD Amplifier - 30 W RMS - 3 Channel - Black

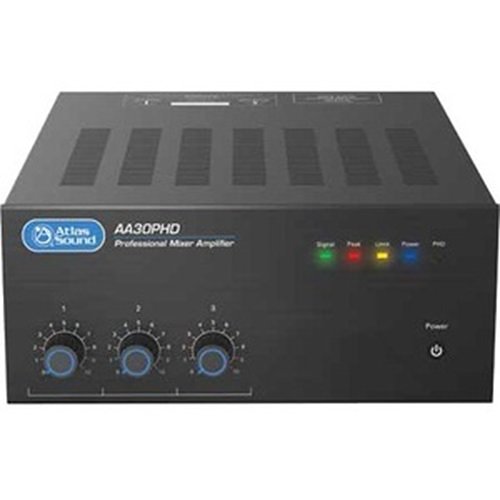

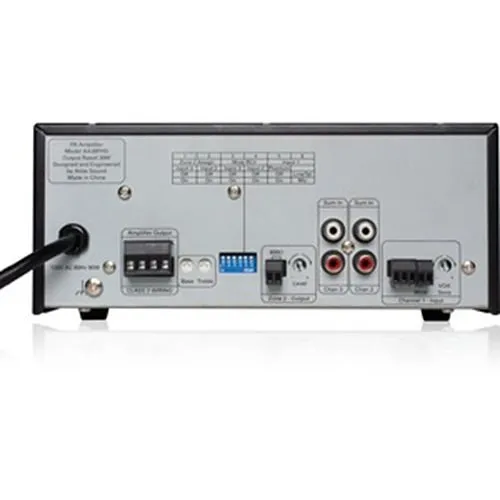

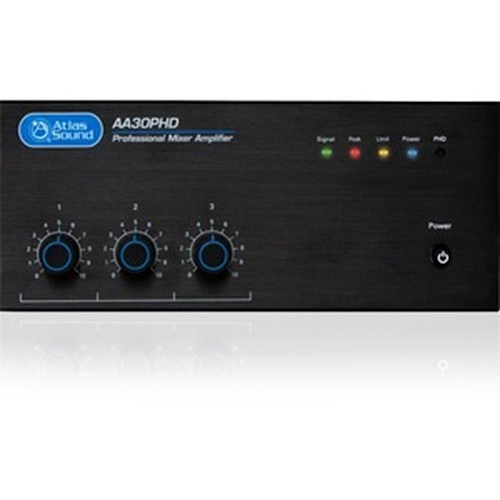

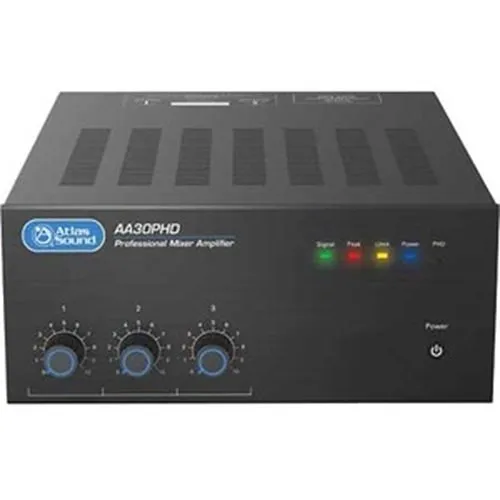

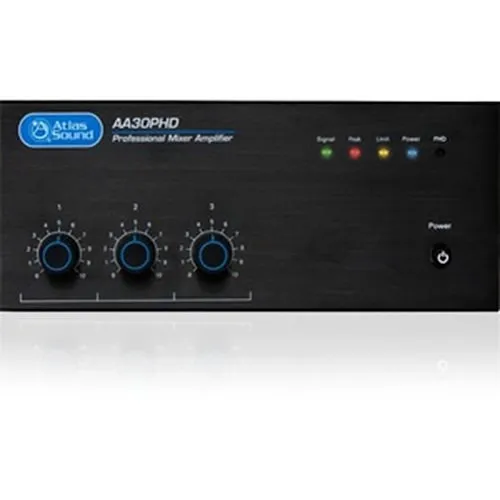

Product images for AtlasIED AA30PHD 3-Input, 30W Mixer Amplifier with Automatic System Test (PHD). 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Simplifies installation and maintenance with a patent‑pending Push Here Diagnostic (PHD) that verifies speaker wiring and tap settings to reduce call‑backs
  • Delivers clear, reliable paging and background music with 30W output across 25V/70.7V or 4Ω speaker systems for flexible system design
  • Three-input mixer with mic/line selectable Input 1 (optional phantom power) plus two summing line inputs for media players, telephony or paging consoles
  • Configurable mute and zone options (rear DIP switches and contact-closure mute) to prioritize live paging over background sources and support multi-zone layouts
  • Compact, rack-friendly black chassis with RoHS compliance and a 3-year limited warranty—engineered for commercial security, surveillance and monitoring environments

Quick Specifications

Product Model
AA30PHD
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
3-Input, 30-Watt Mixer Amplifier with Automatic System Test (PHD)
View Full Technical Specifications

Explore the details

Product information

AA30PHD

Overview

For contractors and systems integrators who need dependable paging, MOH and distributed BGM, the AtlasIED AA30PHD 3-input mixer amplifier delivers simple setup and worry‑free operation. This AtlasIED pro amplifier provides 30W RMS into 25V, 70.7V or 4Ω speaker lines, so you can drive ceiling, pendant or surface-mount speakers in retail, hospitality, healthcare and security applications. The patent‑pending Push Here Diagnostic (PHD) automatically tests speaker wiring, tap settings and shorts—saving on-site troubleshooting time and ensuring the audio system meets design intent.

Input flexibility includes a mic/line selectable Input 1 (with optional phantom power) plus two summing line inputs for media players, telephony or digital receivers. Rear DIP switches enable zone output and mute logic, allowing pages to override background sources—critical for emergency voice evacuation and monitoring systems. With industry-focused features for paging, surveillance audio and monitoring, the AA30PHD streamlines integration while protecting system performance. Specify the AA30PHD for robust, easy-to-maintain commercial audio installations—order now or contact your rep to discuss system layouts and security-ready deployments.

Features

  • Simplifies installation and maintenance with a patent‑pending Push Here Diagnostic (PHD) that verifies speaker wiring and tap settings to reduce call‑backs
  • Delivers clear, reliable paging and background music with 30W output across 25V/70.7V or 4Ω speaker systems for flexible system design
  • Three-input mixer with mic/line selectable Input 1 (optional phantom power) plus two summing line inputs for media players, telephony or paging consoles
  • Configurable mute and zone options (rear DIP switches and contact-closure mute) to prioritize live paging over background sources and support multi-zone layouts
  • Compact, rack-friendly black chassis with RoHS compliance and a 3-year limited warranty—engineered for commercial security, surveillance and monitoring environments
28 of 28 specifications
Technical specifications for AtlasIED AA30PHD 3-Input, 30W Mixer Amplifier with Automatic System Test (PHD)
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Amps/Attenuator
Product Name 3-Input, 30-Watt Mixer Amplifier with Automatic System Test (PHD)
Product Type Amplifier
Product Model AA30PHD
Product Series AAPHD
Country of Origin CN
Manufacturer Part Number AA30PHD
Technical Information
Impedance 4Ohm
Audio Channels 3
Audio
Maximum Frequency Response 15kHz
Minimum Frequency Response 50Hz
Total Harmonic Distortion (THD) 0.1% – 0.5%
Certifications
Energy Star No
TAA Compliant No
NDAA Compliant Yes
Energy & Performance
Operating Power Consumption 90W
Physical Characteristics
Color Black
Depth 10.9"
Width 8.3"
Height 3.7"
Weight 9.00lb
Power Description
Input Voltage 120V AC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 2x Unbalanced, Summing Line-Level Inputs, 30W into 25V/70.7V and 4 Ohms Loads, 3x Inputs with PHX and RCA Options, Automated Diagnostic System Test, Rear-Mounted DIP Switch for Mute Options
Environmentally Friendly Yes
Environmental Certification RoHS
