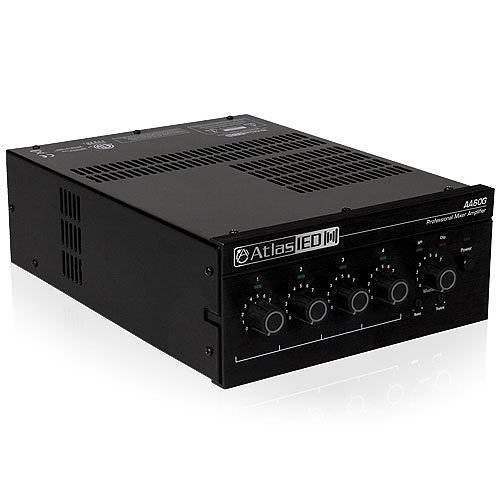

AtlasIED AA60G 4-Input, 60W Mixer Amplifier with Global Power Supply

SKU: AA60G AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Atlas Sound AA60G Amplifier - 60 W RMS
Product images for AtlasIED AA60G 4-Input, 60W Mixer Amplifier with Global Power Supply. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Delivers reliable 60W power to drive paging, background music and MOH across small-to-medium facilities for consistent coverage and intelligibility

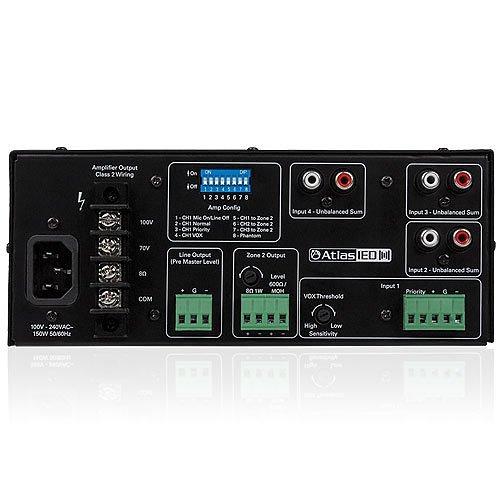

  • Four flexible inputs (mic/line, Telco, dual RCA stereo) and Zone 2 mix let you integrate paging mics, digital music sources and on-hold messaging without extra processors
  • Global universal power supply (120–240V) with selectable 70.7V / 100V / 8Ω outputs simplifies international installs and speaker matching
  • Priority muting (VOX or external) and balanced mic input ensure emergency and security announcements cut through background audio for effective monitoring and surveillance audio
  • Compact rack-ready design with front-panel volume controls, tone controls and signal LEDs speeds setup and daily operation for integrators and AV teams

Quick Specifications

Product Model
AA60G
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
4-Input, 60-Watt Mixer Amplifier with Global Power Supply AA60G
View Full Technical Specifications

Explore the details

Product information

AA60G

Overview

For reliable paging, background music (BGM) and music-on-hold (MOH) in commercial and security-conscious environments, the AtlasIED AA60G mixer amplifier puts flexible, professional audio control at the heart of your system. This AtlasIED pro amplifier combines four configurable inputs — including a balanced mic/line, Telco and dual stereo RCA inputs — with a selectable Zone 2 mix so you can route announcements or music to hold channels without additional equipment. With 60 watts RMS output and selectable 70.7V/100V/8Ω outputs, the AA60G easily matches distributed speaker systems used in retail, hospitality, education and surveillance monitoring applications. The global universal AC supply (120–240V) and rack-friendly form factor simplify deployments across sites and geographies. Built-in priority muting and front-panel tone controls preserve speech intelligibility for security paging and emergency notifications. NDAA-compliant and RoHS-certified, the AA60G is ideal for integrators specifying audio for paging, monitoring and security systems. Contact us to discuss system design or order the AA60G for your next paging, BGM or surveillance audio deployment.

Features

  • Delivers reliable 60W power to drive paging, background music and MOH across small-to-medium facilities for consistent coverage and intelligibility
  • Four flexible inputs (mic/line, Telco, dual RCA stereo) and Zone 2 mix let you integrate paging mics, digital music sources and on-hold messaging without extra processors
  • Global universal power supply (120–240V) with selectable 70.7V / 100V / 8Ω outputs simplifies international installs and speaker matching
  • Priority muting (VOX or external) and balanced mic input ensure emergency and security announcements cut through background audio for effective monitoring and surveillance audio
  • Compact rack-ready design with front-panel volume controls, tone controls and signal LEDs speeds setup and daily operation for integrators and AV teams
21 of 21 specifications
Technical specifications for AtlasIED AA60G 4-Input, 60W Mixer Amplifier with Global Power Supply
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Amps/Attenuator
Product Name 4-Input, 60-Watt Mixer Amplifier with Global Power Supply AA60G
Product Type Amplifier
Product Model AA60G
Manufacturer Part Number AA60G
Technical Information
Impedance 8 ohms
Audio Channels 3
Audio
RMS Output Power 60W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 50Hz
Certifications
TAA Compliant No
NDAA Compliant Yes
Energy & Performance
Operating Power Consumption 150W
Physical Characteristics
Color Black
Depth 13.9"
Width 9.5"
Height 4.1"
Weight 9 lb
Miscellaneous
Environmental Certification RoHS

No matching specifications

Try a different term, such as a connector type or resolution.

Plan your purchase

Is this right for your project?

Confirm the model, required accessories and delivery needs before ordering.

SKU:
AA60G
Manufacturer part:
AA60G
How do I confirm compatibility?

Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.

Ask a product specialist
When will this item ship?

Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.

Shipping, freight and delivery details
What should I know about returns?

Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.

Read return eligibility and exclusions

AtlasIED AA60G 4-Input, 60W Mixer Amplifier with Global Power Supply

AA60G

Price & options
