AV Pro Edge AC-DA210-HDBT 2 x 10 HDBaseT Distribution Amplifier, 18Gbps

SKU: AC-DA210-HDBT AV Pro Edge

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Image of 8A-ACDA21DBT

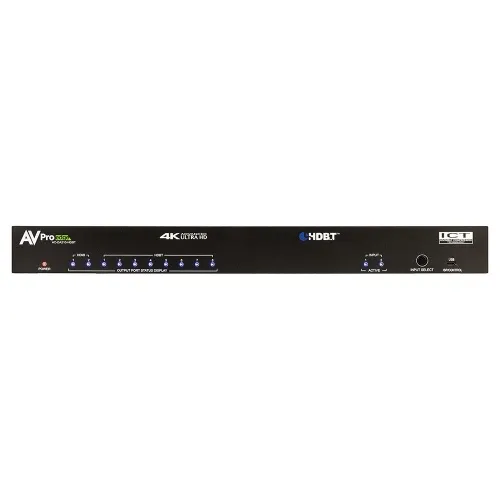

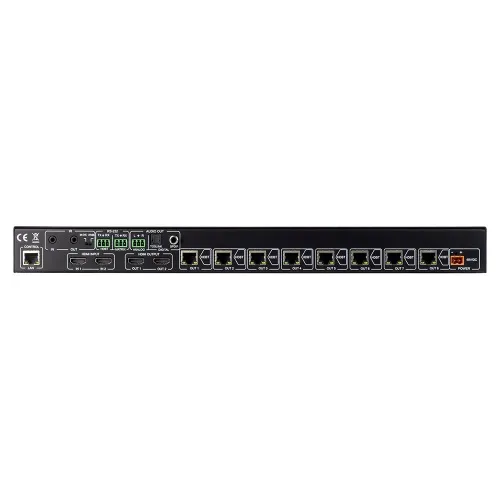

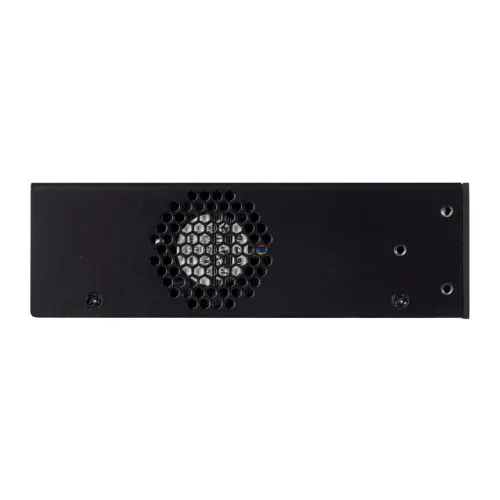

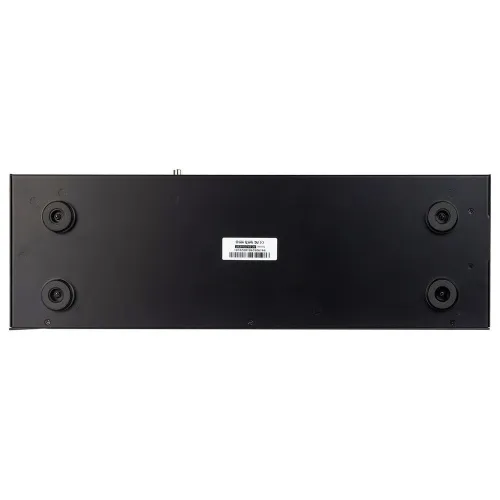

Product images for AV Pro Edge AC-DA210-HDBT 2 x 10 HDBaseT Distribution Amplifier, 18Gbps. 5 image(s) available. Click on image to view full size.

Key Features

  • Scale crisp, uncompressed 4K60 4:4:4 HDR content across large installations with 18Gbps bandwidth for flawless image quality.
  • Send video up to 70m at 4K (100m at 1080p) over HDBaseT to simplify long-distance digital signage, hospitality and security deployments.
  • Eight HDBaseT plus two HDMI outputs let you distribute different sources to many displays while cascading to reach hundreds of endpoints.
  • Integrated audio de‑embedding (2CH Phoenix, SPDIF, Toslink) and PoH receiver compatibility streamline AV and monitoring system integration.
  • Rack‑ready 1U chassis with robust cooling and web/RS‑232/IR control including advanced EDID management reduces installation time and remote troubleshooting.

Quick Specifications

Product Model
AC-DA210-HDBT
Bandwidth
18 Gbps
Brand Name
AV Pro Edge
Manufacturer Part Number
AC-DA210-HDBT
View Full Technical Specifications

Explore the details

Product information

AC-DA210-HDBT

Overview

Deliver consistent, high‑fidelity 4K video to large venues and distributed display networks with the AV Pro Edge AC-DA210-HDBT Pro Amplifiers distribution amplifier. Built for AV integrators, retail, hospitality and security professionals, this 2x10 HDBaseT DA supports full 4K60 4:4:4 with 18Gbps uncompressed bandwidth and HDR (Dolby Vision, HDR10+, HLG) to preserve color and detail across every screen. Eight HDBaseT outputs plus two HDMI outputs let you feed dozens — or, when cascaded, hundreds — of displays while proprietary ICT compression and PoH receiver compatibility enable 70m 4K (100m 1080p) runs over a single cable. The unit includes audio de‑embedding for easy connection to zone audio or monitoring systems, and a 1U rack design with optimized airflow ensures reliable 24/7 operation. Web GUI, RS‑232 and IR control with advanced EDID management simplify commissioning and ongoing monitoring in security and surveillance environments. Ideal for large digital signage networks, control rooms, and distributed AV/surveillance projects—contact us to configure the AC-DA210-HDBT for your installation or add it to your cart.

Features

  • Scale crisp, uncompressed 4K60 4:4:4 HDR content across large installations with 18Gbps bandwidth for flawless image quality.
  • Send video up to 70m at 4K (100m at 1080p) over HDBaseT to simplify long-distance digital signage, hospitality and security deployments.
  • Eight HDBaseT plus two HDMI outputs let you distribute different sources to many displays while cascading to reach hundreds of endpoints.
  • Integrated audio de‑embedding (2CH Phoenix, SPDIF, Toslink) and PoH receiver compatibility streamline AV and monitoring system integration.
  • Rack‑ready 1U chassis with robust cooling and web/RS‑232/IR control including advanced EDID management reduces installation time and remote troubleshooting.
6 of 6 specifications
Technical specifications for AV Pro Edge AC-DA210-HDBT 2 x 10 HDBaseT Distribution Amplifier, 18Gbps
General Information
Bandwidth 18 Gbps
Brand Name AV Pro Edge
Manufacturer Part Number AC-DA210-HDBT
Environmental Conditions
Operating Temperature (T-T) 23-125°F
Interfaces/Ports
HDMI Yes
Physical Characteristics
Weight 2lb
