JBL Professional AC25 5.25" 2 Ultra Compact 2-Way Loudspeaker with 1" Dome Tweeter, Black

SKU: AC25 JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

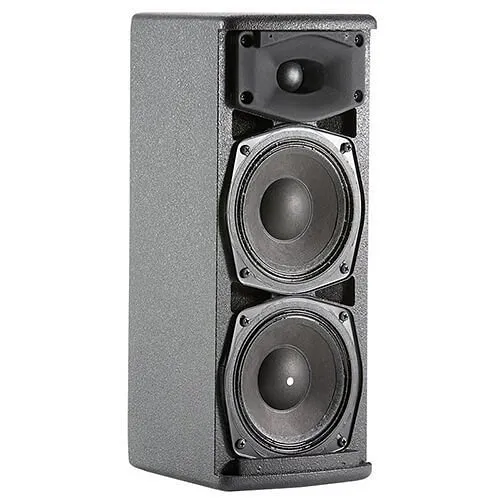

Image of JF-AC25
Product images for JBL Professional AC25 5.25" 2 Ultra Compact 2-Way Loudspeaker with 1" Dome Tweeter, Black. 2 image(s) available. Click on image to view full size.

Key Features

  • Ultra-compact design mounts close to walls and ceilings for discreet background music, paging and security audio
  • Powerful 225W RMS output with 90 Hz–18 kHz bandwidth for clear speech intelligibility and full-range music
  • Dual 5.25" SFG woofers and 1" dome tweeter provide even 90° x 90° coverage for consistent monitoring and surveillance zones
  • Filtered Array Technology (FAT™) reduces distortion and evens power response for natural, reliable sound in AV and security systems
  • 16 Ω nominal impedance and 91 dB sensitivity deliver efficient, high-output performance in distributed speaker networks

Quick Specifications

Product Model
AC25
Brand Name
JBL Professional
Product Name
AC25 Ultra Compact 2-way Loudspeaker with 2 x 5.25" LF
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Deliver consistent, professional audio in tight spaces with the JBL Professional AC25 ultra-compact 2-way loudspeaker. Designed for integrators and AV/security professionals, the AC25 provides intelligible paging, background music and security audio from a near-wall or ceiling position thanks to its low-profile enclosure and 90° x 90° waveguide. You get robust 225W RMS power and a broad 90 Hz–18 kHz frequency range that preserve low-end presence and crisp vocal clarity for monitoring, conferencing and surveillance applications. Dual 5.25" SFG woofers with Filtered Array Technology and a 1" dome tweeter minimize distortion and maintain even coverage across the listening area, improving speech clarity for paging and reducing false alarms in security systems. Built for commercial installations, the AC25 mounts under balconies, on columns or in ceilings and includes a 5-year limited warranty for long-term reliability. Ideal for integrators specifying speakers for retail, transit hubs, corporate AV and security monitoring — contact us to add JBL AC25 units to your next project.

Features

  • Ultra-compact design mounts close to walls and ceilings for discreet background music, paging and security audio
  • Powerful 225W RMS output with 90 Hz–18 kHz bandwidth for clear speech intelligibility and full-range music
  • Dual 5.25" SFG woofers and 1" dome tweeter provide even 90° x 90° coverage for consistent monitoring and surveillance zones
  • Filtered Array Technology (FAT™) reduces distortion and evens power response for natural, reliable sound in AV and security systems
  • 16 Ω nominal impedance and 91 dB sensitivity deliver efficient, high-output performance in distributed speaker networks
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Name AC25 Ultra Compact 2-way Loudspeaker with 2 x 5.25" LF
Product Type Speaker
Product Model AC25
Manufacturer Part Number AC25
Technical Information
Material Foam, Perforated-steel, Plywood
Impedance 16 ohms
Sensitivity 91dB
Speaker Size 5"
Crossover Type 2-way
Audio
RMS Output Power 225W
Maximum Frequency Response 18 kHz
Minimum Frequency Response 90Hz
Physical Characteristics
Size 5.25"
Color Black
Depth 7"
Width 5.9"
Height 14.9"
Weight 16.53lb
Product Information
Mount Type Ceiling Mount, Wall Mount
Warranty
Limited Warranty 5-Year
Miscellaneous
Country of Origin MX
