JBL Professional AC266 12" 2-Way Full-Range Loudspeaker, Black

SKU: AC266 JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

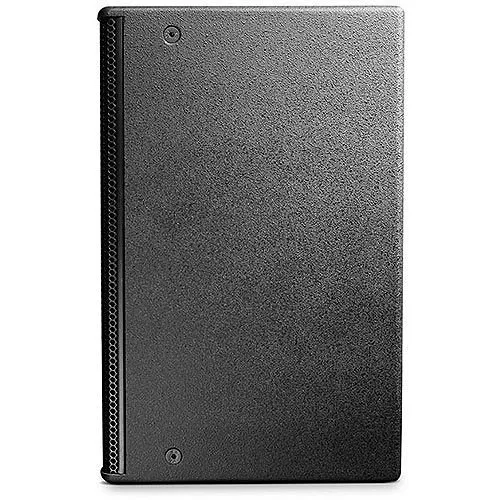

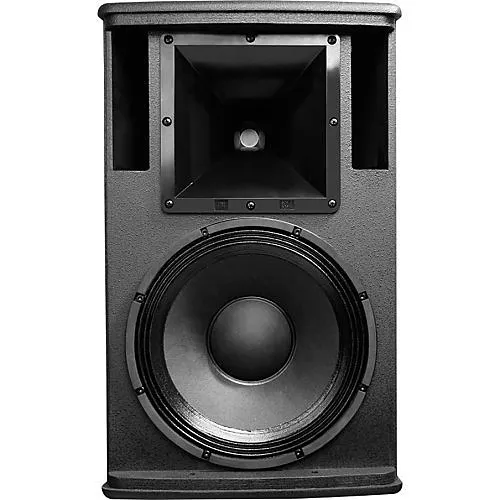

Image of JF-AC266BLK
Product images for JBL Professional AC266 12" 2-Way Full-Range Loudspeaker, Black. 3 image(s) available. Click on image to view full size.

Key Features

  • Delivers clear, punchy sound that fills medium venues, improving intelligibility for speech, paging and live music
  • Consistent 60° x 60° coverage ensures even audio distribution across listening areas, reducing hot spots and dead zones
  • High sensitivity and wide response (97 dB; 80 Hz–18 kHz) provide articulate voice and music reproduction with less amplifier power
  • Flexible mounting and connection options (M10 suspension points, rear threaded inserts, NL4 and screw terminals) speed installation and integration
  • Durable 15 mm textured enclosure resists wear for long-term installs in hospitality, retail, houses of worship and security paging systems

Quick Specifications

Product Model
AC266
Brand Name
JBL Professional
Product Name
2-Way Full-Range Loudspeaker with 1 x 12" LF
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

For installations that demand reliable, intelligible sound, the JBL Professional AC266 2-way full-range loudspeaker is built to perform. This compact 12-inch speaker delivers punchy low end and clear highs—driven by a 12-inch LF transducer and a 1-inch compression driver—making announcements and music sound natural across bars, houses of worship, retail spaces and live venues. Rated at 250W RMS with 97 dB sensitivity and a controlled 80 Hz–18 kHz frequency response, the AC266 offers impactful output without taxing your amplifiers. The 60° x 60° waveguide provides predictable coverage for focused monitoring and public address, while high-slope passive crossovers reduce band overlap for cleaner off-axis response. Installation is straightforward: M10 suspension points, rear threaded inserts and dual NL4 plus screw connectors let integrators mount and wire the loudspeaker exactly where needed. Rugged 15 mm construction and a black textured finish ensure long service life in both front-of-house and discreet security paging roles. Ideal for AV integrators, security and surveillance teams that need dependable PA and monitoring audio. Specify the AC266 for your next fixed installation or contact sales to discuss system design.

Features

  • Delivers clear, punchy sound that fills medium venues, improving intelligibility for speech, paging and live music
  • Consistent 60° x 60° coverage ensures even audio distribution across listening areas, reducing hot spots and dead zones
  • High sensitivity and wide response (97 dB; 80 Hz–18 kHz) provide articulate voice and music reproduction with less amplifier power
  • Flexible mounting and connection options (M10 suspension points, rear threaded inserts, NL4 and screw terminals) speed installation and integration
  • Durable 15 mm textured enclosure resists wear for long-term installs in hospitality, retail, houses of worship and security paging systems
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Name 2-Way Full-Range Loudspeaker with 1 x 12" LF
Product Type Speaker
Product Model AC266
Manufacturer Part Number AC266
Technical Information
Impedance 8 ohms
Sensitivity 97dB
Speaker Size 12"
Crossover Type 2-way
Application/Usage Bar, Club, Educational Facility, Hospitality, House of Worship, Multi Media Space, Presentation Room, Retail, Stage
Audio
RMS Output Power 250W
Maximum Frequency Response 18 kHz
Minimum Frequency Response 80Hz
Physical Characteristics
Size 12.20"
Color Black
Depth 15.43"
Width 14.6"
Height 23.6"
Weight 38.36 lb
Product Information
Mount Type Wall Mount
Miscellaneous
Indoor/Outdoor Outdoor
