JBL Professional AC28/95 8" 2 Compact 2-Way Loudspeaker with 1" Exit Compression Driver, Black

SKU: AC2895 MPN: AC28/95 JBL Professional
Image of JF-AC2895

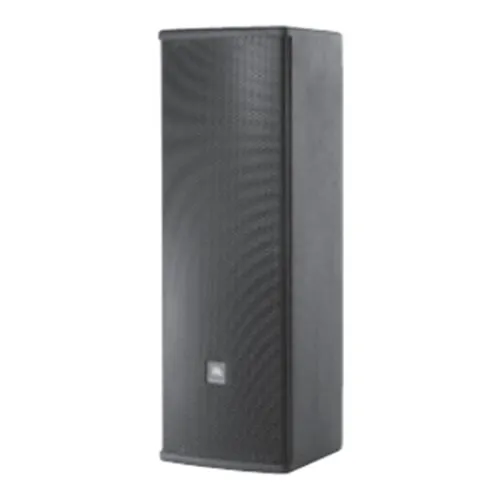

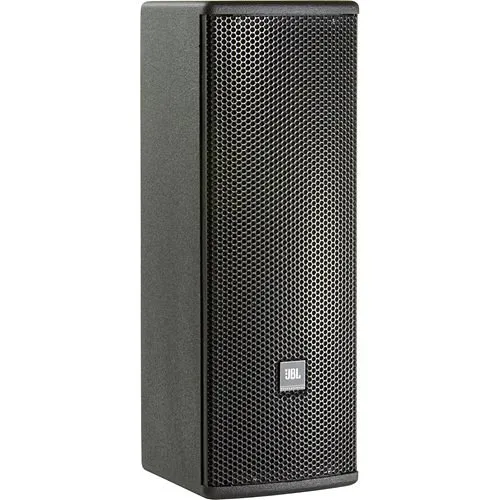

Product images for JBL Professional AC28/95 8" 2 Compact 2-Way Loudspeaker with 1" Exit Compression Driver, Black. 3 image(s) available. Click on image to view full size.

Key Features

  • Consistent, even coverage: Rotatable 90° x 50° PT waveguide and FIR tuning deliver predictable sound for paging, monitoring and background music
  • High output in a compact footprint: Dual 8-inch LF drivers and a 1-inch compression driver provide punchy SPL while staying unobtrusive for wall or ceiling installs
  • Orientation flexibility: User-selectable crossover and horn rotation ensure accurate HF coverage whether mounted vertically or horizontally
  • Installation-ready durability: Robust plywood enclosure, Neutrik NL4 connectors plus screw terminal and multiple mounting points simplify permanent installs
  • Cleaner bass and lower distortion: Symmetrical Field Geometry woofers and Filtered Array Technology improve low-frequency control for natural voice reproduction

Quick Specifications

Product Model
AC28/95
Brand Name
JBL Professional
Product Name
AC28/95 Compact 2-way Loudspeaker with 2 x 8" LF
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Bring reliable, pro-grade sound to professional installations with the JBL Professional AC28/95 compact 2-way loudspeaker. Engineered for spaces that require high-SPL performance without visual intrusion, this speaker pairs dual 8-inch LF transducers with a 1-inch exit compression driver to deliver clear voice reproduction and extended frequency response (65 Hz–20 kHz). With 375W RMS capacity, 94 dB sensitivity and FIR tuning, the AC28/95 produces even coverage and low distortion—ideal for paging, public address, retail, hospitality and security monitoring applications. The rotatable PT waveguide and user-selectable crossover keep high-frequency pattern control consistent whether the cabinet is mounted horizontally or vertically, while Filtered Array Technology smooths power response for natural tonal balance. Built for permanent installs, the enclosure accepts industry-standard mounting hardware and includes Neutrik NL4 connectors for secure, serviceable connections. Choose the AC28/95 when you need discreet, dependable audio for surveillance-related audio zones, monitoring rooms or any space that demands intelligible speech and impactful music. Contact your dealer to specify the speaker for your next installation.

Features

  • Consistent, even coverage: Rotatable 90° x 50° PT waveguide and FIR tuning deliver predictable sound for paging, monitoring and background music
  • High output in a compact footprint: Dual 8-inch LF drivers and a 1-inch compression driver provide punchy SPL while staying unobtrusive for wall or ceiling installs
  • Orientation flexibility: User-selectable crossover and horn rotation ensure accurate HF coverage whether mounted vertically or horizontally
  • Installation-ready durability: Robust plywood enclosure, Neutrik NL4 connectors plus screw terminal and multiple mounting points simplify permanent installs
  • Cleaner bass and lower distortion: Symmetrical Field Geometry woofers and Filtered Array Technology improve low-frequency control for natural voice reproduction
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Name AC28/95 Compact 2-way Loudspeaker with 2 x 8" LF
Product Type Speaker
Product Model AC28/95
Manufacturer Part Number AC28/95
Technical Information
Material Foam, Perforated-steel, Plywood
Impedance 8 ohms
Sensitivity 94dB
Speaker Size 8"
Crossover Type 2-way
Audio
RMS Output Power 375W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 65Hz
Physical Characteristics
Size 8"
Color Black
Depth 10"
Width 9.4"
Height 26.8"
Weight 41.01 lb
Product Information
Mount Type Wall Mount
Warranty
Limited Warranty 5-Year
