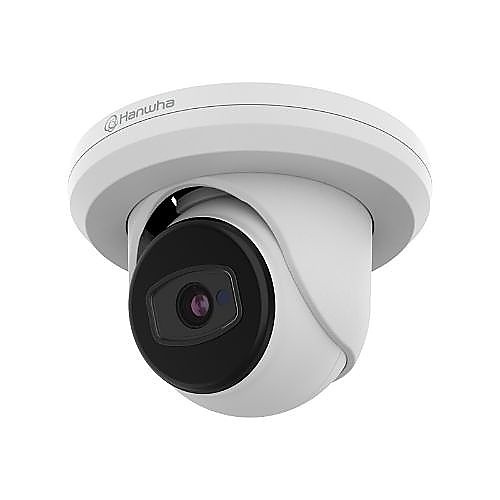

Hanwha ACE-8020R Wisenet Series 5MP Turret Camera with Day and Night Sensor and IP67, IK10 Protection, 3.6mm Fixed Focal Lens, White
Image of 2
Key Features
- Deliver crisp, 5MP day/night footage with 20m IR for reliable 24/7 security monitoring
- Rugged IP67 and IK10-rated housing reduces downtime from weather and vandalism for long-term deployments
- Wide 3.6mm fixed lens covers large areas, lowering total camera count and installation costs
- Multi-protocol compatibility (AHD/TVI/CVI/CVBS) and plug-and-play coaxial control simplify upgrades and field installations
- Backed by Hanwha Vision’s 5-year warranty for enterprise-grade reliability and peace of mind
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Vision
- Product Name
- 5MP Analog HD Flateye Camera
- Product Type
- Flateye Camera
Frequently Bought Together
Hanwha ACE-8020R Wisenet Series 5MP Turret Camera with Day and Night Sensor and IP67, IK10 Protection, 3.6mm Fixed Focal Lens, White
$70.38
7 items selected
Total: $1,535.82
Product Information Tabs
Overview
Designed for reliable 24/7 security monitoring, the Hanwha Vision ACE-8020R 5MP turret camera combines high-resolution imaging with rugged protection to suit commercial and industrial surveillance needs. The camera captures detailed 5MP footage and uses a 3.6mm fixed focal lens with a wide field of view to cover entrances, parking areas, and perimeters with fewer devices. Built-in infrared extends low-light visibility up to 20 meters, keeping critical areas visible after dark.
Engineered for demanding environments, the ACE-8020R’s IP67 weatherproof and IK10 vandal-resistant housing minimizes maintenance and replacement costs, while multi-protocol analog compatibility (AHD/TVI/CVI/CVBS) and coaxial control make it a practical choice for phased system upgrades. Installers will appreciate plug-and-play setup and standard 12V DC power support. With a 5-year limited warranty from Hanwha Vision, this turret camera delivers dependable performance for long-term security projects.
Ideal for retail, transportation hubs, warehouses, and facility monitoring—add the ACE-8020R to your surveillance strategy to strengthen perimeter protection and incident documentation.
Features
- Deliver crisp, 5MP day/night footage with 20m IR for reliable 24/7 security monitoring
- Rugged IP67 and IK10-rated housing reduces downtime from weather and vandalism for long-term deployments
- Wide 3.6mm fixed lens covers large areas, lowering total camera count and installation costs
- Multi-protocol compatibility (AHD/TVI/CVI/CVBS) and plug-and-play coaxial control simplify upgrades and field installations
- Backed by Hanwha Vision’s 5-year warranty for enterprise-grade reliability and peace of mind
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 5MP Analog HD Flateye Camera |
| Product Type | Flateye Camera |
| Product Model | ACE-8020R |
| Product Series | A |
| Manufacturer Part Number | ACE-8020R |
| Technical Information | |
| Lens Type | Fixed Focus |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.6mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 63.4° |
| Field of View (Horizontal) | 83.9° |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 65.62 ft |
| Certifications | |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 0-90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/50,000 Second |
| Lens | |
| Focal Length | 3.6mm |
| Lens Included | Yes |
| Maximum Focal Length | 3.6mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 0.90lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Flateye |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 4.72" |
| Mount Type | Backbox Mount |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | AHD, CVBS, CVI, TVI |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | ,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12v DC power, 3.6mm fixed focal lens FoV H - 94°/V - 54°, 5MP resolution at 30FPS, 4MP at CVI, Day and Night (ICR), DWDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance max.500m |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
