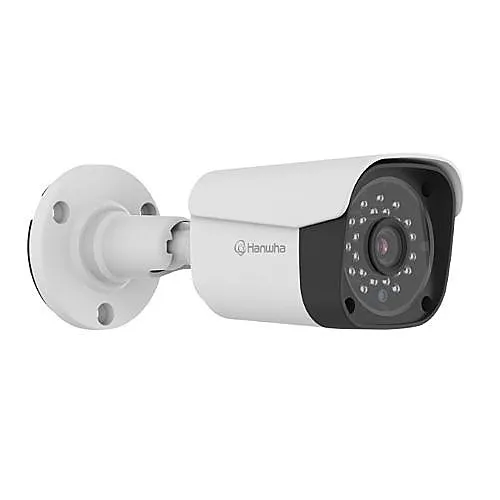

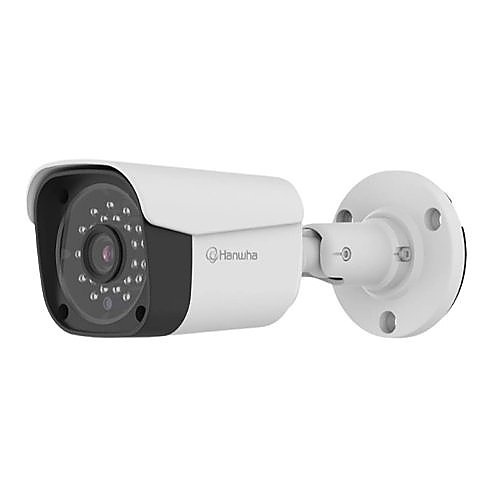

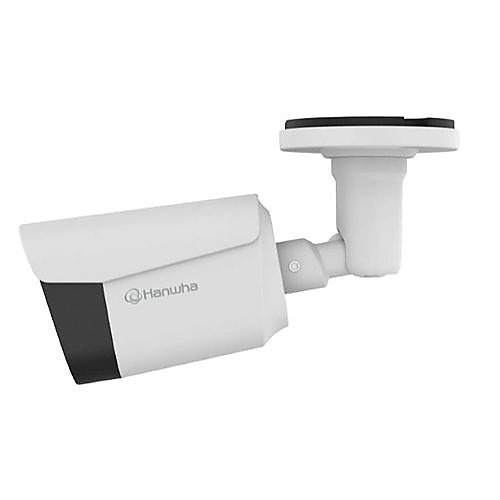

Hanwha ACO-6020R Wisenet Series 2MP IR Bullet Camera, 3.6mm Fixed Focal Lens, IP67, IK10, White
Image of 4
Key Features
- Reliable 24/7 surveillance: 2MP Full HD imaging and DWDR deliver clear daytime and low-light video so you can identify people and incidents with confidence.
- Extended night monitoring: Built-in IR illuminators reach up to ~82 ft (20 m) to maintain visibility after dark without added lighting.
- Robust environmental and impact protection: IP67 weatherproofing and IK10 vandal resistance ensure uninterrupted outdoor operation in harsh conditions.
- Easy deployment and legacy integration: Multi-protocol analog compatibility (AHD/TVI/CVI/CVBS) and coaxial control support fast plug-and-play installation on existing coax networks.
- Cost-effective, compact design: 3.6 mm fixed lens with an 81° horizontal FOV provides reliable coverage for entrances, parking zones, and small perimeters while keeping power and maintenance simple with 12V DC.
Quick Specifications
- Product Model
- ACO-6020R
- Brand Name
- Hanwha Vision
- Product Line
- Wisenet
- Product Name
- 2MP Analog HD IR Bullet
Frequently Bought Together
Hanwha ACO-6020R Wisenet Series 2MP IR Bullet Camera, 3.6mm Fixed Focal Lens, IP67, IK10, White
$54.47
8 items selected
Total: $2,153.13
Explore the details
Product information
ACO-6020R
Overview
Designed for dependable perimeter and site monitoring, the Hanwha Vision ACO-6020R 2MP IR Bullet Camera brings clear, actionable video to your security system. This WiseNet-series bullet camera captures Full HD 1080p at 30 fps with a 3.6 mm fixed focal lens and a wide 81° horizontal field of view, making it ideal for entrances, loading bays, and small lot coverage. Infrared LEDs provide effective night surveillance up to approximately 82 feet (20 m), while DWDR helps preserve detail in challenging lighting. Built to withstand the elements and abuse, the ACO-6020R carries IP67 weatherproofing and IK10 impact protection for reliable outdoor operation. Integrators will appreciate multi-protocol analog compatibility (AHD/TVI/CVI/CVBS), long coax transmission capability, and straightforward 12V DC power for quick installation and lower total cost of ownership. Whether upgrading analog infrastructure or deploying new monitoring points, this Hanwha Vision bullet camera balances performance, durability, and ease of use. Add the ACO-6020R to your security plan today to strengthen surveillance coverage and reduce blind spots.
Features
- Reliable 24/7 surveillance: 2MP Full HD imaging and DWDR deliver clear daytime and low-light video so you can identify people and incidents with confidence.
- Extended night monitoring: Built-in IR illuminators reach up to ~82 ft (20 m) to maintain visibility after dark without added lighting.
- Robust environmental and impact protection: IP67 weatherproofing and IK10 vandal resistance ensure uninterrupted outdoor operation in harsh conditions.
- Easy deployment and legacy integration: Multi-protocol analog compatibility (AHD/TVI/CVI/CVBS) and coaxial control support fast plug-and-play installation on existing coax networks.
- Cost-effective, compact design: 3.6 mm fixed lens with an 81° horizontal FOV provides reliable coverage for entrances, parking zones, and small perimeters while keeping power and maintenance simple with 12V DC.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Line | Wisenet |
| Product Name | 2MP Analog HD IR Bullet |
| Product Type | Bullet Camera |
| Product Model | ACO-6020R |
| Product Series | A |
| Manufacturer Part Number | ACO-6020R |
| Technical Information | |
| Lens Type | Fixed Focus |
| Night Vision | Yes |
| Field of View | Horizontal, Vertical |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.6mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 42° |
| Field of View (Horizontal) | 81° |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 82.02 ft |
| Certifications | |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/50,000 Second |
| Lens | |
| Focal Length | 3.6mm |
| Lens Included | Yes |
| Maximum Focal Length | 3.6mm |
| Physical Characteristics | |
| Color | White |
| Depth | 7.32" |
| Width | 2.76" |
| Height | 2.72" |
| Weight | 0.93lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Backbox Mount, Corner Mount |
| Video | |
| Analog Video Signal Format | AHD, CVBS, CVI, TVI |
| Miscellaneous | |
| Features | ,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12v DC power, 2MP Full HD resolution at 30FPS, 3.6mm fixed focal lens FoV H - 81°/V - 42°, Day and Night (ICR), DWDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance max.500m |
| Indoor/Outdoor | Indoor |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
