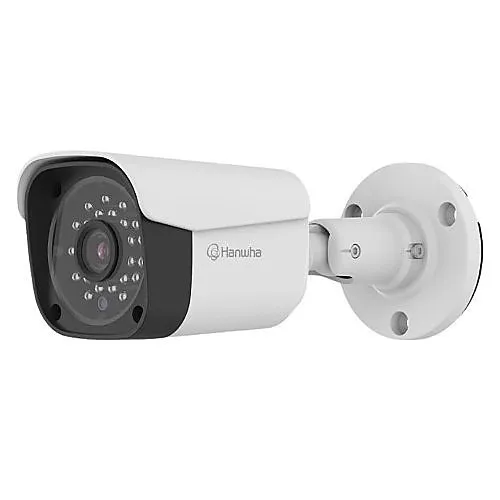

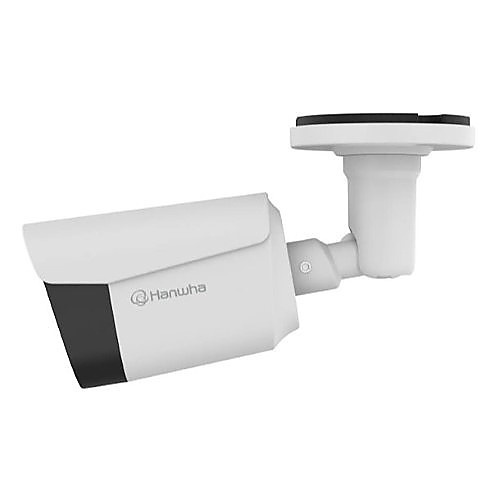

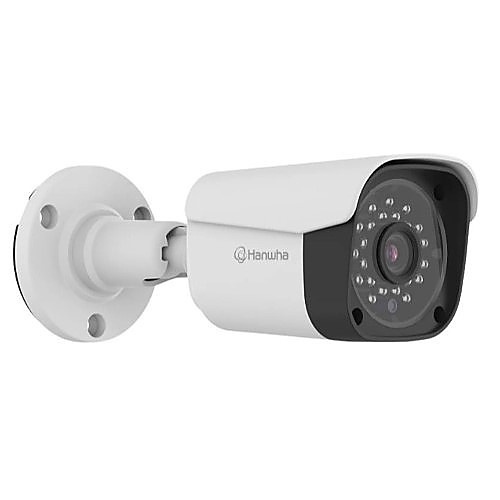

Hanwha ACO-8020R A-Series 5MP Analog HD Bullet Camera
Key Features
- Capture actionable detail with 5MP resolution at 30fps for clearer identification and improved evidence quality
- Integrates seamlessly with existing analog systems (AHD/TVI/CVI/CVBS) to upgrade surveillance without costly rewiring
- Built for outdoor use: IP67 weatherproof and IK10 vandal resistance for reliable perimeter and site monitoring
- 20m IR night vision and 0.08 Lux low-light performance deliver 24/7 monitoring in dark or variable lighting
- Plug-and-play coaxial control and up to 500m transmission over coax reduce installation time and overall project costs
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Vision
- Product Name
- 5MP Analog HD Bullet Camera
- Product Type
- Bullet Camera
Product Information Tabs
Overview
For dependable, high-value surveillance at the perimeter, the Hanwha Vision ACO-8020R A-Series 5MP Analog HD Bullet Camera delivers clear, actionable video and simplified deployment. This Hanwha Vision bullet camera captures 5MP images at 30fps, making it ideal for identification tasks in retail, parking lots, and facility monitoring. Multi-protocol compatibility (AHD/TVI/CVI/CVBS) lets you integrate the camera with existing analog infrastructure without expensive upgrades, while coaxial control and plug-and-play setup speed installations and reduce labor costs. Engineered for real-world security, the ACO-8020R combines IP67 weatherproofing and IK10 impact resistance with 20m IR night vision and strong low-light sensitivity (0.08 Lux at F1.6) to provide reliable 24/7 surveillance in harsh environments. DWDR helps maintain image clarity across mixed lighting scenes so operators and VMS systems get usable footage. Choose the Hanwha Vision ACO-8020R for a cost-effective, robust analog HD solution—perfect for perimeter security, retail loss prevention, and remote site monitoring. Contact sales or order now to add durable, high-resolution coverage to your security system.
Features
- Capture actionable detail with 5MP resolution at 30fps for clearer identification and improved evidence quality
- Integrates seamlessly with existing analog systems (AHD/TVI/CVI/CVBS) to upgrade surveillance without costly rewiring
- Built for outdoor use: IP67 weatherproof and IK10 vandal resistance for reliable perimeter and site monitoring
- 20m IR night vision and 0.08 Lux low-light performance deliver 24/7 monitoring in dark or variable lighting
- Plug-and-play coaxial control and up to 500m transmission over coax reduce installation time and overall project costs
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 5MP Analog HD Bullet Camera |
| Product Type | Bullet Camera |
| Product Model | ACO-8020R |
| Product Series | A |
| Manufacturer Part Number | ACO-8020R |
| Technical Information | |
| Lens Type | Fixed Focus |
| Night Vision | Yes |
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 63.4° |
| Field of View (Horizontal) | 83.9° |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Certifications | |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 0-90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/50,000 Second |
| Lens | |
| Focal Length | 3.6mm |
| Maximum Focal Length | 3.6mm |
| Physical Characteristics | |
| Color | White |
| Depth | 7.32" |
| Width | 2.76" |
| Height | 2.72" |
| Weight | 0.93lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 2.3" |
| Mount Type | Corner Mount, Pole Mount, Wall Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | ,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12v DC power, 3.6mm fixed focal lens FoV H - 94°/V - 54°, 5MP resolution at 30FPS, 4MP at CVI, Day and Night (ICR), DWDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance max.500m |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
