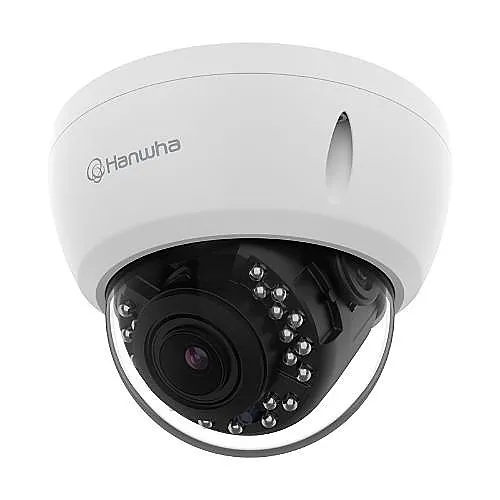

Hanwha ACV-8081R A-Series 5MP IR Vandal Dome Camera 3.5-10.5mm Lens
Image of 2
Key Features
- High-resolution 5MP imaging for clear identification and forensic-grade evidence capture
- 3x motorized varifocal (3.5–10.5mm) lens lets you fine-tune coverage remotely for focused monitoring
- IR night vision up to 20m ensures reliable 24/7 surveillance in low-light or no-light conditions
- IK10 impact protection and IP66/IP67 weatherproofing deliver vandal- and weather-resistant performance outdoors
- Multi-protocol analog HD compatibility and long coax transmission (up to 500m) simplify upgrades and installation
Quick Specifications
- Product Model
- ACV-8081R
- Brand Name
- Hanwha Vision
- Product Name
- 5MP Analog HD Vandal Dome Camera
- Product Type
- Dome Camera
Explore the details
Product information
ACV-8081R
Overview
Designed for demanding security and monitoring applications, the Hanwha Vision ACV-8081R A-Series 5MP IR vandal dome camera delivers dependable, high-quality surveillance for indoor and outdoor installations. This vandal-resistant dome combines a 5MP sensor with a 3.5–10.5mm motorized varifocal lens (3x optical zoom) to capture clear, actionable video at up to 30 fps, making it ideal for perimeter, retail, and parking lot monitoring. Built-in infrared LEDs provide up to 20 meters of night vision, while WDR and low-light sensitivity maintain image clarity across challenging lighting conditions. Robust IK10 impact resistance and IP66/IP67 ingress protection ensure the camera continues to operate in harsh environments, and multi-protocol analog HD support (CVI/TVI/AHD/CVBS) plus long-range coax transmission simplify upgrades to existing CCTV infrastructure. With easy installation, coaxial control and 12V DC power, the ACV-8081R lets security teams deploy reliable surveillance quickly. Choose this Hanwha Vision vandal dome for durable, high-resolution security monitoring — contact sales or add to your solution for improved site protection.
Features
- High-resolution 5MP imaging for clear identification and forensic-grade evidence capture
- 3x motorized varifocal (3.5–10.5mm) lens lets you fine-tune coverage remotely for focused monitoring
- IR night vision up to 20m ensures reliable 24/7 surveillance in low-light or no-light conditions
- IK10 impact protection and IP66/IP67 weatherproofing deliver vandal- and weather-resistant performance outdoors
- Multi-protocol analog HD compatibility and long coax transmission (up to 500m) simplify upgrades and installation
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 5MP Analog HD Vandal Dome Camera |
| Product Type | Dome Camera |
| Product Model | ACV-8081R |
| Product Series | A |
| Country of Origin | KR |
| Manufacturer Part Number | ACV-8081R |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 3.0x |
| Field of View | Diagonal, Horizontal, Vertical |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared (IR) |
| Maximum Frame Rate | 30fps |
| Wide Dynamic Range | Yes |
| Minimum Focal Length | 3.50mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 60.00° |
| Field of View (Horizontal) | 82.0° |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Certifications | |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 0-90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/30,000 Second |
| Lens | |
| Focal Length | 3.5mm |
| Lens Included | Yes |
| Maximum Focal Length | 3.50mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 1.21lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 5.20" |
| Mount Type | Ceiling Mount, Corner Mount, Pole Mount, Wall Mount |
| Product Replacements & Other Alternatives | |
| Model Number Alternative | DS-2CE57H0T-VPITF 2.8MM, DS-2CE72HFT-F28 2.8MM, DS-2CE59H8T-AVPIT3ZF, DS-2CE57U1T-VPITF 2.8MM |
| Video | |
| Maximum Resolution | 2592 x 1944 |
| Miscellaneous | |
| Features | ,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12v DC power, 3.5mm-10.5mm (3x) motorized varifocal, 5MP resolution at 30FPS, 4MP at CVI, Day and Night (ICR), WDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance max.500m |
| Impact Protection Rating | IK10 |
