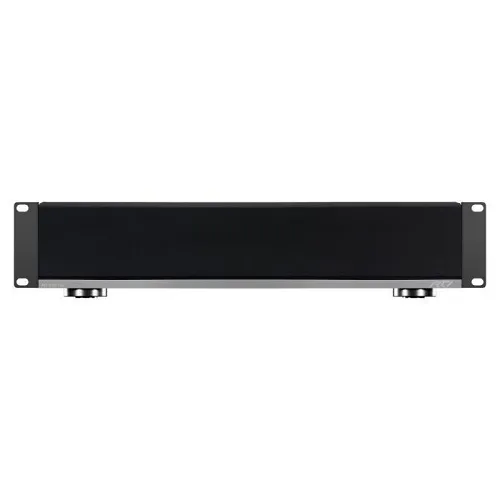

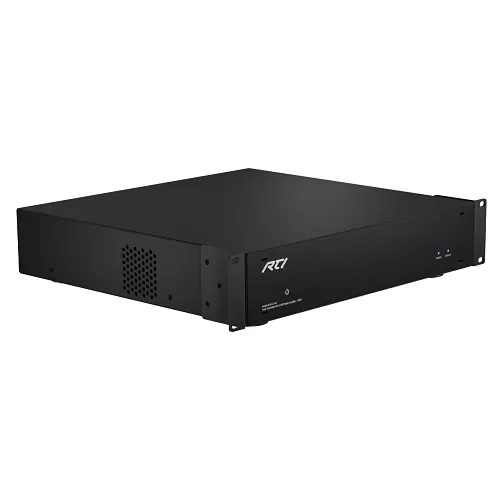

RTI AD-810-100 8x10 DSP Matrix Amplifier, 100W

Designed for commercial audio, security paging and surveillance monitoring applications, the RTI AD-810-100 8x10 DSP Matrix Amplifier delivers flexible multi-zone audio distribution with professional-grade control. This RTI pro amplifier routes eight stereo sources to ten zones while providing eight amplified zones at 100W per channel using efficient Class D Cool Power technology—ensuring clean, powerful sound without excessive heat. Integrators can fine-tune each zone with a 5-band parametric EQ, mixing and auto-ducking to prioritize microphones or alarm announcements, and mirror digital inputs for consistent source management. Configure DSP, routing and monitoring via the intuitive web GUI, RS-232 or IP to integrate with security, surveillance and building control systems. For larger projects, units can be bridged to 200W or combined for up to 64 amplified zones, making the AD-810-100 a scalable solution for campuses, retail, hospitality and control rooms. Backed by commercial features and a 3-year warranty, it’s ideal for installers who need dependable, controllable audio for safety and monitoring. Contact us to spec the AD-810-100 for your next security or AV deployment.

• Flexible 8x10 DSP matrix lets integrators route any of eight sources to ten zones for streamlined paging, background music and security audio
• Eight amplified zones at 100W per channel (Class D Cool Power) for clear, reliable sound with low heat and high efficiency
• Built-in 5-band parametric EQ, mixing and auto-ducking to tailor audio per space and prioritize emergency paging or doorbell/announcements

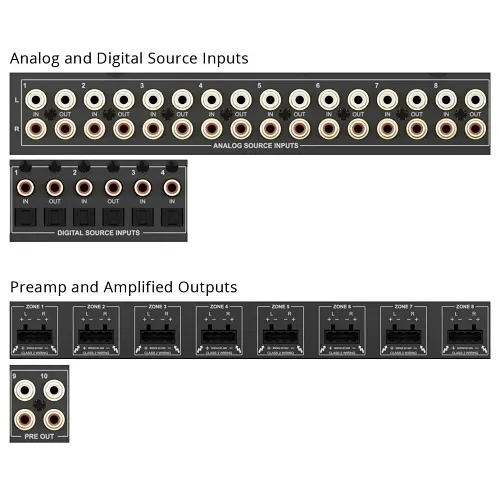

• Two stereo preamp outputs and bridgeable channels enable subwoofer or higher-power amplifier integration and expand system power to 200W when needed
• Network and control ready with IP, RS-232 and web GUI for fast configuration, monitoring and seamless integration into CCTV or building control systems
