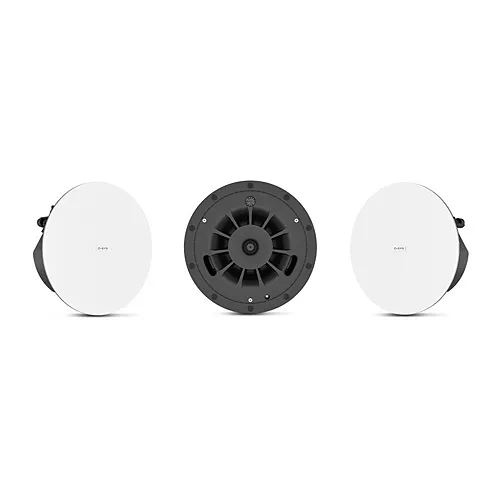

QSC AD-C4T-LPZB-WH Ceiling Mount Loudspeaker, Low Profile, Zero Bezel, White
Image of 2
Key Features
- Discreet, modern appearance: zero-bezel, low-profile design blends into ceilings for unobtrusive foreground and background audio in commercial and security environments.
- Consistent, intelligible coverage: 4.5" two-way driver and DMT waveguide deliver smooth, uniform frequency response across the coverage area for paging and monitoring.
- Flexible system integration: 16 Ω direct connect or 70/100V transformer options simplify deployment across AV, retail, and surveillance systems.
- Fast installation and serviceability: snap-fit magnetic grille and 3x double-stepped dog-ear mounting speeds up installs and maintenance.
- Scalable audio management: compatible with Q-SYS Intrinsic Correction and CX-Q amplifiers for centralized control and optimized performance.
Quick Specifications
- Product Model
- AD-C4T-LPZB
- Brand Name
- QSC
- Product Line
- AcousticDesign
- Product Series
- AD-C
Explore the details
Product information
AD-C4T-LPZB-WH
Overview
For integrators and facility managers who need high-quality, unobtrusive audio for paging, retail, and security monitoring, the QSC AD-C4T-LPZB-WH ceiling loudspeaker delivers dependable, professional sound in a low-profile package. This AcousticDesign pro speaker features a 4.5" two-way driver and Directivity Matched Transition (DMT) waveguide to provide smooth, uniform coverage—improving speech intelligibility for public address, surveillance audio feeds, and situational monitoring. With selectable 16 Ω direct-connect or 70/100V transformer options, the AD-C4T-LPZB adapts easily to distributed audio systems and large-scale installations. Installers appreciate the snap-fit magnetic grille and long-travel dog-ear mounting that reduce labor time and leave a blemish-free finish with a removable logo. The zero-bezel aesthetic integrates seamlessly into modern interiors while the unit’s compatibility with Q-SYS Intrinsic Correction and CX-Q amplifiers lets you tune performance for demanding AV or security applications. Backed by a 3-year limited warranty, this QSC ceiling mount loudspeaker is ideal for corporate AV, retail paging, transportation hubs, and surveillance-driven monitoring systems—contact sales or add to your spec sheet today.
Features
- Discreet, modern appearance: zero-bezel, low-profile design blends into ceilings for unobtrusive foreground and background audio in commercial and security environments.
- Consistent, intelligible coverage: 4.5" two-way driver and DMT waveguide deliver smooth, uniform frequency response across the coverage area for paging and monitoring.
- Flexible system integration: 16 Ω direct connect or 70/100V transformer options simplify deployment across AV, retail, and surveillance systems.
- Fast installation and serviceability: snap-fit magnetic grille and 3x double-stepped dog-ear mounting speeds up installs and maintenance.
- Scalable audio management: compatible with Q-SYS Intrinsic Correction and CX-Q amplifiers for centralized control and optimized performance.
| General Information | |
|---|---|
| Brand Name | QSC |
| Product Line | AcousticDesign |
| Product Model | AD-C4T-LPZB |
| Product Series | AD-C |
| Manufacturer Part Number | AD-C4T-LPZB-WH |
| Technical Information | |
| Impedance | 16Ohm |
| Speaker Size | 4.50" |
| Physical Characteristics | |
| Size | 4.50" |
| Depth | 11.02" |
| Weight | 6.60lb |
| Product Information | |
| Mount Type | Ceiling Mount |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | AD-C4T-LP |
| Warranty | |
| Limited Warranty | 3-Year |
