QSC AD-C4T-ZB-WH 4.5-Inch Two-Way Ceiling Speakers with 70/100V Transformer, White

SKU: AD-C4T-ZB-WH QSC
Image of QB-ADC4TZBWH

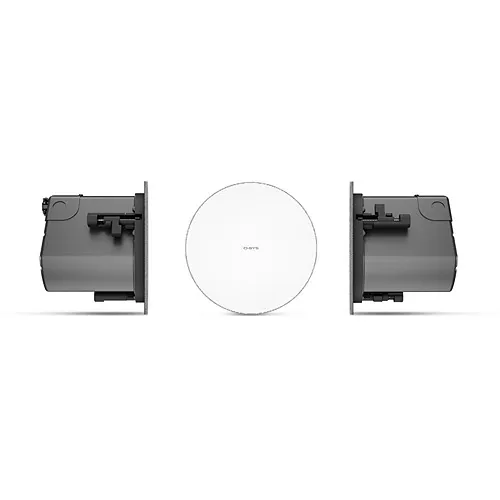

Product images for QSC AD-C4T-ZB-WH 4.5-Inch Two-Way Ceiling Speakers with 70/100V Transformer, White. 2 image(s) available. Click on image to view full size.

Key Features

  • Discreet zero-bezel design that blends into modern ceilings for a clean, professional installation
  • 70/100V transformer with 16-ohm bypass for flexible distributed-audio or low-impedance setups
  • DMT (Directivity Matched Transition) waveguide for consistent, intelligible voice and music coverage
  • Snap-fit magnetic grille and removable logo for fast maintenance and unobtrusive branding
  • Secure 3x double-stepped dog-ear mounting system for reliable installs in a variety of ceiling types
  • Integrates with Q-SYS Intrinsic Correction voicings for optimized voicing and system tuning

Quick Specifications

Product Model
AD-C4T-ZB
Brand Name
QSC
Product Line
AcousticDesign
Product Series
AD-C
View Full Technical Specifications

Product Information Tabs

Overview

Deliver clear, consistent audio for paging, background music and security monitoring with the QSC AD-C4T-ZB, a professional 4.5-inch two-way ceiling speaker built for commercial installations. The zero-bezel AcousticDesign unit provides a low-profile aesthetic while a built-in 70/100V transformer plus 16-ohm bypass lets integrators choose distributed speaker lines or direct low-impedance connections without compromise. The DMT waveguide yields uniform frequency response across the coverage area, ensuring announcements, surveillance feeds and background playlists remain intelligible and natural. Installers benefit from a snap-fit magnetic grille, blemish-free removable logo and robust 3x double-stepped dog-ear mount for fast, secure mounting and easy service access. Native compatibility with Q-SYS Intrinsic Correction voicings and CX-Q amplifiers simplifies system tuning for consistent tonal match across ceiling, pendant and surface installations. Backed by QSC’s 3-year limited warranty, the AD-C4T-ZB is ideal for retail, hospitality, corporate AV, education and security/surveillance projects. Specify the AD-C4T-ZB for dependable professional audio — contact sales or add to cart to start your install.

Features

  • Discreet zero-bezel design that blends into modern ceilings for a clean, professional installation
  • 70/100V transformer with 16-ohm bypass for flexible distributed-audio or low-impedance setups
  • DMT (Directivity Matched Transition) waveguide for consistent, intelligible voice and music coverage
  • Snap-fit magnetic grille and removable logo for fast maintenance and unobtrusive branding
  • Secure 3x double-stepped dog-ear mounting system for reliable installs in a variety of ceiling types
  • Integrates with Q-SYS Intrinsic Correction voicings for optimized voicing and system tuning
General Information
Brand Name QSC
Product Line AcousticDesign
Product Model AD-C4T-ZB
Product Series AD-C
Manufacturer Part Number AD-C4T-ZB-WH
Technical Information
Impedance 16 ohms
Speaker Size 4.50"
Physical Characteristics
Size 4.50"
Depth 9.06"
Width 9.06"
Height 6.94"
Weight 6.4 lb
Product Information
Mount Type Ceiling Mount
Warranty
Limited Warranty 3-Year
