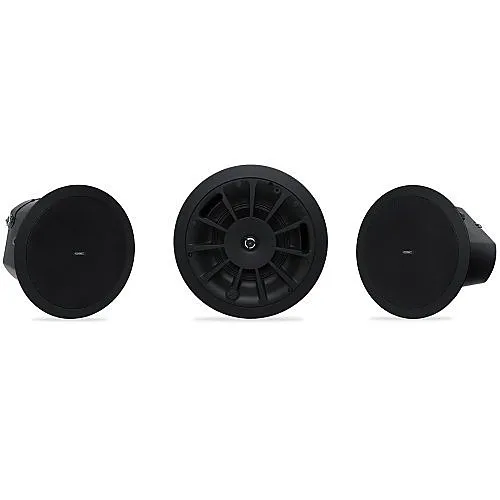

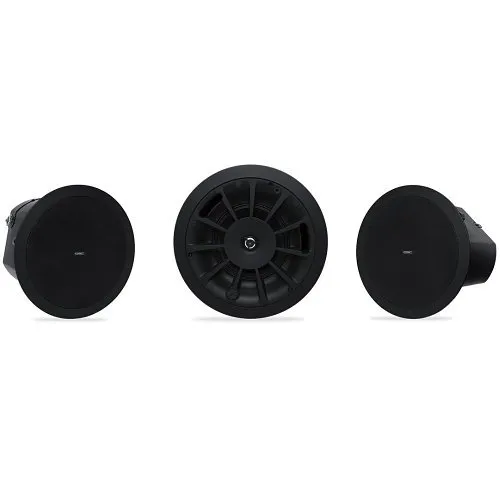

QSC AD-C6T-BK AcousticCoverage Series 6.5" Small Format Ceiling Mount Loudspeaker, 135 Degree Conical DMT, Black
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Uniform, natural sound across large ceiling coverage thanks to the 135° conical DMT waveguide, ensuring intelligible paging and background music in commercial spaces
- Simple, fast installation with snap-fit magnetic grille, 3-point dog‑ear blind mount and removable conduit cover for pre-wiring
- Tunable voicings via Q-SYS networked audio (Intrinsic Correction™) for optimized speech clarity in security, surveillance and monitoring systems
- Flexible deployment for distributed audio with low‑saturation 70/100V transformers and 16 Ω bypass for direct low‑impedance drives
- Durable, code‑friendly design (UL1480/UL2043) and blemish‑free removable logo for professional, discreet ceiling installations
Quick Specifications
- Product Model
- AD-C6T-BK
- Brand Name
- QSC
- Product Line
- AcousticDesign
- Product Name
- AcousticDesign AD-C6T-BK Speaker
Product Information Tabs
Overview
Deliver clear, consistent audio for paging, background music and security announcements with the QSC AD-C6T-BK AcousticDesign ceiling speaker. This pro speaker combines a 6.5" low-frequency driver and a 135° conical DMT waveguide to provide even coverage and intelligible speech across rooms and corridors—perfect for commercial AV, paging, surveillance and monitoring applications. Rated at 60W RMS with a wide 63 Hz–20 kHz frequency response, the AD-C6T-BK reproduces voice and music with low distortion and reliable SPL. Installers benefit from the snap-fit magnetic grille, three-point dog‑ear blind mount and removable conduit cover for fast, neat deployments. Integrate advanced voicing and networked audio control via Q-SYS for system-wide tuning and diagnostics. Built-in low-saturation 70/100V transformers and a 16 Ω bypass give you flexible wiring options for distributed systems. UL certifications and a discreet black finish make this ceiling mount speaker ideal for professional security, surveillance and campus monitoring projects. Specify the QSC AD-C6T-BK for dependable, high‑quality ceiling audio—order or contact our team for system design support.
Features
- Uniform, natural sound across large ceiling coverage thanks to the 135° conical DMT waveguide, ensuring intelligible paging and background music in commercial spaces
- Simple, fast installation with snap-fit magnetic grille, 3-point dog‑ear blind mount and removable conduit cover for pre-wiring
- Tunable voicings via Q-SYS networked audio (Intrinsic Correction™) for optimized speech clarity in security, surveillance and monitoring systems
- Flexible deployment for distributed audio with low‑saturation 70/100V transformers and 16 Ω bypass for direct low‑impedance drives
- Durable, code‑friendly design (UL1480/UL2043) and blemish‑free removable logo for professional, discreet ceiling installations
| General Information | |
|---|---|
| Brand Name | QSC |
| Manufacturer | QSC Audio |
| Product Line | AcousticDesign |
| Product Name | AcousticDesign AD-C6T-BK Speaker |
| Product Type | Speaker |
| Product Model | AD-C6T-BK |
| Product Series | AD-C |
| Manufacturer Part Number | AD-C6T-BK |
| Technical Information | |
| Material | Paper |
| Impedance | 16 ohms |
| Sensitivity | 88dB |
| Speaker Size | 6.5" |
| Crossover Type | 2-way |
| Audio | |
| RMS Output Power | 60W |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 63Hz |
| Physical Characteristics | |
| Size | 6.50" |
| Color | Black |
| Height | 9.3" |
| Weight | 9.48lb |
| Form Factor | Ceiling Mount |
| Product Information | |
| Diameter | 11" |
| Mount Type | Ceiling Mount |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmentally Friendly | Yes |
