QSC AD-C6T-HC AcousticDesign Series 6.5" 2-Way Ceiling Mount Loudspeaker, 75° Coverage, 120W, White

SKU: AD-C6T-HC QSC

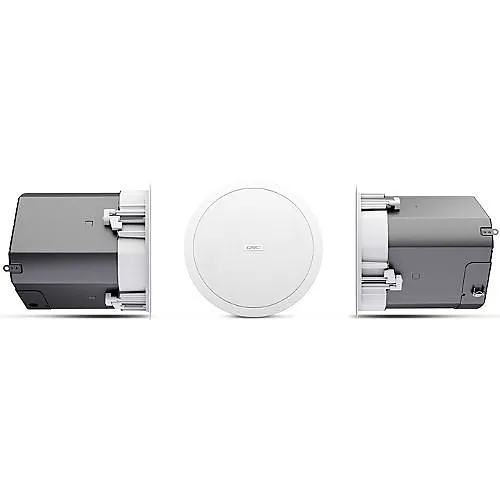

Image of QB-ADC6THC
Product images for QSC AD-C6T-HC AcousticDesign Series 6.5" 2-Way Ceiling Mount Loudspeaker, 75° Coverage, 120W, White. 2 image(s) available. Click on image to view full size.

Key Features

  • Delivers clear, intelligible audio in high-ceiling and reverberant spaces, improving speech clarity for paging, AV, and security announcements
  • Tight 75° coverage and 120W power handling focus sound where it’s needed, reducing spill and improving message intelligibility
  • Flexible installation with 16 Ω bypass plus multiple transformer taps for 70/100V systems, simplifying integration into paging and background-music networks
  • Quick, professional installs with snap-fit magnetic grille and 3x double-stepped dog-ear blind mount system that save labor time
  • Q-SYS-compatible Intrinsic Correction voicings and consistent AcousticDesign tonal match make system tuning and multi-zone deployments faster and more reliable

Quick Specifications

Brand Name
QSC
Manufacturer
QSC Audio
Product Line
AcousticDesign
Product Name
AcousticDesign™ Series AD-C6T-HC
View Full Technical Specifications

Product Information Tabs

Overview

Engineered for venues with high ceilings and reverberant environments, the QSC AD-C6T-HC ceiling loudspeaker delivers focused, intelligible audio for paging, AV, monitoring and security announcements. This AcousticDesign 6.5" two-way speaker pairs a 6.5" coaxial driver with a 1.4" compression driver to provide controlled 75° coverage and robust 120W power handling so spoken word and background music remain clear at distance.

Systems integrators will appreciate flexible system compatibility — a 16 Ω bypass plus multiple transformer taps for 70/100 Vrms installations — and advanced Intrinsic Correction voicings accessible via Q-SYS for consistent tonal balance across zones. The snap-fit magnetic grille and long-travel dog-ear blind mount system speed installation and produce a clean, low-profile finish suitable for lobbies, atriums, ballrooms, airports and retail environments that also require surveillance and security paging integration.

Choose the QSC AD-C6T-HC when you need reliable, high-ceiling performance that simplifies deployment and maximizes intelligibility — ideal for paging, monitoring and commercial AV projects.

Features

  • Delivers clear, intelligible audio in high-ceiling and reverberant spaces, improving speech clarity for paging, AV, and security announcements
  • Tight 75° coverage and 120W power handling focus sound where it’s needed, reducing spill and improving message intelligibility
  • Flexible installation with 16 Ω bypass plus multiple transformer taps for 70/100V systems, simplifying integration into paging and background-music networks
  • Quick, professional installs with snap-fit magnetic grille and 3x double-stepped dog-ear blind mount system that save labor time
  • Q-SYS-compatible Intrinsic Correction voicings and consistent AcousticDesign tonal match make system tuning and multi-zone deployments faster and more reliable
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticDesign
Product Name AcousticDesign™ Series AD-C6T-HC
Product Type Speaker
Product Model AD-C6T-HC
Product Series AD-C
Manufacturer Part Number AD-C6T-HC
Technical Information
Impedance 16 ohms
Sensitivity 90dB
Speaker Size 6.5"
Crossover Type 2-way
Audio
Number of Speakers 2
Physical Characteristics
Color White
Depth 13.4"
Width 13.4"
Height 12"
Weight 19lb
Form Factor Ceiling Mount
Enclosure Type Sealed
Product Information
Mount Type Ceiling Mount
Miscellaneous
Features 16 Ω bypass with multiple transformer taps for 70/100 Vrms systems, 3x double stepped, long travel dog-ear blind mount system, 6.5-inch, two-way coaxial driver with a 1.4-inch compression driver, 75° coverage pattern, High power handling and tight coverage area enables venues with high ceilings or reverberant spaces
