Warehouse: United States

QSC AD-C6T-LPZB-WH 2-Way, Low Profile, 135° Conical DMT Cealing Speaker, White, Priced Individually, Sold in Quantities of 2

SKU: AD-C6T-LPZB-WH QSC

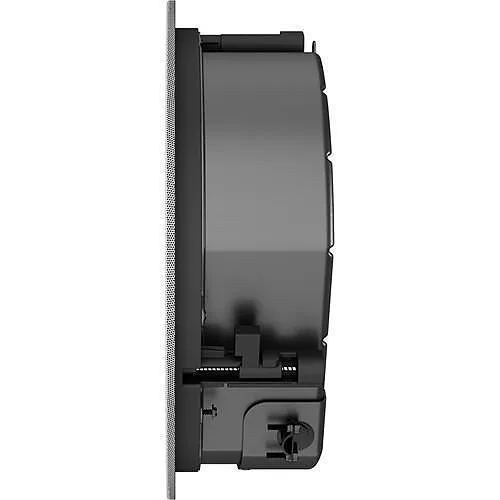

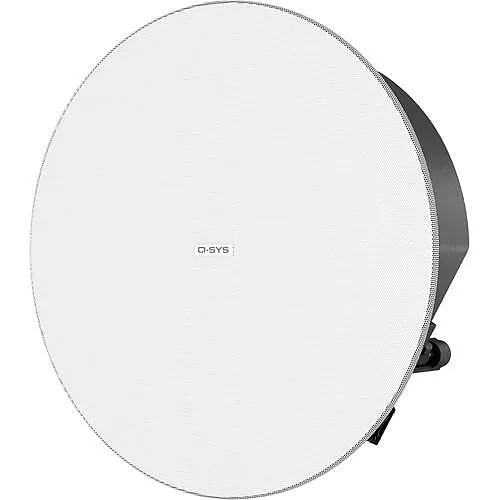

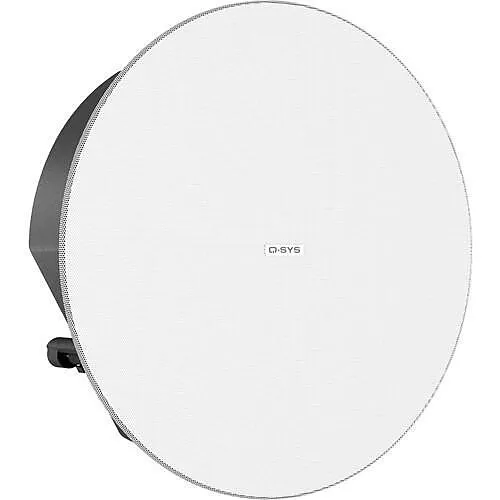

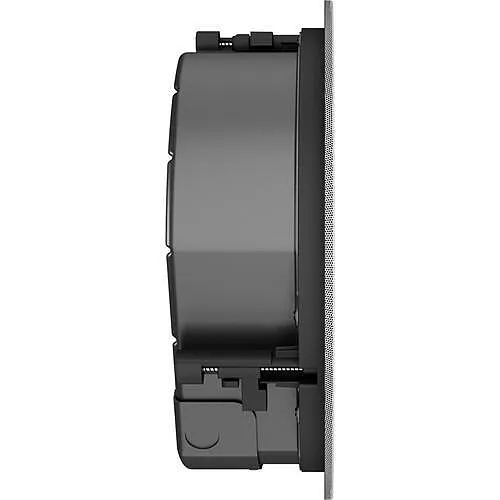

Image of QB-ADC6TLPZB
Product images for QSC AD-C6T-LPZB-WH 2-Way, Low Profile, 135° Conical DMT Cealing Speaker, White, Priced Individually, Sold in Quantities of 2. 5 image(s) available. Click on image to view full size.

Key Features

  • Low-profile, zero-bezel design that blends into modern ceilings for discreet, professional installations
  • 135° Directivity Matched Transition (DMT) waveguide for even coverage and consistent tonal balance across large areas
  • Built-in 70/100V multi-tap transformer with 16 Ω bypass to simplify distributed audio and integration with paging/security systems
  • Weather-treated 6.5" woofer and 0.75" aluminum dome tweeter delivering clear speech and music up to 112 dB SPL
  • Quick installation hardware (C-ring, tile rail, Euroblock connector) and magnetic snap-fit grille reduce labor time on site

Quick Specifications

Product Model
AD-C6T-LPZB-WH
Brand Name
QSC
Product Line
AcousticDesign
Product Name
QSC AcousticDesign 6.5" 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker (Pair, White)
View Full Technical Specifications

Product Information Tabs

Overview

Deliver clear, reliable sound for commercial and security-focused deployments with the QSC AcousticDesign AD-C6T-LPZB-WH ceiling speaker. This two-way, low-profile loudspeaker is engineered for foreground and background reinforcement in restaurants, retail, airports, and monitoring or surveillance control rooms where intelligibility matters. The speaker pairs a 6.5" weather-treated paper-cone woofer with a 0.75" aluminum dome tweeter mounted on a 135° DMT waveguide to provide uniform coverage and consistent tonal characteristics across the listening area. Installers benefit from built-in 70/100V multi-tap transformers (with 16 Ω bypass) for easy integration into distributed audio systems and paging networks. With a frequency response of 65 Hz–20 kHz and up to 112 dB SPL, the AD-C6T balances punchy low end with articulate highs for voice announcements and background music. The zero-bezel white grille and removable logo ensure a clean aesthetic for architectural applications, while included tile rails, C-ring, and Euroblock connector speed deployment. Ideal for commercial audio, security paging, and monitoring environments—specify the QSC AD-C6T-LPZB-WH for your next installation or contact sales for volume projects.

Features

  • Low-profile, zero-bezel design that blends into modern ceilings for discreet, professional installations
  • 135° Directivity Matched Transition (DMT) waveguide for even coverage and consistent tonal balance across large areas
  • Built-in 70/100V multi-tap transformer with 16 Ω bypass to simplify distributed audio and integration with paging/security systems
  • Weather-treated 6.5" woofer and 0.75" aluminum dome tweeter delivering clear speech and music up to 112 dB SPL
  • Quick installation hardware (C-ring, tile rail, Euroblock connector) and magnetic snap-fit grille reduce labor time on site
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticDesign
Product Name QSC AcousticDesign 6.5" 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker (Pair, White)
Product Type Loudspeaker
Product Series AD-C
Manufacturer Part Number AD-C6T-LPZB-WH
Technical Information
Impedance 16 ohms
Speaker Size 6.50"
Others
Model Number Replaces AD-C6T-LP
Physical Characteristics
Size 6.50"
Depth 13.37"
Width 13.37"
Height 3.95"
Weight 9.5 lb
Warranty
Limited Warranty 3-Year
