QSC AD-C.SUB AcousticCoverage Series 6.5" Dual Voice Coil Small Format Ceiling Subwoofer, Black

SKU: AD-CSUB-BK MPN: AD-C.SUB-BK QSC

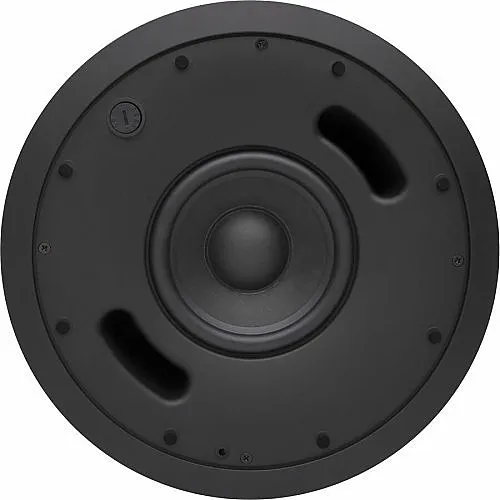

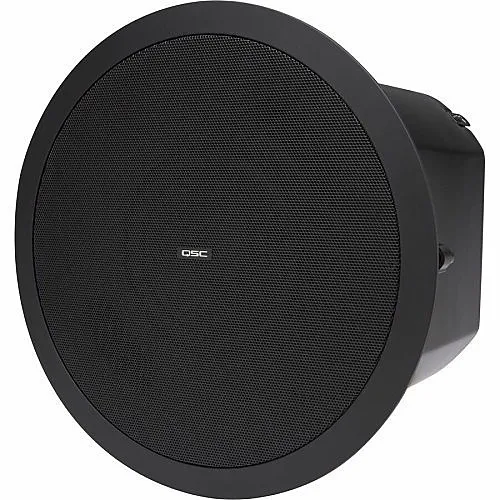

Image of QB-ADCSUBBK
Product images for QSC AD-C.SUB AcousticCoverage Series 6.5" Dual Voice Coil Small Format Ceiling Subwoofer, Black. 3 image(s) available. Click on image to view full size.

Key Features

  • Deep, accurate low end that enhances background music, paging and AV systems without overpowering the space
  • Dual voice-coil design for improved thermal handling and higher sustained output during continuous use
  • Small-format ceiling form factor for discreet installation in retail, hospitality and security monitoring environments
  • 100W RMS power handling and 6.5" driver deliver punchy bass down to 45 Hz for clear low-frequency reinforcement
  • Snap-fit magnetic grille, locking Euroblock connector and UL certifications for fast, code-compliant commercial installs

Quick Specifications

Product Model
AD-C.SUB
Brand Name
QSC
Product Line
AcousticDesign
Product Name
AD-C.SUB 6.5-Inch Dual Voice Coil, Small Format Ceiling Subwoofer
View Full Technical Specifications

Explore the details

Product information

AD-C.SUB-BK

Overview

Bring professional low-frequency support to ceiling installs with the QSC AD-C.SUB ceiling subwoofer. Designed for contractors and AV integrators, this Pro Subwoofer adds depth and clarity to background music, paging and security monitoring without taking up floor space. The compact 6.5" driver and 100W RMS power handling produce controlled bass from 45–150 Hz, so speech intelligibility and program material retain presence even at low listening levels. Dual voice-coil topology improves thermal dissipation for reliable performance in continuous-use environments, and the low-saturation 70/100V transformer and 4-ohm bypass make it flexible for distributed audio systems. Installers benefit from snap-fit magnetic grilles, locking 4-pole Euroblock connectors and a removable conduit cover for fast, tidy wiring. Intrinsic Correction voicings via MP-M mixers or Q-SYS provide consistent tuning across large systems, ideal for retail, hospitality, conferencing and integrated security/surveillance setups. UL1480 and UL2043 listings plus a 3-year warranty deliver peace of mind on commercial projects. Specify the QSC AD-C.SUB for concealed, high-performance bass reinforcement in your next AV or security installation.

Features

  • Deep, accurate low end that enhances background music, paging and AV systems without overpowering the space
  • Dual voice-coil design for improved thermal handling and higher sustained output during continuous use
  • Small-format ceiling form factor for discreet installation in retail, hospitality and security monitoring environments
  • 100W RMS power handling and 6.5" driver deliver punchy bass down to 45 Hz for clear low-frequency reinforcement
  • Snap-fit magnetic grille, locking Euroblock connector and UL certifications for fast, code-compliant commercial installs
30 of 30 specifications
Technical specifications for QSC AD-C.SUB AcousticCoverage Series 6.5" Dual Voice Coil Small Format Ceiling Subwoofer, Black
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticDesign
Product Name AD-C.SUB 6.5-Inch Dual Voice Coil, Small Format Ceiling Subwoofer
Product Type Woofer
Product Model AD-C.SUB
Product Series AD-C
Application/Usage Music
Packaged Quantity 1
Manufacturer Part Number AD-C.SUB-BK
Technical Information
Impedance 50Ohm
Sensitivity 86dB
Speaker Size 6"
Audio
RMS Output Power 100W
Number of Speakers 1
Maximum Frequency Response 150Hz
Minimum Frequency Response 45Hz
Physical Characteristics
Size 6.50"
Color Black
Height 10.0"
Material Paper Cone
Durability Weather Resistant
Form Factor Ceiling Mount
Product Information
Diameter 13.4"
Mount Type Ceiling Mount
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Dual voice-coil, Locking 4-pole Euroblock connectors, Low saturation, Removable conduit cover plate, Snap-fit magnetic grills
Indoor/Outdoor Indoor
Environmentally Friendly Yes
Environmental Certification RoHS
