QSC AD-DWL.360 AcousticDesign Series 5.25" 2-Way Outdoor Landscape Loudspeaker, 360˚ Coverage

SKU: AD-DWL360 MPN: AD-DWL.360 QSC

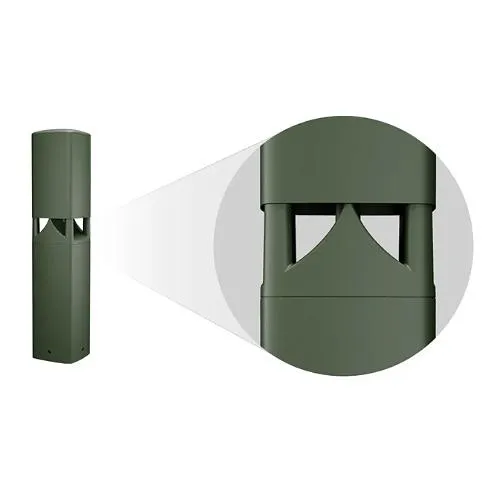

Image of QB-ADDWL360
Product images for QSC AD-DWL.360 AcousticDesign Series 5.25" 2-Way Outdoor Landscape Loudspeaker, 360˚ Coverage. 2 image(s) available. Click on image to view full size.

Key Features

  • Rugged, weatherproof design delivers reliable 360° outdoor audio even in salt-mist and high-humidity environments
  • Elevated bollard form and direct-to-concrete mounting ensure sound clears landscaping obstructions and resists tampering
  • 80W RMS power and wide 55 Hz to 25 kHz frequency response provide clear, full-range voice and ambient audio for public spaces
  • IP55 rating and stainless-steel hardware minimize maintenance and downtime for long-term installations
  • Native voicing via Q-SYS or CXD DSP (Intrinsic Correction) simplifies tuning for security, surveillance, and paging applications

Quick Specifications

Product Model
AD-DWL.360
Brand Name
QSC
Product Line
AcousticDesign
Product Name
AD-DWL.360 5.25-Inch, 2-Way, 360° Coverage
View Full Technical Specifications

Explore the details

Product information

AD-DWL.360

Overview

For professional outdoor installations that demand reliable coverage and low maintenance, the QSC AD-DWL.360 AcousticDesign landscape loudspeaker delivers full-range, 360° sound with rugged weather protection. Built by QSC for landscape, campus, and perimeter audio, this 5.25" 2-way outdoor loudspeaker offers 80W RMS power and a broad 55 Hz to 25 kHz response to reproduce intelligible voice paging, ambient background music, and security tones across gardens, parks, and plazas. The elevated bollard form factor projects sound above foliage and hardscape while permanent direct-to-concrete or in-earth mounting resists tampering and vandalism. IP55 ingress protection, UV-resistant polypropylene/fiberglass construction, and stainless-steel hardware ensure long service life in salt-mist and extreme-temperature conditions. Integration is straightforward: Intrinsic Correction voicing presets are available via Q-SYS or CXD DSP platforms to optimize performance for monitoring, surveillance, and paging systems. Ideal for use in security, surveillance audio, public address, and landscape soundscapes, the AD-DWL.360 simplifies system design and reduces lifecycle costs. Contact your sales rep to specify units for parks, campuses, transit hubs, or perimeter monitoring projects.

Features

  • Rugged, weatherproof design delivers reliable 360° outdoor audio even in salt-mist and high-humidity environments
  • Elevated bollard form and direct-to-concrete mounting ensure sound clears landscaping obstructions and resists tampering
  • 80W RMS power and wide 55 Hz to 25 kHz frequency response provide clear, full-range voice and ambient audio for public spaces
  • IP55 rating and stainless-steel hardware minimize maintenance and downtime for long-term installations
  • Native voicing via Q-SYS or CXD DSP (Intrinsic Correction) simplifies tuning for security, surveillance, and paging applications
24 of 24 specifications
Technical specifications for QSC AD-DWL.360 AcousticDesign Series 5.25" 2-Way Outdoor Landscape Loudspeaker, 360˚ Coverage
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticDesign
Product Name AD-DWL.360 5.25-Inch, 2-Way, 360° Coverage
Product Type Landscape Speakers
Product Series AD-DWL
Packaged Quantity 1
Manufacturer Part Number AD-DWL.360
Technical Information
Material Cone
Sensitivity 84dB
Crossover Type 2-way
Application/Usage Landscape
Audio
RMS Output Power 80W
Number of Speakers 1
Maximum Frequency Response 25 kHz
Minimum Frequency Response 55Hz
Physical Characteristics
Width 6.46"
Durability Dust Resistant, Humidity Resistant, Salt Resistant, Splash Resistant, Sprayproof, Tamper Resistant, Temperature Resistant, UV Resistant, Weather Resistant
Form Factor Direct Mount
Enclosure Type Sealed
Miscellaneous
Features Rugged Design
Indoor/Outdoor Outdoor
Environmentally Friendly Yes
Environmental Certification RoHS
