QSC AD-P.HALO-WH AcousticDesign Series 6.5" Integrated SUB/SAT Pendant Loudspeaker System, White

SKU: AD-PHALO-WH MPN: AD-P.HALO-WH QSC

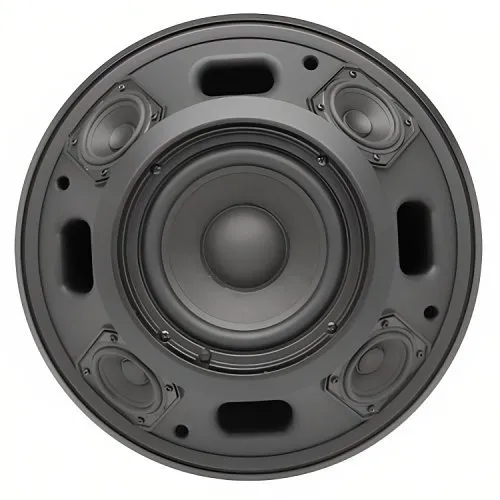

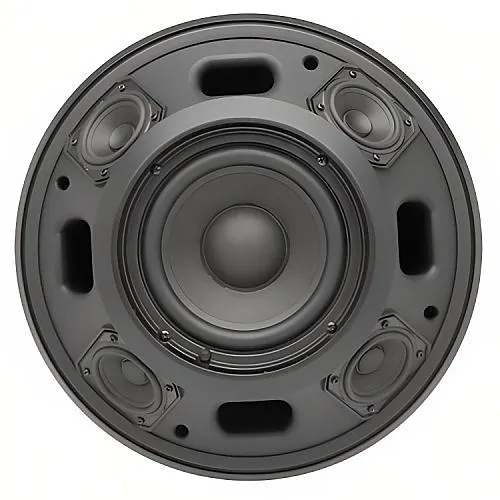

Image of QB-ADPHALOWH
Product images for QSC AD-P.HALO-WH AcousticDesign Series 6.5" Integrated SUB/SAT Pendant Loudspeaker System, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Ready-to-install all-in-one pendant with integrated 6.5" subwoofer and four satellites for faster, lower-cost deployments
  • 200W RMS power and 40 Hz–20 kHz bandwidth deliver musical, full-range background audio that enhances retail and hospitality atmospheres
  • IP54-rated, rugged ABS enclosure and UL1480A compliance for reliable operation in public and semi-protected spaces
  • Low-saturation 70/100V transformers with 6-ohm bypass and locking 4-pole Euro-block simplify wiring and large-zone distribution
  • Intrinsic Correction voicings and Q-SYS compatibility speed tuning and ensure tonal consistency across multi-zone installs

Quick Specifications

Product Model
AD-P.HALO-WH
Brand Name
QSC
Product Line
AcousticDesign
Product Name
AcousticDesign AD-P.HALO Speaker
View Full Technical Specifications

Explore the details

Product information

AD-P.HALO-WH

Overview

Drive the atmosphere in retail, hospitality or mixed-use environments with a single, ready-to-hang pendant that combines punchy low end and clear high-frequency detail. The QSC AD-P.HALO is a professional pendant SUB/SAT loudspeaker engineered to replace multiple components and reduce installation time and labor. With a 6.5" integrated subwoofer, four 2.75" satellites and 200W RMS power, the AD-P.HALO delivers the musicality and headroom needed for foreground or elevated background music across large floorplates. Its 40 Hz–20 kHz response and 86 dB sensitivity ensure intelligible vocals and rich music reproduction while the IP54-rated, rugged ABS enclosure and UL1480A listing provide the durability required for public spaces. Installers benefit from locking Euro-block termination, slip-lock fasteners, and compatibility with Intrinsic Correction via the Q-SYS ecosystem for quick tuning and consistent tonal balance across multiple AcousticDesign units. The AD-P.HALO also integrates cleanly with security, surveillance and monitoring systems in commercial AV deployments, allowing audio to be part of broader site management. Specify the QSC AD-P.HALO for your next retail, hospitality or security-integrated audio install and experience faster installs with premium sound.

Features

  • Ready-to-install all-in-one pendant with integrated 6.5" subwoofer and four satellites for faster, lower-cost deployments
  • 200W RMS power and 40 Hz–20 kHz bandwidth deliver musical, full-range background audio that enhances retail and hospitality atmospheres
  • IP54-rated, rugged ABS enclosure and UL1480A compliance for reliable operation in public and semi-protected spaces
  • Low-saturation 70/100V transformers with 6-ohm bypass and locking 4-pole Euro-block simplify wiring and large-zone distribution
  • Intrinsic Correction voicings and Q-SYS compatibility speed tuning and ensure tonal consistency across multi-zone installs
24 of 24 specifications
Technical specifications for QSC AD-P.HALO-WH AcousticDesign Series 6.5" Integrated SUB/SAT Pendant Loudspeaker System, White
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticDesign
Product Name AcousticDesign AD-P.HALO Speaker
Product Type Speaker
Product Series AD-P
Application/Usage Bar, Club, Gym, Hospitality, Music, Restaurant, Retail
Packaged Quantity 1
Manufacturer Part Number AD-P.HALO-WH
Technical Information
Sensitivity 86dB
Speaker Size 6.50"
Crossover Type 2-Way
Audio
RMS Output Power 200W
Number of Speakers 1
Maximum Frequency Response 20kHz
Minimum Frequency Response 40Hz
Physical Characteristics
Depth 17.15"
Width 13.60"
Height 13.60"
Material Paper Cone
Form Factor Ceiling Mount, Pendant Mount, Surface Mount
Product Information
Diameter 28.30'
Miscellaneous
Features Bass Reflex, Rugged Design
Environmental Certification UL
