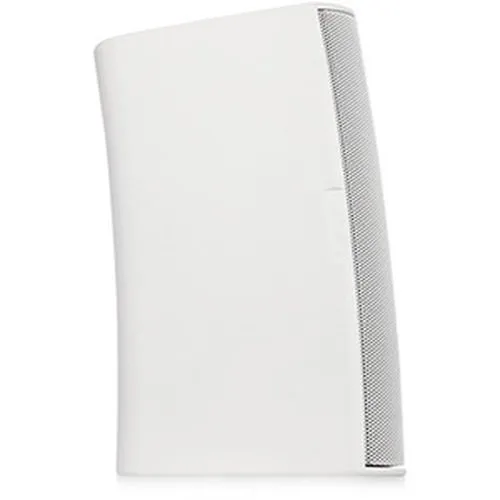

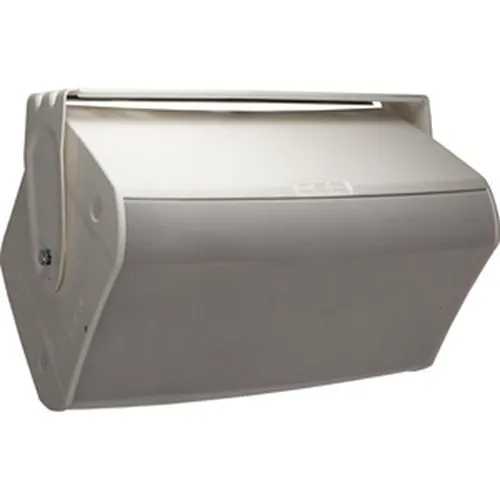

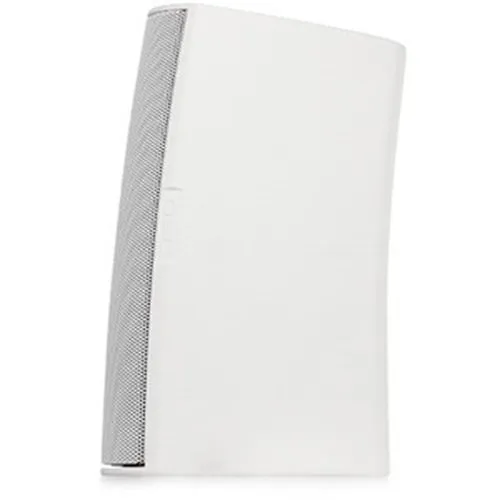

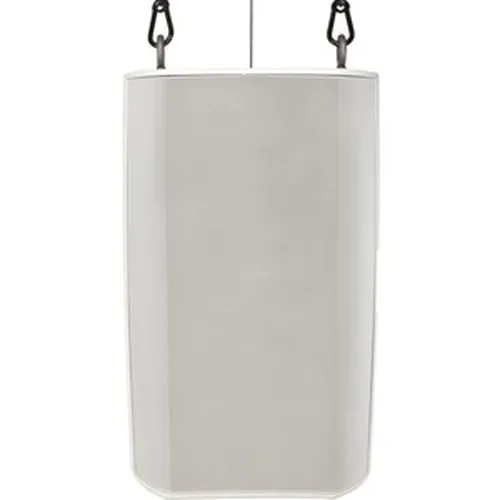

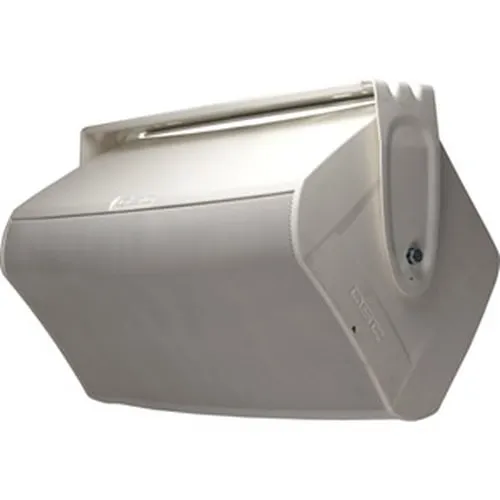

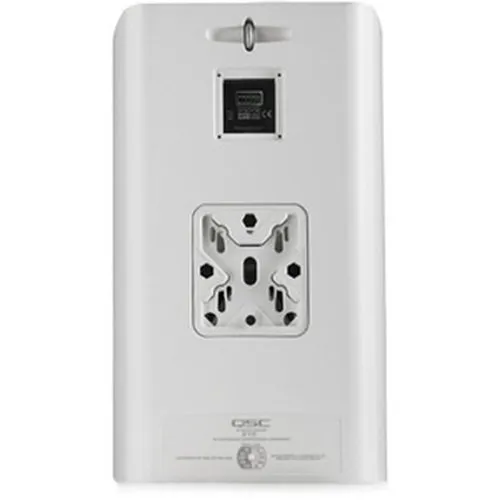

QSC AD-S12-WH AcousticDesign Series 12" 2-Way 300W Surface-Mount Loudspeaker, Single, White
Image of 7
Key Features
- Faster, safer installs with the award-winning X‑Mount system — reduces labor time and risk on large deployments
- Weather-resistant, IP54-rated enclosure and sealed input panel for reliable indoor/outdoor operation
- Powerful 300W RMS with a 12" woofer delivers punchy low end and clear speech for paging and background music
- DMT-engineered 75° conical coverage and 95 dB sensitivity ensure even, intelligible coverage across listening areas
- 8 Ω nominal impedance for broad amplifier compatibility and seamless integration with QSC Q-Sys networks
- Discreet, paintable design that blends into aesthetic-sensitive environments such as retail, security, and corporate spaces
Quick Specifications
- Product Model
- AD-S12
- Brand Name
- QSC
- Product Line
- AcousticDesign
- Product Name
- AcousticDesign AD-S12 Speaker
Explore the details
Product information
AD-S12-WH
Overview
Designed for integrators who demand reliable installed sound, the QSC AcousticDesign AD-S12 surface-mount loudspeaker delivers full-range, high-impact audio where clarity and coverage matter most. The AD-S12 pairs a weather-treated 12" woofer with a 1" compression driver and DMT directivity-matched transition to provide consistent 75° conical coverage and exceptional off-axis response — ideal for paging, background music, and voice announcements in retail, corporate, and security environments. With 300W RMS handling, 95 dB sensitivity, and an 8 Ω nominal impedance, this QSC pro speaker provides the headroom and amplifier compatibility needed for robust system designs. Rugged ABS enclosures, powder-coated aluminum grilles, and sealed input panels exceed IP54 splash and dust resistance for dependable performance in indoor/outdoor zones. Installers benefit from tool-free articulation marks and knurled pivots that prevent drift, speeding deployment across large facilities and surveillance sites. For integrators deploying audio for security, surveillance, or monitoring systems, the AD-S12 integrates cleanly with Q-Sys processing and CXD amplification. Add the QSC AD-S12 to your next installed audio or paging project — contact us for CAD/BIM files and system design support.
Features
- Faster, safer installs with the award-winning X‑Mount system — reduces labor time and risk on large deployments
- Weather-resistant, IP54-rated enclosure and sealed input panel for reliable indoor/outdoor operation
- Powerful 300W RMS with a 12" woofer delivers punchy low end and clear speech for paging and background music
- DMT-engineered 75° conical coverage and 95 dB sensitivity ensure even, intelligible coverage across listening areas
- 8 Ω nominal impedance for broad amplifier compatibility and seamless integration with QSC Q-Sys networks
- Discreet, paintable design that blends into aesthetic-sensitive environments such as retail, security, and corporate spaces
| General Information | |
|---|---|
| Brand Name | QSC |
| Manufacturer | QSC Audio |
| Product Line | AcousticDesign |
| Product Name | AcousticDesign AD-S12 Speaker |
| Product Type | Speaker |
| Product Model | AD-S12 |
| Product Series | AD-S |
| Application/Usage | Indoor, Outdoor |
| Manufacturer Part Number | AD-S12-WH |
| Technical Information | |
| Impedance | 8Ohm |
| Sensitivity | 95dB |
| Speaker Size | 12.00" |
| Crossover Type | 2-way |
| Wireless Speaker | No |
| Audio | |
| RMS Output Power | 300W |
| Number of Speakers | 1 |
| Maximum Frequency Response | 20kHz |
| Minimum Frequency Response | 52Hz |
| Certifications | |
| TAA Compliant | No |
| Physical Characteristics | |
| Size | 12" |
| Color | White |
| Depth | 12.72" |
| Width | 13.90" |
| Height | 23.40" |
| Material | Paper |
| Durability | Weather Resistant |
| Product Information | |
| Diameter | 12.00" |
| Mount Type | Surface Mount |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Lightweight, Sealed input panel |
| Indoor/Outdoor | Indoor, Outdoor |
