QSC AD-S28TW-BK AcousticDesign Surface Mount Subwoofer, Black

SKU: AD-S28TW-BK QSC

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

QSC AcousticDesign AD-S28Tw Indoor/Outdoor Surface Mount Woofer - 200 W RMS - Black

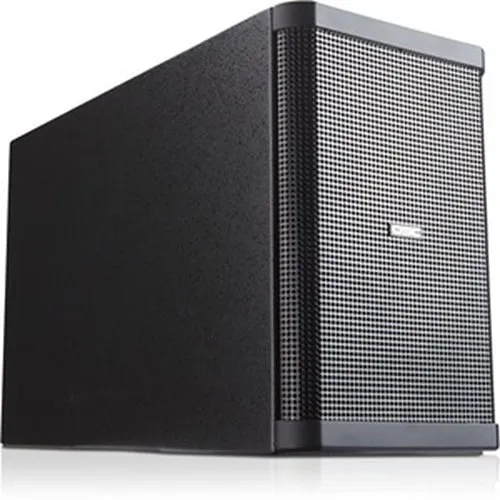

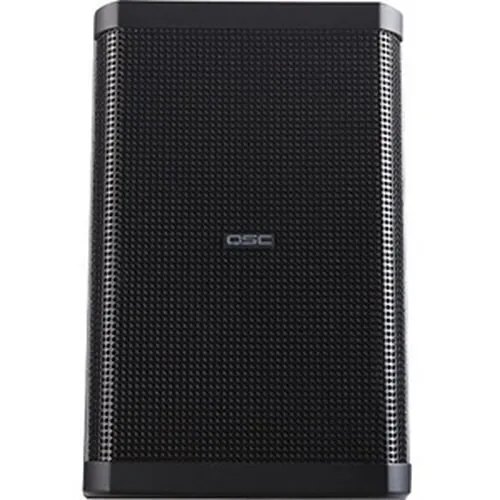

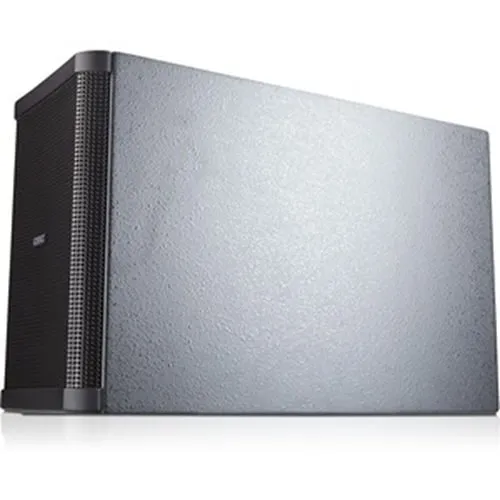

Product images for QSC AD-S28TW-BK AcousticDesign Surface Mount Subwoofer, Black. 5 image(s) available. Click on image to view full size.

Key Features

  • Deep, controlled bass to reinforce background music, paging and AV in commercial spaces without muddying speech or surveillance audio
  • Surface-mount design with weather-resistant enclosure for flexible indoor/outdoor installation near monitors, cameras and security equipment
  • High efficiency (94 dB sensitivity) and 200W RMS handling for reliable output with existing amplifiers and networking audio systems
  • Built-in passive 120 Hz low-pass filter and 8-ohm impedance simplify integration with AD Series speakers and system crossovers
  • Dual 8" polypropylene woofers deliver durable low-frequency extension and consistent performance in humid or high-use environments

Quick Specifications

Product Model
AD-S28Tw
Brand Name
QSC
Product Line
AcousticDesign
Product Name
Dual 8" Subwoofer
View Full Technical Specifications

Product Information Tabs

Overview

Add authoritative low end to professional AV, security and monitoring systems with the QSC AD-S28TW-BK AcousticDesign surface mount subwoofer. Purpose-built for integrators, this pro subwoofer supplies tight, intelligible bass that reinforces paging, background music and surveillance audio without overpowering speech or camera audio feeds. The AD-S28TW-BK pairs with QSC AD Series loudspeakers and delivers 200W RMS handling and a high 94 dB sensitivity for efficient output from existing amplifiers. Its dual 8" polypropylene woofers and ported, weather-resistant enclosure produce controlled bass that extends into the mid-30s Hz range, while the built-in passive 120 Hz low-pass simplifies crossover setup for system installers. Surface-mount form factor and durable finishes make it ideal for retail, hospitality, transportation hubs, and security/monitoring rooms where reliable low-frequency performance is required. Backed by QSC's AcousticDesign quality and a 3-year limited warranty, the AD-S28TW-BK is a practical upgrade to any pro audio, surveillance or monitoring deployment—specify it for your next installation or contact us for a system pairing recommendation.

Features

  • Deep, controlled bass to reinforce background music, paging and AV in commercial spaces without muddying speech or surveillance audio
  • Surface-mount design with weather-resistant enclosure for flexible indoor/outdoor installation near monitors, cameras and security equipment
  • High efficiency (94 dB sensitivity) and 200W RMS handling for reliable output with existing amplifiers and networking audio systems
  • Built-in passive 120 Hz low-pass filter and 8-ohm impedance simplify integration with AD Series speakers and system crossovers
  • Dual 8" polypropylene woofers deliver durable low-frequency extension and consistent performance in humid or high-use environments
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticDesign
Product Name Dual 8" Subwoofer
Product Type Woofer
Product Model AD-S28Tw
Product Series AD-S
Manufacturer Part Number AD-S28TW-BK
Technical Information
Material PP
Impedance 8 ohms
Sensitivity 94dB
Audio
Subwoofer Type Passive
RMS Output Power 200W
Maximum Frequency Response 165 Hz
Minimum Frequency Response 42Hz
Environmental Conditions
Sound Emission 94 dB
Physical Characteristics
Size 8"
Color Black
Depth 22.75"
Width 9.9"
Height 15.9"
Weight 43lb
Durability Weather Resistant
Form Factor Surface Mount
Enclosure Type Ported
Product Information
Diameter 8"
Mount Type Surface Mount
Warranty
Limited Warranty 3-Year
Miscellaneous
Indoor/Outdoor Indoor, Outdoor
