QSC AD-S6-WH AcousticDesign Series 6.5" 2-Way Weather Treated Surface Mount Speaker, 105° Conical DMT, Indoor Outdoor, White

SKU: AD-S6-WH QSC

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of QB-ADS6WH
Product images for QSC AD-S6-WH AcousticDesign Series 6.5" 2-Way Weather Treated Surface Mount Speaker, 105° Conical DMT, Indoor Outdoor, White. 6 image(s) available. Click on image to view full size.

Key Features

  • Delivers consistent, intelligible coverage across large areas with 105° Directivity Matched Transition (DMT) for reliable paging, background music and security monitoring
  • Weather‑treated 6.5" driver and IP54-rated construction protect performance outdoors and in damp environments for long-term installations
  • 150W RMS capability and 89 dB sensitivity provide punchy, clear audio even in noisy public spaces and surveillance zones
  • X‑Mount system enables fast, secure surface mounting and tool-free angle adjustments to aim sound precisely where its needed
  • QSC Q-SYS compatible voicings let integrators apply advanced tuning and Intrinsic Correction for consistent system-wide audio performance

Quick Specifications

Product Model
AD-S6-WH
Brand Name
QSC
Product Line
AcousticDesign
Product Name
AD-S6-WH Surface-Mount Loudspeaker
View Full Technical Specifications

Product Information Tabs

Overview

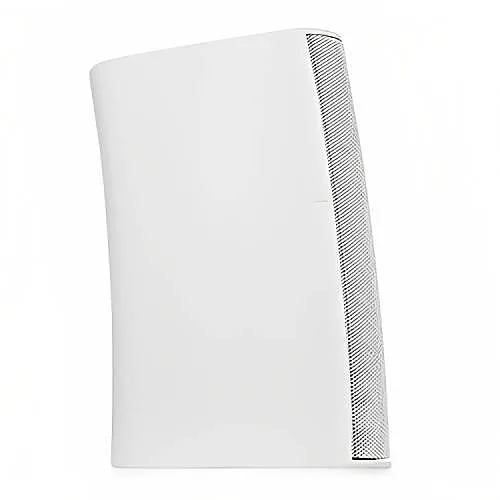

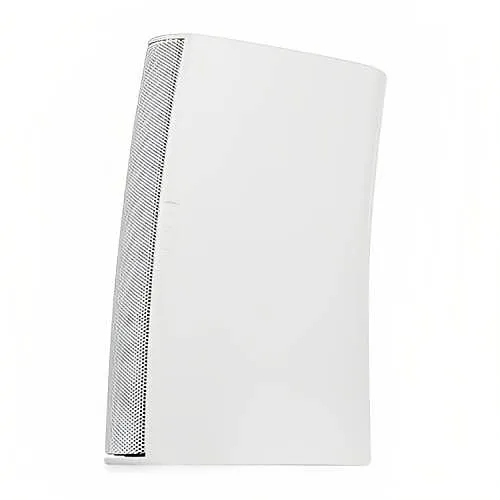

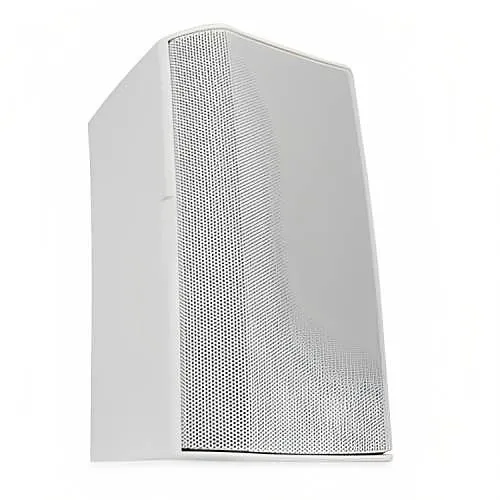

Built for dependable, high-quality audio in demanding commercial and surveillance environments, the QSC AD-S6-WH AcousticDesign series surface-mount speaker brings consistent coverage and weather-resistant durability to projects that require clear paging, background music and security monitoring. This QSC pro speaker pairs a weather-treated 6.5" woofer with a 105° conical Directivity Matched Transition (DMT) waveguide to maintain smooth, uniform frequency response across the listening area. With 150W RMS power handling and an 89 dB sensitivity rating, the AD-S6-WH delivers intelligible voice reproduction and musical detail in lobbies, retail spaces, transit hubs and outdoor covered areas.

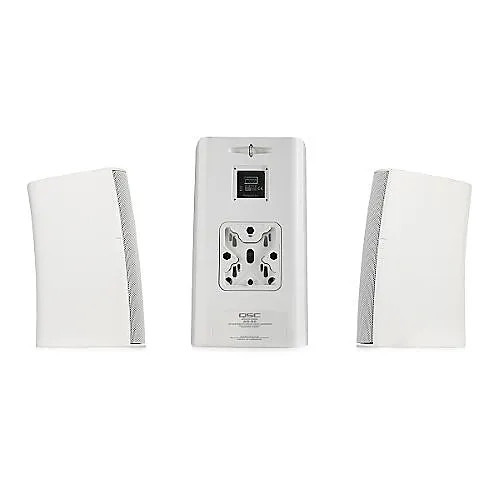

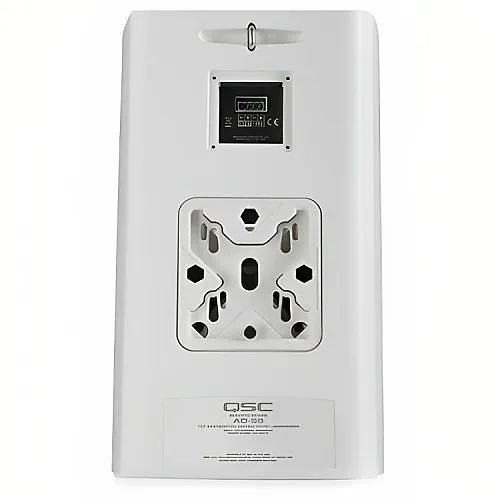

Designed for installers, the X-Mount system provides secure, no-slip angle adjustments while a sealed input panel and powder-coated aluminum grille meet IP54 dust and splash resistance standards. Integrators will appreciate Q-SYS compatibility and Advanced Intrinsic Correction voicings for streamlined tuning in networked audio systems. Ideal for pro audio, security audio, surveillance monitoring and mixed-use environments — upgrade your indoor/outdoor audio deployment with the reliable, easy-to-install AD-S6-WH.

Features

  • Delivers consistent, intelligible coverage across large areas with 105° Directivity Matched Transition (DMT) for reliable paging, background music and security monitoring
  • Weather‑treated 6.5" driver and IP54-rated construction protect performance outdoors and in damp environments for long-term installations
  • 150W RMS capability and 89 dB sensitivity provide punchy, clear audio even in noisy public spaces and surveillance zones
  • X‑Mount system enables fast, secure surface mounting and tool-free angle adjustments to aim sound precisely where its needed
  • QSC Q-SYS compatible voicings let integrators apply advanced tuning and Intrinsic Correction for consistent system-wide audio performance
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticDesign
Product Name AD-S6-WH Surface-Mount Loudspeaker
Product Type Speaker
Product Model AD-S6-WH
Product Series AD-S
Manufacturer Part Number AD-S6-WH
Technical Information
Impedance 16 ohms
Sensitivity 89dB
Speaker Size 6.5"
Crossover Type 2-way
Audio
RMS Output Power 150W
Number of Speakers 2
Maximum Frequency Response 20 kHz
Minimum Frequency Response 58Hz
Physical Characteristics
Color White
Depth 8.5"
Width 8.5"
Height 14.4"
Weight 11.6lb
Durability Dust Resistant, Splash Resistant, Weather Resistant
Product Information
Mount Type Surface Mount
Miscellaneous
Features 105 deg conical DMT coverage, 6.5-inch weather treated woofer, Advanced Intrinsic Correction voicings available via Q-SYS, Available in black (RAL 9011) or white (RAL 9010), Directivity Matched Transition (DMT) ensures smooth, uniform frequency response over the coverage area, Lightweight ABS enclosures offer long-term durability and lasting good looks, Meets IEC60529 IP-54, Sealed input panel cover and powder coated aluminum grilles, X-Mount system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
Indoor/Outdoor Indoor
