QSC AD-S6T-BK AcousticDesign Series 6.5" 2-Way 150W Surface-Mount Loudspeaker, Black

SKU: AD-S6T-BK QSC
QSC AcousticDesign AD-S6T 2-way Indoor/Outdoor Surface Mount Speaker - 150 W RMS - Black

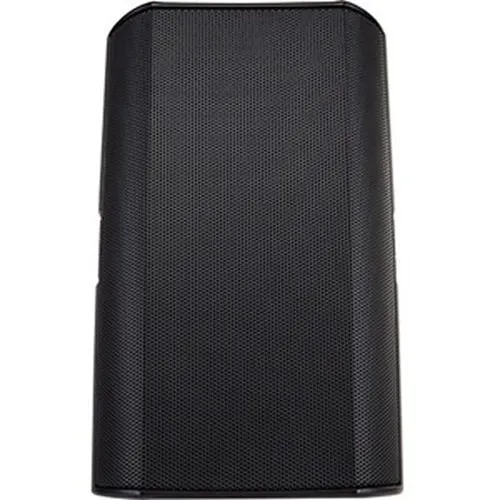

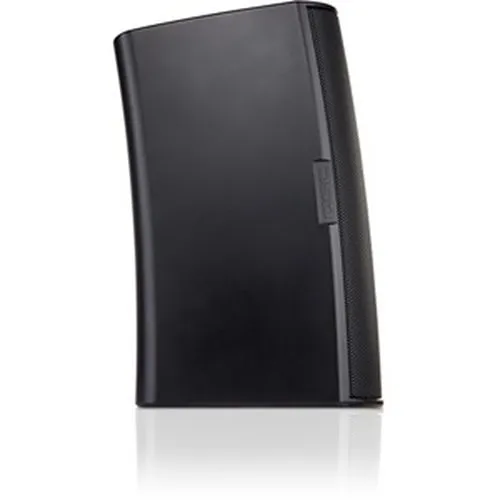

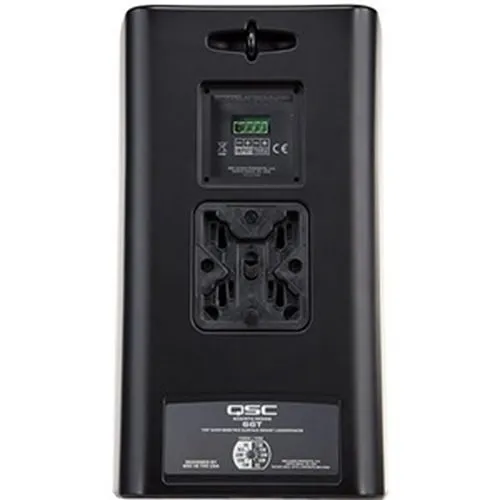

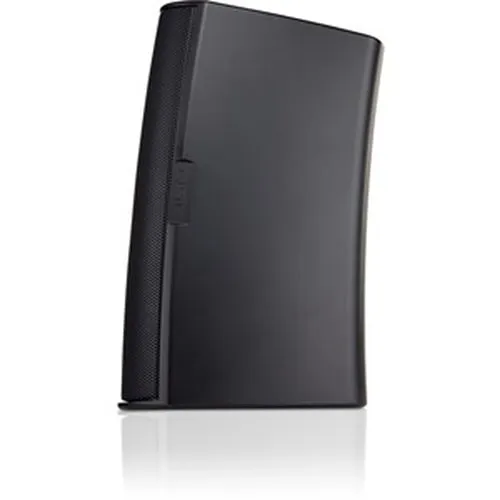

Product images for QSC AD-S6T-BK AcousticDesign Series 6.5" 2-Way 150W Surface-Mount Loudspeaker, Black. 5 image(s) available. Click on image to view full size.

Key Features

  • Reliable, full-range sound for installed audio: 150W RMS and a matched 6.5" woofer/tweeter deliver clear voice paging and music in commercial spaces.
  • Weather-resistant, secure installs: IP54-rated enclosure, sealed input panel and powder-coated grille protect audio systems in indoor/outdoor and monitored security environments.
  • Flexible system integration: 70/100V transformer with selectable taps plus 8Ω bypass simplifies distributed audio, paging, and surveillance audio feeds.
  • Faster, safer installation: award-winning X-Mount bracket and knurled pivot points enable repeatable horizontal or vertical mounting with minimal labor.
  • Consistent coverage and intelligibility: DMT directivity and 105° conical dispersion ensure even coverage for monitoring, background music and security announcements.

Quick Specifications

Product Model
AD-S6T-BK
Brand Name
QSC
Product Line
AcousticDesign
Product Name
AcousticDesign AD-S6T Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Deliver reliable, intelligible audio for paging, background music and security monitoring with the QSC AcousticDesign AD-S6T 6.5" 2-way surface-mount loudspeaker. Designed for professional installs, this QSC loudspeaker combines 150W RMS capability with a weather-treated 6.5" woofer and a 1" silk-dome tweeter to reproduce voice and music with clarity across a 105° coverage pattern—ideal for retail, hospitality, campus and surveillance-integrated environments. Built for real-world installations, the AD-S6T includes a low-loss 70/100V transformer with selectable taps and an 8Ω bypass for flexible system design, plus an IP54-rated sealed enclosure and powder-coated grille for dust and splash resistance. Installers benefit from the patented X-Mount system for fast, repeatable placement and compatibility with Q-Sys/CXD processing for Intrinsic Correction tuning. Whether you’re building a paging system, a monitored security zone, or a multi-room background audio network, the AD-S6T delivers dependable performance, simplified integration and durable reliability. Specify the QSC AD-S6T for professional installed audio and surveillance projects—contact sales or add to your system quote today.

Features

  • Reliable, full-range sound for installed audio: 150W RMS and a matched 6.5" woofer/tweeter deliver clear voice paging and music in commercial spaces.
  • Weather-resistant, secure installs: IP54-rated enclosure, sealed input panel and powder-coated grille protect audio systems in indoor/outdoor and monitored security environments.
  • Flexible system integration: 70/100V transformer with selectable taps plus 8Ω bypass simplifies distributed audio, paging, and surveillance audio feeds.
  • Faster, safer installation: award-winning X-Mount bracket and knurled pivot points enable repeatable horizontal or vertical mounting with minimal labor.
  • Consistent coverage and intelligibility: DMT directivity and 105° conical dispersion ensure even coverage for monitoring, background music and security announcements.
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticDesign
Product Name AcousticDesign AD-S6T Speaker
Product Type Speaker
Product Series AD-S
Packaged Quantity 2
Manufacturer Part Number AD-S6T-BK
Technical Information
Material Paper
Sensitivity 89dB
Crossover Type 2-way
Wireless Speaker No
Application/Usage Indoor, Outdoor
Audio
RMS Output Power 150W
Number of Speakers 2
Maximum Frequency Response 20 kHz
Minimum Frequency Response 60Hz
Certifications
TAA Compliant No
Physical Characteristics
Size 6.5"
Depth 8.5"
Width 8.5"
Height 14.4"
Weight 13.6lb
Durability Weather Resistant
Enclosure Type Sealed
Product Information
Diameter 6.50"
Miscellaneous
Features Lightweight, Sealed input panel
Indoor/Outdoor Indoor, Outdoor
