QSC AD-S6T-WH AcousticDesign Series 6.5" 2-Way Indoor/Outdoor Surface Mount Speaker, 150W, White

SKU: AD-S6T-WH QSC

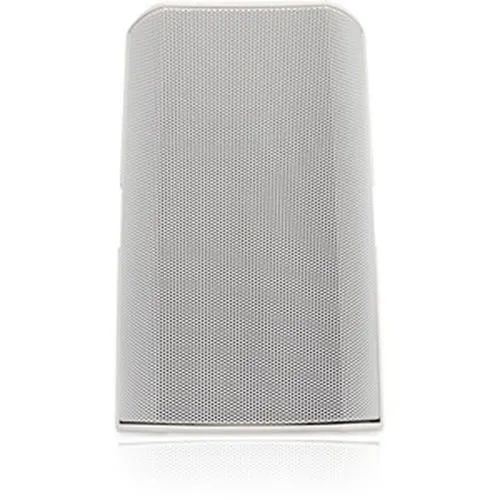

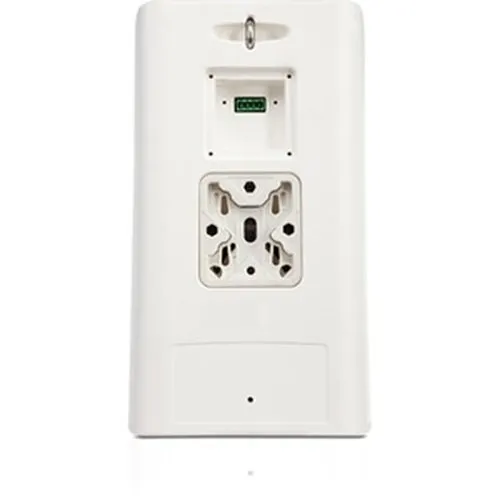

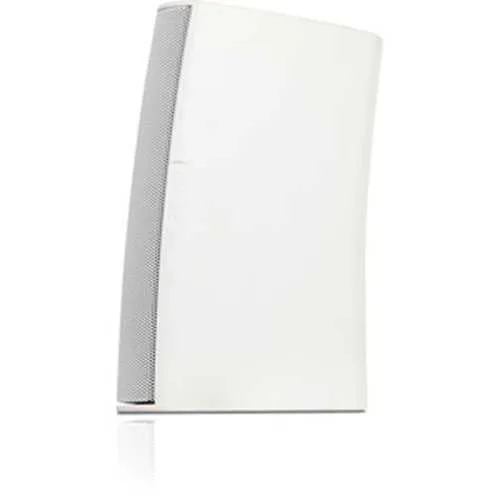

Image of QB-ADS6TWH
Product images for QSC AD-S6T-WH AcousticDesign Series 6.5" 2-Way Indoor/Outdoor Surface Mount Speaker, 150W, White. 4 image(s) available. Click on image to view full size.

Key Features

  • Reliable indoor/outdoor performance with IP54 weather resistance for continuous background music, paging and security audio
  • Powerful 150W RMS delivery and 116 dB peak SPL for clear intelligibility in commercial spaces
  • Wide 105° DMT coverage and 6.5" woofer for even, natural sound across large areas — fewer speakers required
  • Built-in 70/100V low-saturation transformers and 8Ω bypass for easy integration into distributed paging and monitoring systems
  • X-Mount quick-install system and QSC Intrinsic Correction for fast deployment and consistent voicing with Q-SYS/CXD platforms

Quick Specifications

Product Model
AD-S6T-WH
Brand Name
QSC
Product Line
AcousticDesign
Product Name
AD-S6T Surface Mount Loudspeaker
View Full Technical Specifications

Product Information Tabs

Overview

Deliver reliable, intelligible audio for commercial AV, paging and security environments with the QSC AD-S6T-WH surface mount speaker. This AcousticDesign 6.5" two-way speaker combines a weather-treated 6.5" woofer and 1" silk dome tweeter with QSC Directivity Matched Transition (DMT) to provide smooth, uniform 105° coverage — ensuring announcements and background music remain clear across lobbies, retail floors, and perimeter monitoring zones. Rated at 150W RMS (116 dB peak) and meeting IP54 for dust and splash resistance, the AD-S6T-WH is engineered for indoor/outdoor installations and long-term durability. Built-in low-saturation 70/100V transformers with an 8Ω bypass make it simple to deploy in distributed audio and security paging systems, while X-Mount hardware streamlines installation and prevents slippage. Advanced voicing via QSC Intrinsic Correction integrates with Q-SYS or CXD amplifiers for system-wide tuning and monitoring. Ideal for retail, hospitality, corporate, and surveillance-enabled environments, the AD-S6T-WH delivers pro-grade audio where clarity and reliability matter. Add it to your next AV or security installation — contact sales to specify or order today.

Features

  • Reliable indoor/outdoor performance with IP54 weather resistance for continuous background music, paging and security audio
  • Powerful 150W RMS delivery and 116 dB peak SPL for clear intelligibility in commercial spaces
  • Wide 105° DMT coverage and 6.5" woofer for even, natural sound across large areas — fewer speakers required
  • Built-in 70/100V low-saturation transformers and 8Ω bypass for easy integration into distributed paging and monitoring systems
  • X-Mount quick-install system and QSC Intrinsic Correction for fast deployment and consistent voicing with Q-SYS/CXD platforms
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticDesign
Product Name AD-S6T Surface Mount Loudspeaker
Product Type Speaker
Product Series AD-S
Manufacturer Part Number AD-S6T-WH
Technical Information
Material Silk Dome
Sensitivity 89dB
Crossover Type 2-way
Application/Usage Background Music, Foreground
Audio
RMS Output Power 150W
Number of Speakers 2
Maximum Frequency Response 20 kHz
Minimum Frequency Response 60Hz
Environmental Conditions
Sound Emission 116 dB
Physical Characteristics
Size 6.5"
Weight 13.6lb
Durability Water Resistant
Enclosure Type Sealed
Product Information
Diameter 6"
Miscellaneous
Indoor/Outdoor Indoor, Outdoor
Environmentally Friendly Yes
Environmental Certification WEEE
