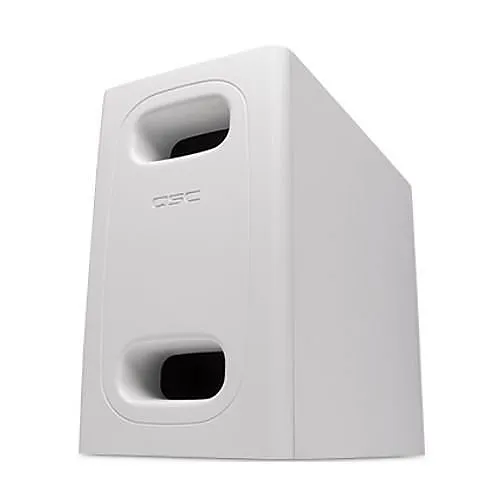

QSC AD-S.SUB-WH AcousticDesign Series 6.5" Dual Voice Coil Surface Subwoofer, 100W, dB, White

SKU: AD-SSUB-WH MPN: AD-S.SUB-WH QSC
Image of QB-ADSSUBWH
Product images for QSC AD-S.SUB-WH AcousticDesign Series 6.5" Dual Voice Coil Surface Subwoofer, 100W, dB, White. 2 image(s) available. Click on image to view full size.

Key Features

  • Deliver deep, controlled low end for clear background music and paging without overpowering the space
  • Dual voice-coil 6.5" driver provides higher output and improved thermal reliability for continuous operation
  • 100W RMS power handling and 45–150 Hz response extend bass impact for small-format installs
  • Flexible wiring: low-Z mono/stereo or low-saturation 70/100V transformer options for distributed audio and paging
  • Secure, professional connections with locking 4‑pole Euroblock and snap-fit magnetic grille for fast serviceability
  • Surface/wall-mountable, weather-resistant enclosure that integrates cleanly into retail, corporate, or security monitoring environments

Quick Specifications

Product Model
AD-S.SUB
Brand Name
QSC
Product Line
AcousticDesign
Product Name
AD-S.SUB 6.5-Inch Dual Voice Coil, Small Format Surface Subwoofer
View Full Technical Specifications

Product Information Tabs

Overview

Bring reliable low-frequency reinforcement to installed audio and security environments with the QSC AD-S.SUB surface subwoofer. Designed as part of QSC’s AcousticDesign Series, this pro subwoofer delivers refined depth and clarity—especially at low playback levels—making it ideal for background music, paging and monitoring in retail, corporate and security/surveillance installations. The 6.5" dual voice-coil driver and 100W RMS power handling provide punch and headroom while maintaining consistent performance; the cabinet delivers useful extension from 45 Hz up to 150 Hz for tight, non-fatiguing bass. Installation is fast and dependable: configurable low-Z mono/stereo operation, low-saturation 70/100V transformer taps, and locking 4‑pole Euroblock connectors simplify wiring for distributed audio and paging systems. Weather‑resistant construction, reversible mounting hardware and snap-fit magnetic grilles keep service time low and aesthetics clean. If you need a compact, reliable subwoofer that integrates with security, surveillance and monitoring audio systems while enhancing music and voice intelligibility, the QSC AD-S.SUB is a versatile choice—contact sales or add to your specification for immediate deployment.

Features

  • Deliver deep, controlled low end for clear background music and paging without overpowering the space
  • Dual voice-coil 6.5" driver provides higher output and improved thermal reliability for continuous operation
  • 100W RMS power handling and 45–150 Hz response extend bass impact for small-format installs
  • Flexible wiring: low-Z mono/stereo or low-saturation 70/100V transformer options for distributed audio and paging
  • Secure, professional connections with locking 4‑pole Euroblock and snap-fit magnetic grille for fast serviceability
  • Surface/wall-mountable, weather-resistant enclosure that integrates cleanly into retail, corporate, or security monitoring environments
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticDesign
Product Name AD-S.SUB 6.5-Inch Dual Voice Coil, Small Format Surface Subwoofer
Product Type Woofer
Product Model AD-S.SUB
Product Series AD-S
Packaged Quantity 1
Manufacturer Part Number AD-S.SUB-WH
Technical Information
Material Paper Cone
Impedance 16 ohms
Sensitivity 86dB
Speaker Size 6.5"
Application/Usage Music
Audio
RMS Output Power 100W
Maximum Frequency Response 150 Hz
Minimum Frequency Response 45Hz
Physical Characteristics
Size 6.50"
Color White
Depth 17"
Width 8.2"
Height 13.8"
Weight 23.60lb
Durability Weather Resistant
Form Factor Surface Mount, Wall Mount
Product Information
Diameter 13.8"
Mount Type Surface Mount, Wall Mount
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Dual voice-coil, Locking 4-pole Euroblock connectors, Low saturation, Reversible rear panel cover, Snap-fit magnetic grills
Indoor/Outdoor Indoor
Environmentally Friendly Yes
Environmental Certification RoHS
