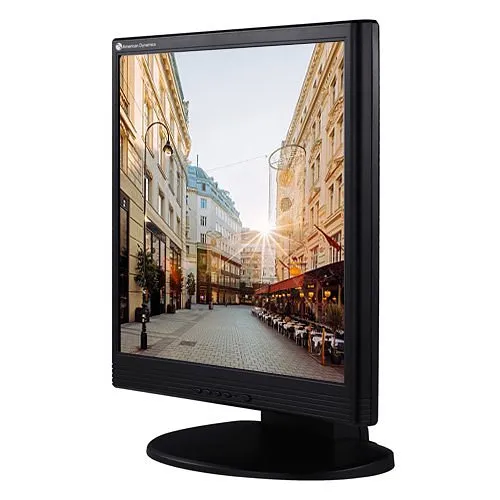

American Dynamics ADLCD17MPB 17" LCD Monitor with 1280x1024, HDMI, VGA, 2xBNC IN with Loop, Hard Glass Protection
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Reliable multi-source monitoring: HDMI, VGA and dual BNC loop inputs let you display DVR, NVR or PC feeds without extra converters
- Durable for control rooms: hard glass protection and a compact 17" design withstand daily use in security environments
- Clear, accurate images: 1280x1024 resolution with 250 cd/m² brightness and 3D de-interlace for crisp surveillance video
- Secure, easy operation: front-panel key lock, PiP (Picture-in-Picture) and auto power recovery reduce downtime and prevent tampering
- Flexible installation: VESA 100 x 100 mounting and low 26W operating power fit wall, ceiling or desktop surveillance setups
Quick Specifications
- Product Model
- ADLCD17MPB
- Brand Name
- American Dynamics
- Product Line
- Professional
- Product Name
- 17" Multiple Input Monitor - Professional Series
Explore the details
Product information
ADLCD17MPB
Overview
Designed for continuous security monitoring, the American Dynamics 17" LCD monitor (ADLCD17MPB) delivers dependable image clarity and flexible connectivity for professional surveillance environments. This video surveillance monitor supports up to 1280 x 1024 resolution and 250 nits brightness, giving control rooms and command centers true-color video and wide 160° viewing angles to spot critical detail. Multiple inputs — HDMI, VGA plus dual CVBS BNC with loop-through — let you connect DVRs, NVRs and PCs simultaneously for seamless integration into existing CCTV and security systems. Built for 24/7 use, the Professional Series includes hard glass protection to resist impacts, a secure front-panel key lock to prevent unauthorized changes, and auto power recovery to bring displays back online after outages. Features like 3D de-interlace, PiP and a compact 17" footprint improve operator efficiency while NDAA compliance supports public sector procurement. Ideal for retail loss prevention, transportation hubs, and enterprise security operations — add the American Dynamics ADLCD17MPB to your monitoring toolkit or contact sales to specify it for your control room.
Features
- Reliable multi-source monitoring: HDMI, VGA and dual BNC loop inputs let you display DVR, NVR or PC feeds without extra converters
- Durable for control rooms: hard glass protection and a compact 17" design withstand daily use in security environments
- Clear, accurate images: 1280x1024 resolution with 250 cd/m² brightness and 3D de-interlace for crisp surveillance video
- Secure, easy operation: front-panel key lock, PiP (Picture-in-Picture) and auto power recovery reduce downtime and prevent tampering
- Flexible installation: VESA 100 x 100 mounting and low 26W operating power fit wall, ceiling or desktop surveillance setups
| General Information | |
|---|---|
| Brand Name | American Dynamics |
| Manufacturer | Johnson Controls |
| Product Line | Professional |
| Product Name | 17" Multiple Input Monitor - Professional Series |
| Product Type | LCD Monitor |
| Product Model | ADLCD17MPB |
| Country of Origin | TW |
| Manufacturer Part Number | ADLCD17MPB |
| Technical Information | |
| Aspect Ratio | 5:4 |
| Response Time | 5.0ms |
| Backlight Technology | CCFL |
| Viewable Screen Size | 17.0" |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 2 |
| Certifications | |
| NDAA Compliant | Yes |
| Display & Graphics | |
| Screen Size | 17" |
| Number of Screens | 1 |
| Energy & Performance | |
| Standby Power Consumption | 1.8W |
| Operating Power Consumption | 26.00W |
| Interfaces/Ports | |
| VGA | Yes |
| HDMI | Yes |
| Physical Characteristics | |
| Depth | 2.10" |
| Width | 14.60" |
| Height | 12.80" |
| Weight | 7.21lb |
| VESA Mount Standard | 100 x 100 |
| VESA Mount Compatible | Yes |
| Product Information | |
| Mount Type | Ceiling Mount, Desktop Mount, Wall Mount |
| Display Screen Type | LCD |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | ADMNM17LCDP |
| Video | |
| Graphics Mode | SXGA |
| Contrast Ratio | 1,000:1 |
| Brightness (Nit) | 250 |
| Maximum Resolution | 1280 x 1024 |
| Miscellaneous | |
| Features | 3D Comb Filter, 3D De-interlace, Auto Power Recovery, Picture in Picture, Security Lock |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
