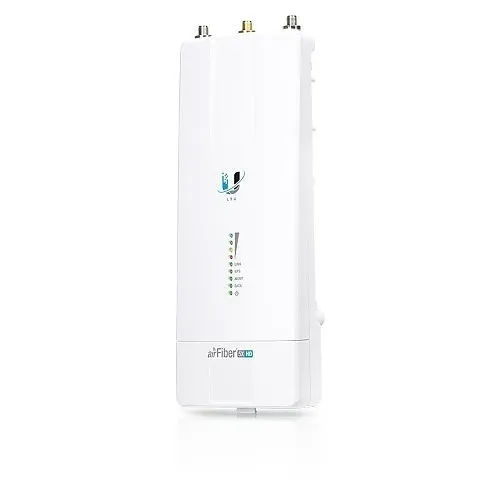

Ubiquiti AF-5XHD-US AirFiber 5XHD PTP Radio, US

Built for mission-critical backhaul, the Ubiquiti AF-5XHD AirFiber 5XHD PTP radio delivers long-range, low-latency links that keep surveillance, security, and enterprise networks connected. This AirFiber backhaul radio uses Ubiquiti’s LTU silicon and xtreme Range Technology to provide industry-leading spectral efficiency and real-world throughput up to 1.34 Gb/s across the 5 GHz band, with a link range rated up to 62 miles when conditions allow. Installers benefit from programmable transmit power (up to +29 dBm), flexible asymmetric TX/RX duty cycles, and configurable channel bandwidths to optimize performance in congested RF environments. Two Ethernet ports support redundant PoE for higher uptime and easy integration with cameras, NVRs, and network switches; Bluetooth setup and tamper alerts simplify field configuration and security. Engineered for outdoor, pole-mounted deployments, the AF-5XHD is a robust choice for ISPs, security integrators, and municipalities that demand high-capacity, low-latency backhaul for monitoring and surveillance systems. Order the AF-5XHD to upgrade your point-to-point links or deploy resilient backhaul for critical security applications.

• Deliver long-range, low-latency PTP backhaul for video, security, and enterprise networking—ideal for surveillance and monitoring links
• LTU radio architecture with up to 1.34 Gb/s real throughput and 5 GHz operation for high-capacity, interference-resistant connections
• Programmable transmit power (up to +29 dBm) and asymmetric TX/RX duty cycles for tuning link performance in challenging RF environments

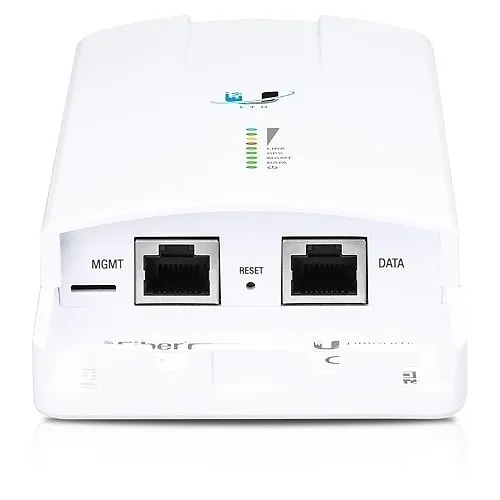

• Dual Ethernet ports with redundant PoE support and built-in Bluetooth for fast, flexible installation and power resiliency
• Tamper and impact alerts plus rugged pole-mount design for reliable outdoor deployment in security, ISP, and municipal networks
