AI NEXT AL-40 Qualified Motion Analysis 100 lb Pet Immune PIR, 50' 40'

SKU: AL-40 AI NEXT by Aleph
Aleph AL-40 Motion Sensor
Product images for AI NEXT AL-40 Qualified Motion Analysis 100 lb Pet Immune PIR, 50' 40'. 5 image(s) available. Click on image to view full size.

Key Features

  • Reduces false alarms from pets up to 100 lb with the included pet-immunity lens, protecting the integrity of your alarm system
  • Qualified Motion Analysis (QMA) and dual-slope temperature compensation for reliable detection in changing environments
  • Rock-solid RFI immunity ensures stable performance near radios, network equipment and other electronics

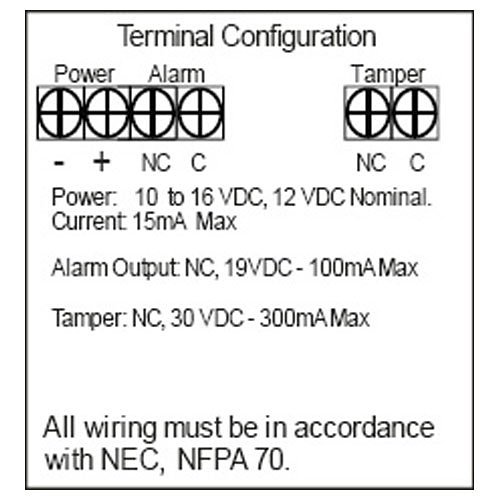

  • Low current draw (approx. 4 mA) and 10.6–16 VDC operation simplify integration into existing security panels

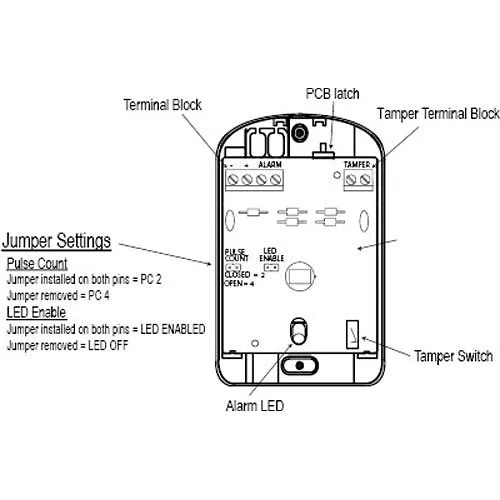

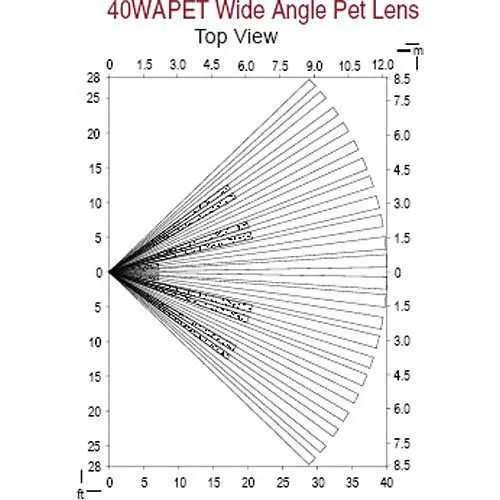

  • Up to 40' motion coverage with selectable pulse count for fine-tuned sensitivity and fewer nuisance triggers

Quick Specifications

Product Model
AL-40
Brand Name
AI NEXT by Aleph
Product Name
AL-40 Motion Sensor
Product Type
Motion Sensor
View Full Technical Specifications

Explore the details

Product information

AL-40

Overview

Protect your site with dependable, pet-tolerant motion detection designed for professional security and surveillance systems. The AI NEXT by Aleph AL-40 PIR motion sensor delivers Qualified Motion Analysis (QMA) and dual-slope temperature compensation so alarms trigger on real threats — not pets, HVAC shifts or radio interference. An optional 100 lb animal immunity lens is included to reduce false alarms in homes, offices and retail spaces, while rock-solid RFI immunity keeps performance steady near wireless devices and network gear. With up to 40' sensing range, selectable pulse-count settings, and a low current draw (~4 mA) on 10.6–16 VDC power, the AL-40 is easy to integrate into existing intrusion detection and monitoring installations. Durable, compact and backed by a 1-year limited warranty, this PIR motion sensor is ideal for residential, commercial and small-business security applications. Add the AL-40 to your surveillance setup to improve alarm accuracy and lower maintenance — order for immediate deployment or contact us for system configuration advice.

Features

  • Reduces false alarms from pets up to 100 lb with the included pet-immunity lens, protecting the integrity of your alarm system
  • Qualified Motion Analysis (QMA) and dual-slope temperature compensation for reliable detection in changing environments
  • Rock-solid RFI immunity ensures stable performance near radios, network equipment and other electronics
  • Low current draw (approx. 4 mA) and 10.6–16 VDC operation simplify integration into existing security panels
  • Up to 40' motion coverage with selectable pulse count for fine-tuned sensitivity and fewer nuisance triggers
14 of 14 specifications
Technical specifications for AI NEXT AL-40 Qualified Motion Analysis 100 lb Pet Immune PIR, 50' 40'
General Information
Brand Name AI NEXT by Aleph
Manufacturer Aleph America Corporation
Product Name AL-40 Motion Sensor
Product Type Motion Sensor
Product Model AL-40
Product Series AL40
Country of Origin CN
Manufacturer Part Number AL-40
Technical Information
Passive Infrared Sensor (PIR) Yes
Maximum Motion Sensing Distance 40'
Physical Characteristics
Color Red
Power Description
Power Source DC Power
Warranty
Limited Warranty 1-Year
Miscellaneous
Features Pet-Tolerance

No matching specifications

Try a different term, such as a connector type or resolution.

Plan your purchase

Is this right for your project?

Confirm the model, required accessories and delivery needs before ordering.

SKU:
AL-40
Manufacturer part:
AL-40
How do I confirm compatibility?

Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.

Ask a product specialist
When will this item ship?

Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.

Shipping, freight and delivery details
What should I know about returns?

Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
