Altronix AL1012ACMCB220 Access Power Controller, 10A 12V DC P/S with ACM8CB, 220V
Image of 4
Key Features
- Delivers uninterrupted access control power with 10A continuous 12VDC capacity and built-in battery backup for zero-voltage switchover during outages
- Streamlines multi-door deployments with eight independently monitored 12V outputs and front-panel LEDs for fast troubleshooting
- Improves life-safety response via FACP interface for emergency egress and alarm monitoring, helping meet regulatory requirements
- Supports both fail-safe and fail-secure lock configurations and works seamlessly with mag locks, electric strikes and door holders
- Lowers maintenance time with battery presence/fail supervision and clear status indicators for reliable commercial security operation
Quick Specifications
- Product Model
- AL1012ACMCB220
- Sector
- Access Control
- Brand Name
- Altronix
- Product Line
- ACM
Frequently Bought Together
Altronix AL1012ACMCB220 Access Power Controller, 10A 12V DC P/S with ACM8CB, 220V
$399.85
2 items selected
Total: $406.94
Explore the details
Product information
AL1012ACMCB220
Overview

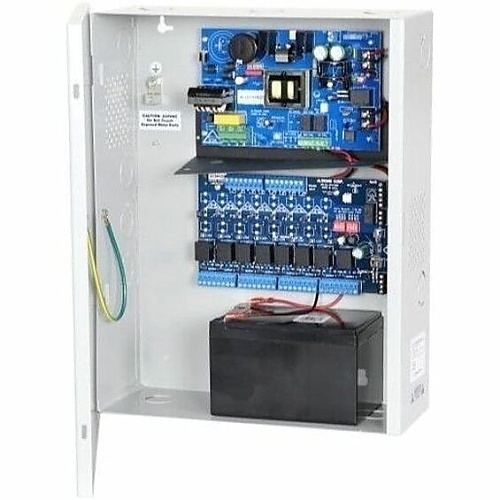

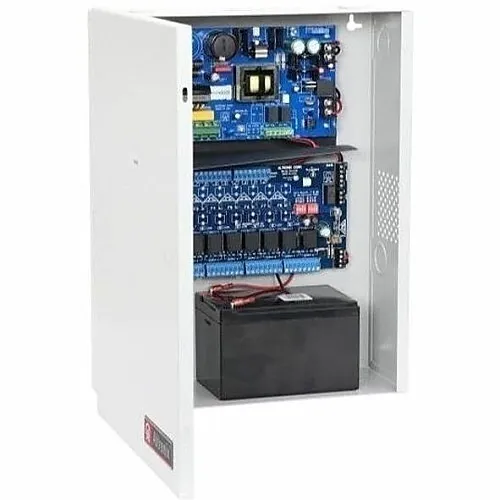

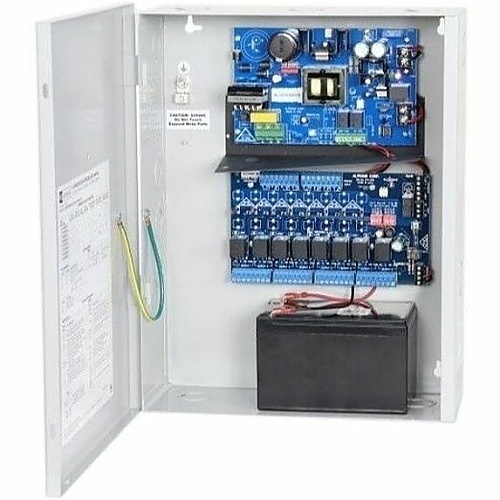

For professional access control installations that demand reliable, always-on power, the Altronix AL1012ACMCB220 access power controller delivers scalable, monitored power where you need it. This rugged Altronix power supply converts 220VAC input to eight independently managed 12VDC outputs, providing a total of 10A continuous current to support mag locks, electric strikes and magnetic door holders across multiple doors. Integrated battery charging and automatic, zero-voltage switchover ensure uninterrupted operation during AC loss, while battery supervision and LEDs simplify servicing and reduce downtime. The built-in FACP interface adds emergency egress and alarm monitoring functionality, enabling coordinated responses with fire alarm control panels and improving overall site safety. Designed for indoor commercial and institutional security systems, the AL1012ACMCB220 supports both fail-safe and fail-secure lock modes and is NDAA compliant for government and enterprise deployments. Ideal for security integrators and facility managers installing access control, surveillance and monitoring systems. Contact our sales team to configure or add the AL1012ACMCB220 to your next access control project.
Features
- Delivers uninterrupted access control power with 10A continuous 12VDC capacity and built-in battery backup for zero-voltage switchover during outages
- Streamlines multi-door deployments with eight independently monitored 12V outputs and front-panel LEDs for fast troubleshooting
- Improves life-safety response via FACP interface for emergency egress and alarm monitoring, helping meet regulatory requirements
- Supports both fail-safe and fail-secure lock configurations and works seamlessly with mag locks, electric strikes and door holders
- Lowers maintenance time with battery presence/fail supervision and clear status indicators for reliable commercial security operation
| General Information | |
|---|---|
| Sector | Access Control |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Product Line | ACM |
| Product Name | AL1012ACMCB220 Power Supply |
| Product Type | Power Supply |
| Product Model | AL1012ACMCB220 |
| Product Series | ACM220 |
| Country of Origin | US |
| Manufacturer Part Number | AL1012ACMCB220 |
| Technical Information | |
| Output Voltage | 12V DC |
| Number of Doors | 8 |
| Certifications | |
| NDAA Compliant | Yes |
| Environmental Conditions | |
| Storage Temperature (T-T) | -4-158°F |
| Operating Temperature (T-T) | 32-120°F |
| Physical Characteristics | |
| Color | Green, Red |
| Depth | 4.50" |
| Width | 12.00" |
| Height | 15.50" |
| Power Description | |
| Input Voltage | 220V AC |
| Output Current | 10.0000A |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Compatibility | Compatible Devices: Mag Locks Electric Strikes Magnetic Door Holders |
| Indoor/Outdoor | Indoor |
