JBL Professional AM5212/26-WH Speaker, 2-Way Full-Range Loudspeaker Syste, White

SKU: AM521226-WH MPN: AM5212/26-WH JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

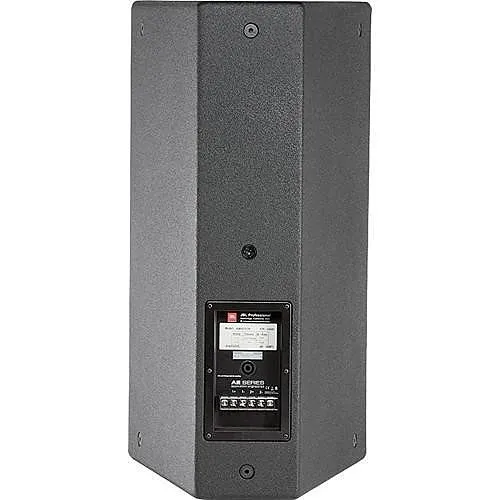

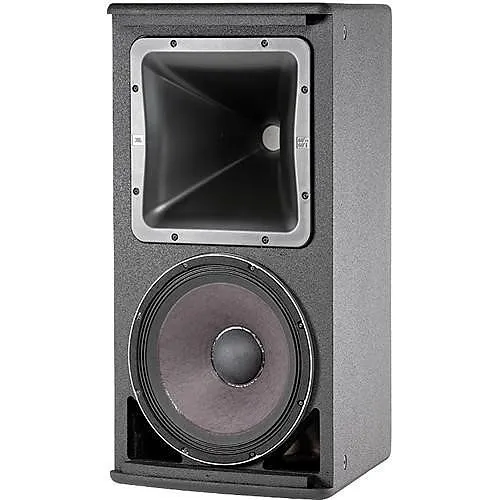

Image of JF-AM521226W
Product images for JBL Professional AM5212/26-WH Speaker, 2-Way Full-Range Loudspeaker Syste, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Deliver clear, intelligible sound and punchy low end for mid-size venues and paging with 300W RMS and a 12" Differential Drive woofer
  • Achieve consistent coverage and flexible placement with a rotatable PT waveguide offering 120° x 60° dispersion
  • Efficient 96 dB sensitivity and 8 Ω design for higher output with less amplifier load—ideal for monitoring and security paging
  • Built for permanent installs: durable birch cabinet with DuraFlex finish, M10 rigging points, and NL4/terminal inputs for quick integration
  • Controlled off-axis response and high-slope crossover improve arrayability and speech clarity for AV, surveillance, and live sound applications

Quick Specifications

Product Model
AM5212/26
Brand Name
JBL Professional
Product Name
AM5212/26 2-Way Loudspeaker System with 1 x 12" LF
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Provide reliable, professional sound for mid-size venues, corporate AV, and security monitoring with the JBL Professional AM5212/26-WH 2-way full-range loudspeaker. This AE Series installed speaker combines a 12" Differential Drive low-frequency driver and a 1.5" compression driver to deliver impactful bass and clear vocal intelligibility across a 43 Hz–18 kHz bandwidth. With 300W RMS power handling and 96 dB sensitivity, the AM5212/26 gives installers efficient SPL performance for paging, surveillance audio distribution, and live reinforcement. The Progressive Transition (PT) waveguide offers broad 120° x 60° coverage and rotates for vertical or horizontal deployment, simplifying system design for distributed audio, monitoring, and security paging. A high-slope passive crossover and well-controlled off-axis response make this cabinet easy to array for even coverage, while a rugged birch enclosure with DuraFlex finish, M10 rigging, and NL4/terminal inputs ensures long-term reliability in permanent installs. Backed by a 5-year limited warranty, the AM5212/26-WH is a versatile choice for houses of worship, conference centers, retail, and security/surveillance audio systems—contact your rep to specify or order.

Features

  • Deliver clear, intelligible sound and punchy low end for mid-size venues and paging with 300W RMS and a 12" Differential Drive woofer
  • Achieve consistent coverage and flexible placement with a rotatable PT waveguide offering 120° x 60° dispersion
  • Efficient 96 dB sensitivity and 8 Ω design for higher output with less amplifier load—ideal for monitoring and security paging
  • Built for permanent installs: durable birch cabinet with DuraFlex finish, M10 rigging points, and NL4/terminal inputs for quick integration
  • Controlled off-axis response and high-slope crossover improve arrayability and speech clarity for AV, surveillance, and live sound applications
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Name AM5212/26 2-Way Loudspeaker System with 1 x 12" LF
Product Type Speaker
Product Model AM5212/26
Product Series AE
Manufacturer Part Number AM5212/26-WH
Technical Information
Material Birch Plywood, Perforated-steel
Impedance 8 ohms
Sensitivity 96dB
Speaker Size 12"
Crossover Type 2-way
Audio
RMS Output Power 300W
Maximum Frequency Response 18 kHz
Minimum Frequency Response 43Hz
Environmental Conditions
Sound Emission 96 dB
Physical Characteristics
Size 11.81"
Color White
Depth 18.03"
Width 14.6"
Height 28.1"
Weight 44.53lb
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 1.5" Compression Driver, 12" Differential Drive Woofer, 120 deg x 60 deg Coverage, 43 Hz to 18 kHz Frequency Response, DuraFlex Finish, M10 Threaded Attachments for Rigging, Medium Power, Light Weight, Full-Range, NL4 speakON and Barrier Strip Inputs, Progressive Transition Waveguide, Rotatable Horn for V/H Deployment
