Warehouse: United States

JBL Professional AM5212/64-WH Speaker, Two-Way Full Range Loudspeaker, White

SKU: AM521264-WH MPN: AM5212/64-WH JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

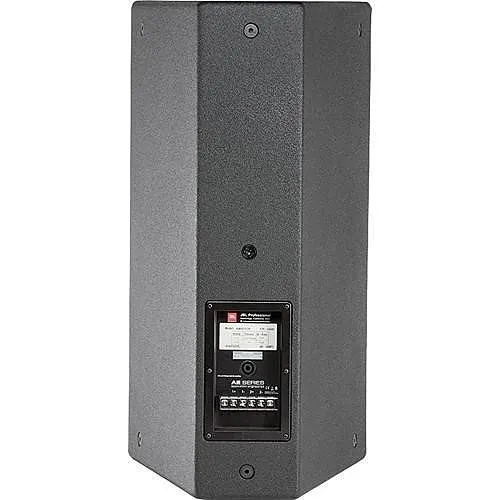

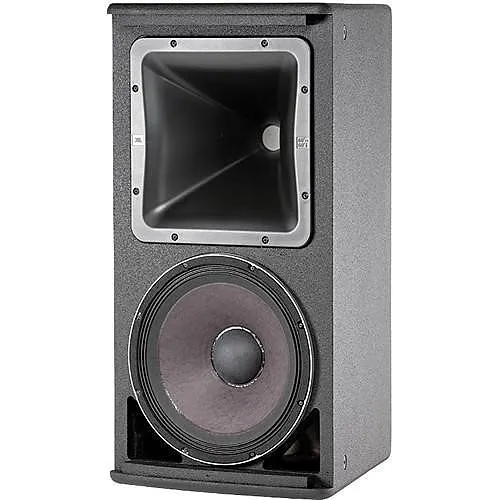

Image of JF-AM521264W
Product images for JBL Professional AM5212/64-WH Speaker, Two-Way Full Range Loudspeaker, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Deliver consistent, high-impact sound for live venues and paging: 300W RMS power and 115 dB sensitivity ensure clear intelligibility for speech and music.
  • Flexible coverage and deployment: rotatable PT waveguide with controlled 60° x 40° dispersion supports vertical or horizontal mounting for easy arraying and targeted monitoring.
  • Tight low end and detailed highs: JBL Differential Drive® 12" woofer plus 1.5" compression driver produce full-range response (43 Hz–18 kHz) for balanced playback.
  • Installation-ready for pro AV and security systems: NL4 speakON and barrier-strip inputs, M10 rigging points and an 8 Ω load simplify integration and rigging.
  • Durable, serviceable design: plywood cabinet with DuraFlex finish and a 5-year limited warranty reduces lifecycle costs and downtime in commercial and surveillance installations.

Quick Specifications

Product Model
AM5212/64
Brand Name
JBL Professional
Product Line
Professional
Product Name
AM5212/64 2-Way Loudspeaker System with 1 x 12" LF
View Full Technical Specifications

Product Information Tabs

Overview

Optimize your venue or facility with reliable, pro-grade sound — the JBL Professional AM5212/64-WH two-way full-range loudspeaker is built for clear reinforcement, paging and monitoring in demanding commercial and security environments. This JBL Professional speaker combines a Differential Drive® 12" low-frequency driver and a 1.5" compression driver to deliver 300W RMS of dependable power and a wide 43 Hz–18 kHz frequency range for accurate speech and music reproduction. The rotatable Progressive Transition (PT) waveguide provides controlled 60° x 40° coverage so you can tailor dispersion for horizontal or vertical deployments, improving intelligibility for public address, surveillance monitoring rooms, and corporate AV systems. High sensitivity (115 dB) and an 8-ohm impedance mean efficient amplifier use, while NL4 speakON and barrier-strip inputs plus M10 rigging points speed installation and integration into existing networking and security audio chains. With a rugged DuraFlex finish and a 5-year limited warranty, the AM5212/64-WH offers long-term value for installers and system integrators. Ideal for houses of worship, retail, arenas, and security paging — add this JBL pro speaker to your next project for dependable, professional-grade audio.

Features

  • Deliver consistent, high-impact sound for live venues and paging: 300W RMS power and 115 dB sensitivity ensure clear intelligibility for speech and music.
  • Flexible coverage and deployment: rotatable PT waveguide with controlled 60° x 40° dispersion supports vertical or horizontal mounting for easy arraying and targeted monitoring.
  • Tight low end and detailed highs: JBL Differential Drive® 12" woofer plus 1.5" compression driver produce full-range response (43 Hz–18 kHz) for balanced playback.
  • Installation-ready for pro AV and security systems: NL4 speakON and barrier-strip inputs, M10 rigging points and an 8 Ω load simplify integration and rigging.
  • Durable, serviceable design: plywood cabinet with DuraFlex finish and a 5-year limited warranty reduces lifecycle costs and downtime in commercial and surveillance installations.
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Line Professional
Product Name AM5212/64 2-Way Loudspeaker System with 1 x 12" LF
Product Type Speaker
Product Model AM5212/64
Manufacturer Part Number AM5212/64-WH
Technical Information
Material Plywood, Steel
Impedance 8 ohms
Sensitivity 115dB
Speaker Size 12"
Crossover Type 2-way
Audio
RMS Output Power 300W
Maximum Frequency Response 18 kHz
Minimum Frequency Response 43Hz
Environmental Conditions
Sound Emission 115 dB
Physical Characteristics
Size 11.81"
Color White
Depth 18.03"
Width 14.6"
Height 28.1"
Weight 44.53lb
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 1.5" Compression Driver, 12" Differential Drive Woofer, 120 deg x 60 deg Coverage, 43 Hz to 18 kHz Frequency Response, DuraFlex Finish, M10 Threaded Attachments for Rigging, Medium Power, Light Weight, Full-Range, NL4 speakON and Barrier Strip Inputs, Progressive Transition Waveguide, Rotatable Horn for V/H Deployment
Country of Origin MX
