Warehouse: United States

JBL Professional AM5212/66 12" 2-Way Loudspeaker System, Black

SKU: AM521266 MPN: AM5212/66 JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

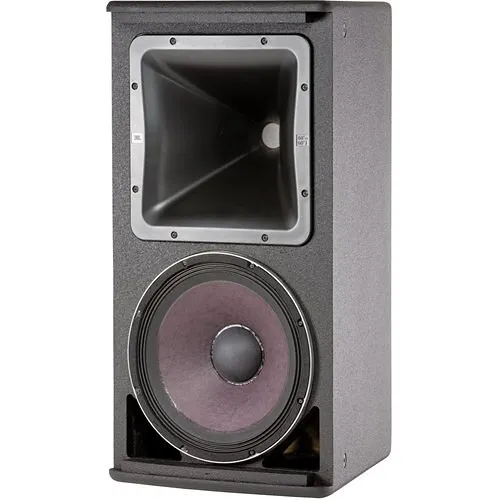

Image of JF-AM521266
Product images for JBL Professional AM5212/66 12" 2-Way Loudspeaker System, Black. 2 image(s) available. Click on image to view full size.

Key Features

  • Deliver crystal-clear, high-impact sound for live venues and installations with 300W RMS power and 114dB sensitivity
  • Consistent 60°x60° coverage and rotatable PT waveguide for predictable pattern control in vertical or horizontal mounting
  • 12" Differential Drive low-frequency driver and 1.5" compression HF driver for tight bass and transparent highs across 43Hz–20kHz
  • Switchable bi-amp/passive modes and FIR tuning for optimized frequency/phase response and easier system integration
  • Durable birch plywood enclosure and steel hardware built for touring, houses of worship, clubs, and permanent security/paging systems

Quick Specifications

Product Model
AM5212/66
Brand Name
JBL Professional
Product Line
Professional
Product Name
AM5212/66 2-Way Loudspeaker System with 1 x 12" LF
View Full Technical Specifications

Product Information Tabs

Overview

Put professional, reliable sound where it matters most. The JBL Professional AM5212/66 12" 2-way loudspeaker system is engineered to deliver punchy low end and articulate highs in both portable and fixed installations — from live clubs and theaters to auditoriums and security paging systems. With a 12" Differential Drive LF driver, 1.5" compression HF driver, and 300W RMS power handling, the AM5212/66 reproduces content cleanly from 43Hz up to 20kHz while maintaining 60°x60° coverage for consistent audience experience.

Installation is simplified by the rotatable PT waveguide and switchable bi-amp/passive operation; built-in FIR tuning improves frequency and phase alignment so arrays and multispeaker deployments sound coherent. The rugged birch plywood enclosure and steel fittings stand up to touring and permanent applications, making this speaker a practical choice for live sound, themed entertainment, worship, and even security and monitoring paging where intelligibility is critical. Specify the AM5212/66 when you need dependable SPL, pattern control, and system flexibility — contact us for configuration guidance or add it to your next pro audio deployment.

Features

  • Deliver crystal-clear, high-impact sound for live venues and installations with 300W RMS power and 114dB sensitivity
  • Consistent 60°x60° coverage and rotatable PT waveguide for predictable pattern control in vertical or horizontal mounting
  • 12" Differential Drive low-frequency driver and 1.5" compression HF driver for tight bass and transparent highs across 43Hz–20kHz
  • Switchable bi-amp/passive modes and FIR tuning for optimized frequency/phase response and easier system integration
  • Durable birch plywood enclosure and steel hardware built for touring, houses of worship, clubs, and permanent security/paging systems
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Line Professional
Product Name AM5212/66 2-Way Loudspeaker System with 1 x 12" LF
Product Type Speaker
Product Model AM5212/66
Manufacturer Part Number AM5212/66
Technical Information
Material Birch Plywood, Steel
Impedance 8 ohms
Sensitivity 114dB
Speaker Size 12"
Crossover Type 2-way
Application/Usage Auditoriums, Dance Clubs, Live Clubs, Performing Arts Facilities, Sports Facilities, Theatrical Sound Design, Themed Entertainment Venues, Worship Facilities
Audio
RMS Output Power 300W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 43Hz
Physical Characteristics
Size 11.81"
Color Black
Depth 18.03"
Width 14.6"
Height 28.1"
Weight 44.53lb
Warranty
Limited Warranty 5-Year
Miscellaneous
Country of Origin MX
