JBL Professional AM5215/64 2-Way Loudspeaker System with 1x15" LF, Black

SKU: AM521564 MPN: AM5215/64 JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

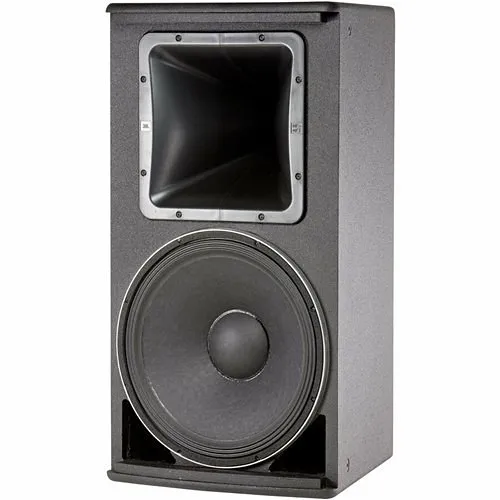

Image of JF-AM521564
Product images for JBL Professional AM5215/64 2-Way Loudspeaker System with 1x15" LF, Black. 2 image(s) available. Click on image to view full size.

Key Features

  • Delivers clear, intelligible paging and music with a 15-inch low-frequency driver and JBL Differential Drive for impactful sound and speech clarity
  • Rotatable 60° x 40° PT waveguide for predictable coverage and flexible vertical or horizontal mounting across surveillance and monitoring zones
  • Lightweight, weather-resistant enclosure reduces installation time and withstands indoor/outdoor pro AV and security deployments
  • Bi-amp/passive switchable design and high-slope crossover minimize band overlap for low distortion in arrays and networked speaker systems
  • High 98 dB sensitivity and 350W RMS handling provide reliable SPL for medium-power venues, perimeter paging, and monitoring applications

Quick Specifications

Product Model
AM5215/64
Brand Name
JBL Professional
Product Name
AM5215/64 2-Way Loudspeaker System with 1 x 15" LF
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Deliver reliable, high-impact sound where intelligibility and control matter most. The JBL Professional AM5215/64 2-way loudspeaker system combines a 15-inch Differential Drive low-frequency driver with a 1.5-inch compression driver and rotatable PT waveguide to produce clean, focused coverage for medium venues, monitoring rooms, and security paging. Rated at 350W RMS with 98 dB sensitivity and a 41 Hz to 18 kHz frequency range, the AM5215/64 gives you the headroom for speech and music playback while maintaining low distortion and excellent off-axis response for arrayable installations.

Engineered for pro AV and security integrators, its weather-resistant enclosure, lightweight construction, and bi-amp/passive switching simplify deployment across permanent and temporary installations. The well-controlled 60° x 40° pattern and high-slope passive crossover reduce overlap and provide consistent SPL for surveillance, perimeter monitoring, public address, and networked audio systems. Specify the AM5215/64 when you need dependable coverage, speech clarity, and installation flexibility—contact your JBL Professional dealer or add it to your project quote today.

Features

  • Delivers clear, intelligible paging and music with a 15-inch low-frequency driver and JBL Differential Drive for impactful sound and speech clarity
  • Rotatable 60° x 40° PT waveguide for predictable coverage and flexible vertical or horizontal mounting across surveillance and monitoring zones
  • Lightweight, weather-resistant enclosure reduces installation time and withstands indoor/outdoor pro AV and security deployments
  • Bi-amp/passive switchable design and high-slope crossover minimize band overlap for low distortion in arrays and networked speaker systems
  • High 98 dB sensitivity and 350W RMS handling provide reliable SPL for medium-power venues, perimeter paging, and monitoring applications
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Name AM5215/64 2-Way Loudspeaker System with 1 x 15" LF
Product Type Speaker
Product Model AM5215/64
Manufacturer Part Number AM5215/64
Technical Information
Impedance 8 ohms
Sensitivity 98dB
Speaker Size 15"
Crossover Type 2-way
Audio
RMS Output Power 350W
Maximum Frequency Response 18 kHz
Minimum Frequency Response 41Hz
Physical Characteristics
Size 15"
Color Black
Depth 19.8"
Width 16.5"
Height 30.8"
Weight 55.1lb
Durability Weather Resistant
Enclosure Type Loudspeaker
Miscellaneous
Features 2408H-1 High-Frequency Compression Driver, 265H-1 Differential Drive® Low-Frequency Driver, 60° x 40° Coverage, Available in Black, White and WRC/WRX finishes, Bi-Amp/Passive Switchable, Large PT Progressive Transition waveguide for excellent pattern control and low distortion, Rotatable waveguide for vertical or horizontal orientation
Country of Origin MX
