JBL Professional AM7212/64 12" High Power 2-Way Loudspeaker with Rotatable Horn, Black

SKU: AM721264 MPN: AM7212/64 JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

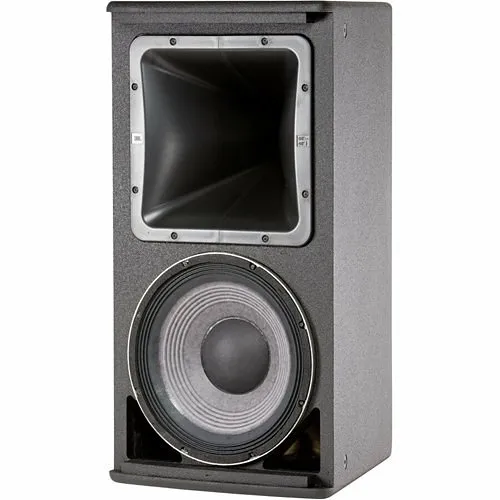

Image of JF-AM721264
Product images for JBL Professional AM7212/64 12" High Power 2-Way Loudspeaker with Rotatable Horn, Black. 2 image(s) available. Click on image to view full size.

Key Features

  • Delivers consistent, intelligible sound across large areas with 600W RMS power for reliable public address and paging
  • Rotatable 60°x40° waveguide enables flexible vertical or horizontal mounting to match venue coverage needs
  • 12in Differential Drive low-frequency driver and 2432H compression driver provide wideband response (42Hz–18kHz) and high sensitivity for clear voice and music
  • Bi-amp/passive modes with FIR tuning optimize frequency and phase response for improved speech intelligibility in security, surveillance, and monitoring systems
  • Rugged birch-plywood enclosure and perforated-steel grille built for permanent installations with a 5-year limited warranty

Quick Specifications

Product Model
AM7212/64
Brand Name
JBL Professional
Product Name
AM7212/64 High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

When consistent, high-impact audio is mission-critical, the JBL Professional AM7212/64 pro speaker delivers the coverage and clarity installers and integrators expect. This 2-way loudspeaker combines a 12in Differential Drive low-frequency driver with a 2432H compression driver and a large Progressive Transition waveguide to produce clear voice and music reproduction at up to 600W RMS. The 60°x40° rotatable horn gives system designers flexibility to orient the array for optimum coverage in either vertical or horizontal mounting, while a 42Hz–18kHz frequency range and 95dB sensitivity ensure intelligibility across public address, AV, and security paging applications.

For surveillance and monitoring environments where speech clarity matters, the AM7212/64’s well-controlled off-axis response and switchable bi-amp/passive operation with FIR tuning reduce band overlap and improve arrayability. Built for installed sound, the durable birch-plywood enclosure and steel grille support long-term deployments backed by a 5-year limited warranty. Ideal for transit hubs, stadiums, houses of worship, corporate facilities, and security/monitoring systems—specify the AM7212/64 for dependable, professional sound and contact us to configure it for your installation.

Features

  • Delivers consistent, intelligible sound across large areas with 600W RMS power for reliable public address and paging
  • Rotatable 60°x40° waveguide enables flexible vertical or horizontal mounting to match venue coverage needs
  • 12in Differential Drive low-frequency driver and 2432H compression driver provide wideband response (42Hz–18kHz) and high sensitivity for clear voice and music
  • Bi-amp/passive modes with FIR tuning optimize frequency and phase response for improved speech intelligibility in security, surveillance, and monitoring systems
  • Rugged birch-plywood enclosure and perforated-steel grille built for permanent installations with a 5-year limited warranty
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Name AM7212/64 High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn
Product Type Speaker
Product Model AM7212/64
Manufacturer Part Number AM7212/64
Technical Information
Material Birch Plywood, Foam, Perforated-steel
Impedance 8 ohms
Sensitivity 95dB
Speaker Size 12"
Crossover Type 2-way
Audio
RMS Output Power 600W
Maximum Frequency Response 18 kHz
Minimum Frequency Response 42Hz
Physical Characteristics
Size 12"
Color Black
Depth 18"
Width 14.5"
Height 28"
Weight 51 lb
Warranty
Limited Warranty 5-Year
