JBL Professional AM7212/95 12" High Power 2-Way Loudspeaker with Rotatable Horn, Black

SKU: AM721295 MPN: AM7212/95 JBL Professional
Image of JF-AM721295

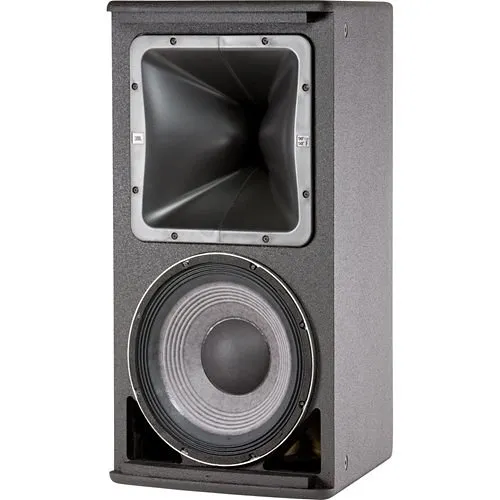

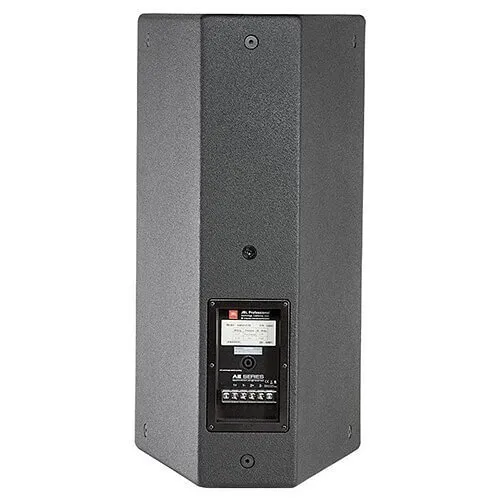

Product images for JBL Professional AM7212/95 12" High Power 2-Way Loudspeaker with Rotatable Horn, Black. 3 image(s) available. Click on image to view full size.

Key Features

  • Powerful 1000W RMS output delivers clear, reliable audio for large venues and fixed installations
  • Rotatable 90° x 50° horn provides consistent horizontal or vertical coverage for flexible mounting
  • 12in Differential Drive low-frequency driver and compression HF driver for punchy bass and articulate highs
  • Rugged, multi-ply birch enclosure with DuraFlex finish and M10 rigging points simplifies long-term installation
  • Excellent off-axis control and FIR-tunable bi-amp/passive modes improve arrayability and system integration

Quick Specifications

Product Model
AM7212/95
Brand Name
JBL Professional
Product Name
High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Designed for demanding live and installed sound environments, the JBL Professional AM7212/95 2-way loudspeaker puts consistent, high-impact audio where you need it. This pro speaker combines a 12in Differential Drive low-frequency driver with a compression high-frequency driver and a rotatable 90° x 50° waveguide to deliver even coverage whether mounted vertically or horizontally. With 1000W RMS capability, a wide 42Hz–18kHz frequency range and 95dB sensitivity, the AM7212/95 fills auditoriums, clubs, houses of worship and sports facilities with clarity and authority.

Installers and systems integrators benefit from a braced, multi-ply birch enclosure, internal grille protection and fifteen M10 rigging points for secure, flexible mounting. High-slope passive networks and bi-amp/FIR tuning options minimize band overlap and preserve phase integrity, improving array performance and intelligibility for paging, monitoring and security/ surveillance applications. Backed by JBL Professional reliability and a 5-year limited warranty, this speaker is engineered to perform in both touring and permanent installations. Specify the AM7212/95 for pro audio, paging and monitoring systems—contact your dealer to configure for your next project.

Features

  • Powerful 1000W RMS output delivers clear, reliable audio for large venues and fixed installations
  • Rotatable 90° x 50° horn provides consistent horizontal or vertical coverage for flexible mounting
  • 12in Differential Drive low-frequency driver and compression HF driver for punchy bass and articulate highs
  • Rugged, multi-ply birch enclosure with DuraFlex finish and M10 rigging points simplifies long-term installation
  • Excellent off-axis control and FIR-tunable bi-amp/passive modes improve arrayability and system integration
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Name High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn
Product Type Speaker
Product Model AM7212/95
Manufacturer Part Number AM7212/95
Technical Information
Impedance 8 ohms
Sensitivity 95dB
Speaker Size 12"
Crossover Type 2-way
Application/Usage Auditoriums, Dance Clubs, Live Clubs, Performing Arts Facilities, Sports Facilities, Theatrical Sound Design, Themed Entertainment Venues, Worship Facilities
Audio
RMS Output Power 1000W
Maximum Frequency Response 18 kHz
Minimum Frequency Response 42Hz
Physical Characteristics
Color Black
Depth 18"
Width 14.5"
Height 28"
Weight 51lb
Warranty
Limited Warranty 5-Year
